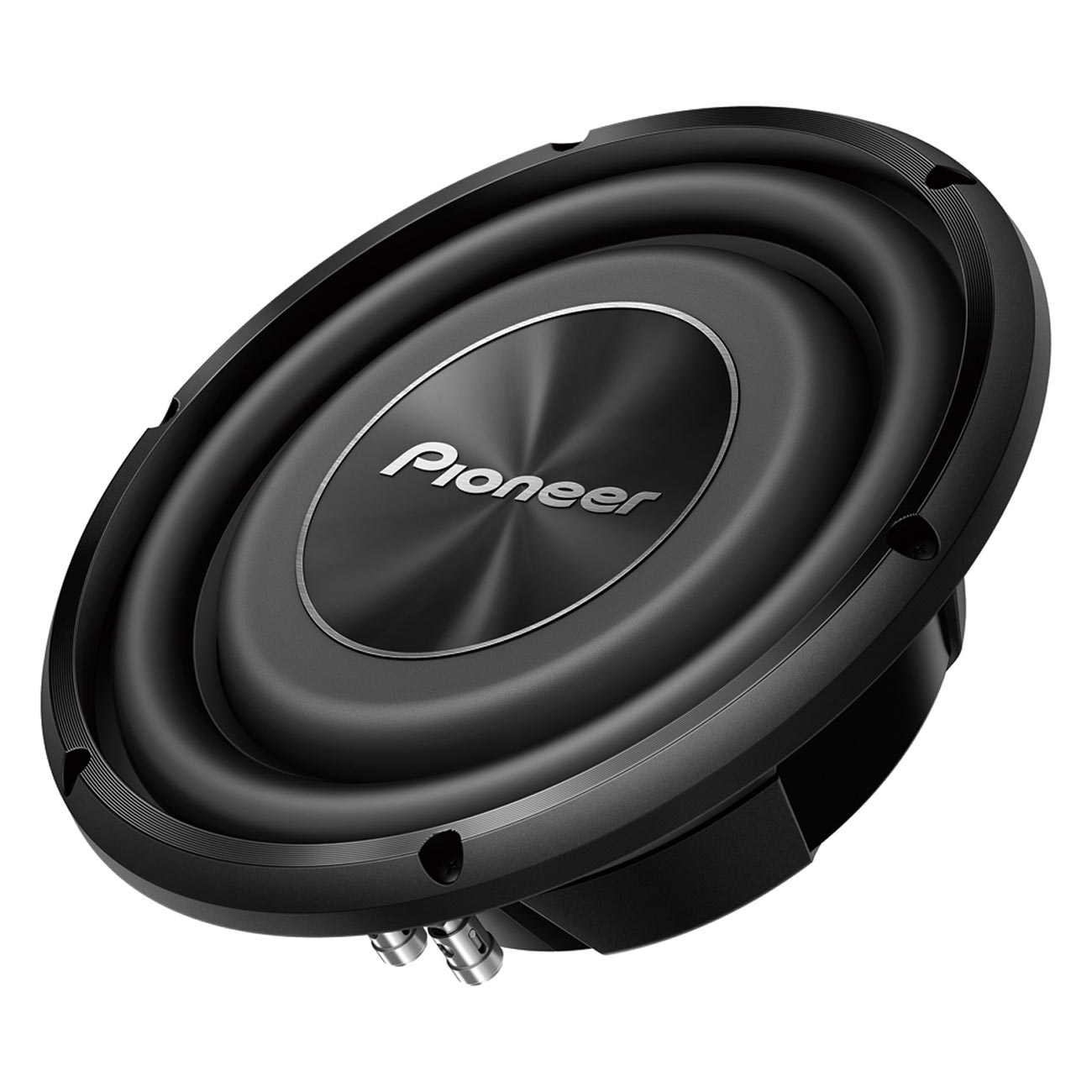

Pioneer 10″ Shallow Mount Woofer, 1200W Max / 300W RMS, Single 4 Ohm Voice Coil
1200 Watts Max. Power / 300 Watts Nominal Power
10″ Glass-fiber & Mica reinforced IMPP™ Cone

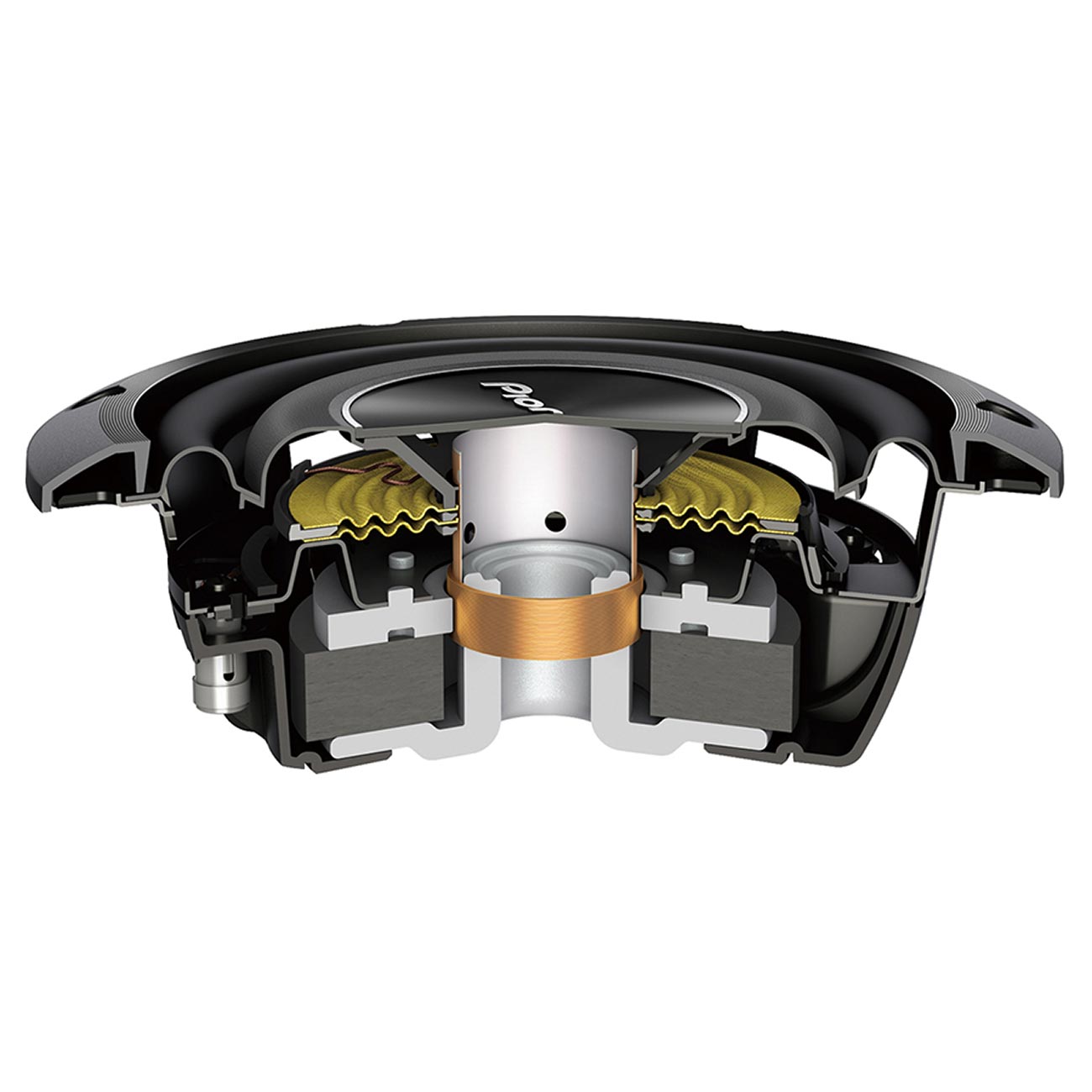

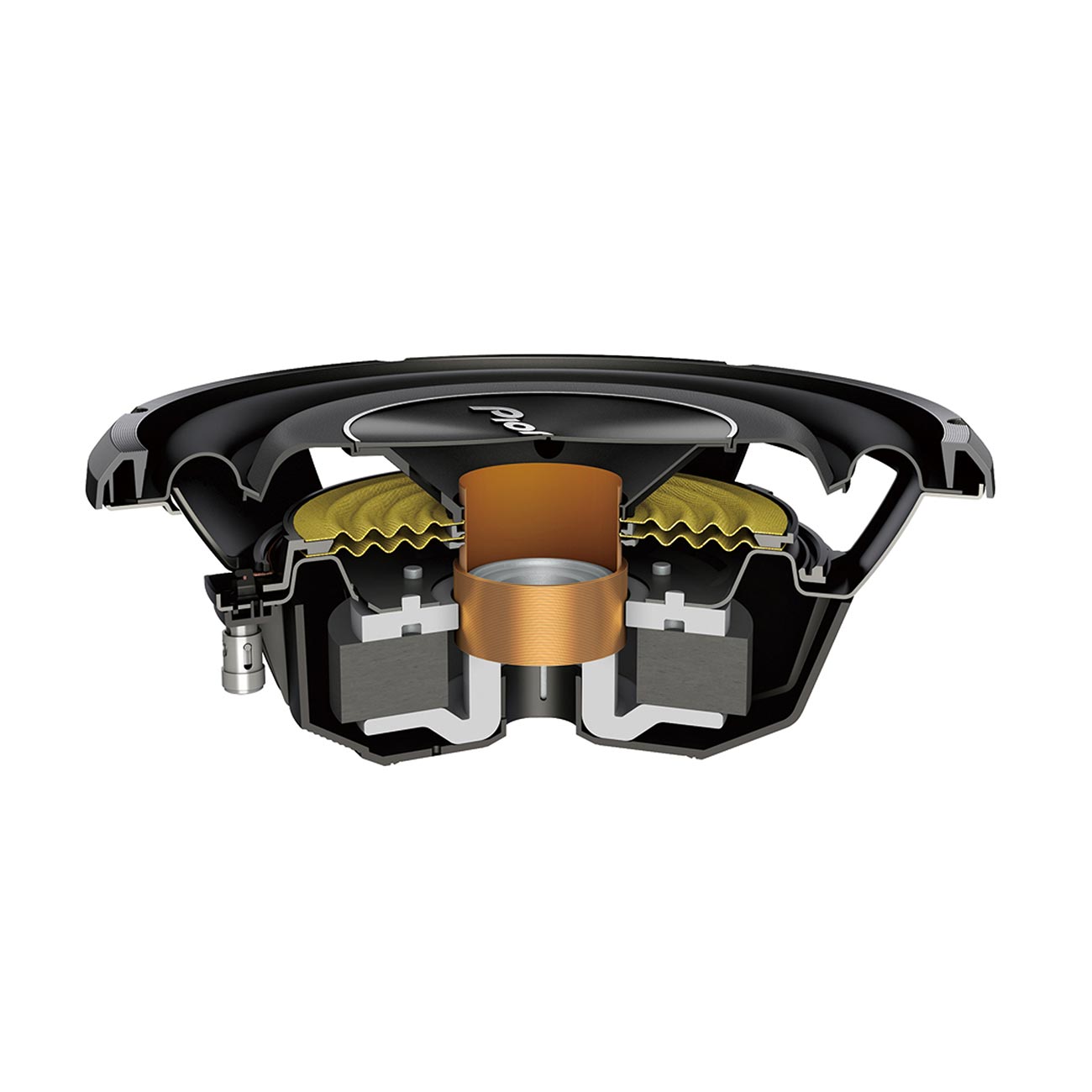

Rubber Surround & Aramid-fiber dual-spider design
Frequency range: 20 Hz – 900 Hz
Speaker Impedance: 4 ohms
Speaker Efficiency: 85 dB (1W/1M)
Recommended Box volume : 0.6cu.ft. (sealed)
CarSoundFit
Mounting depth: 3-3/8”
Cut Out dimensions: 9″, 22.86cm
Equivalent Compliance (VAS): 17.9 Liters, 0.63 Cu. Ft
Free Air ResoNAnce (Fs): 38
Linear Excursion (Xmax): 8.3, 0.33″
Port Diameter: 7.62cm, 3″
Port Length: 7-1/2″, 19.05cm
Recommended Ported Box Internal volume: 17 Liters, 0.6 Cu. Ft.
Recommended Sealed Enclosure Volume: 0.6 Cu Ft, 17 Liters
Subwoofer Grille: UD-10GL Sold Separately
Total Speaker “Q” (Qts): 0.83
Basket Material: Metal

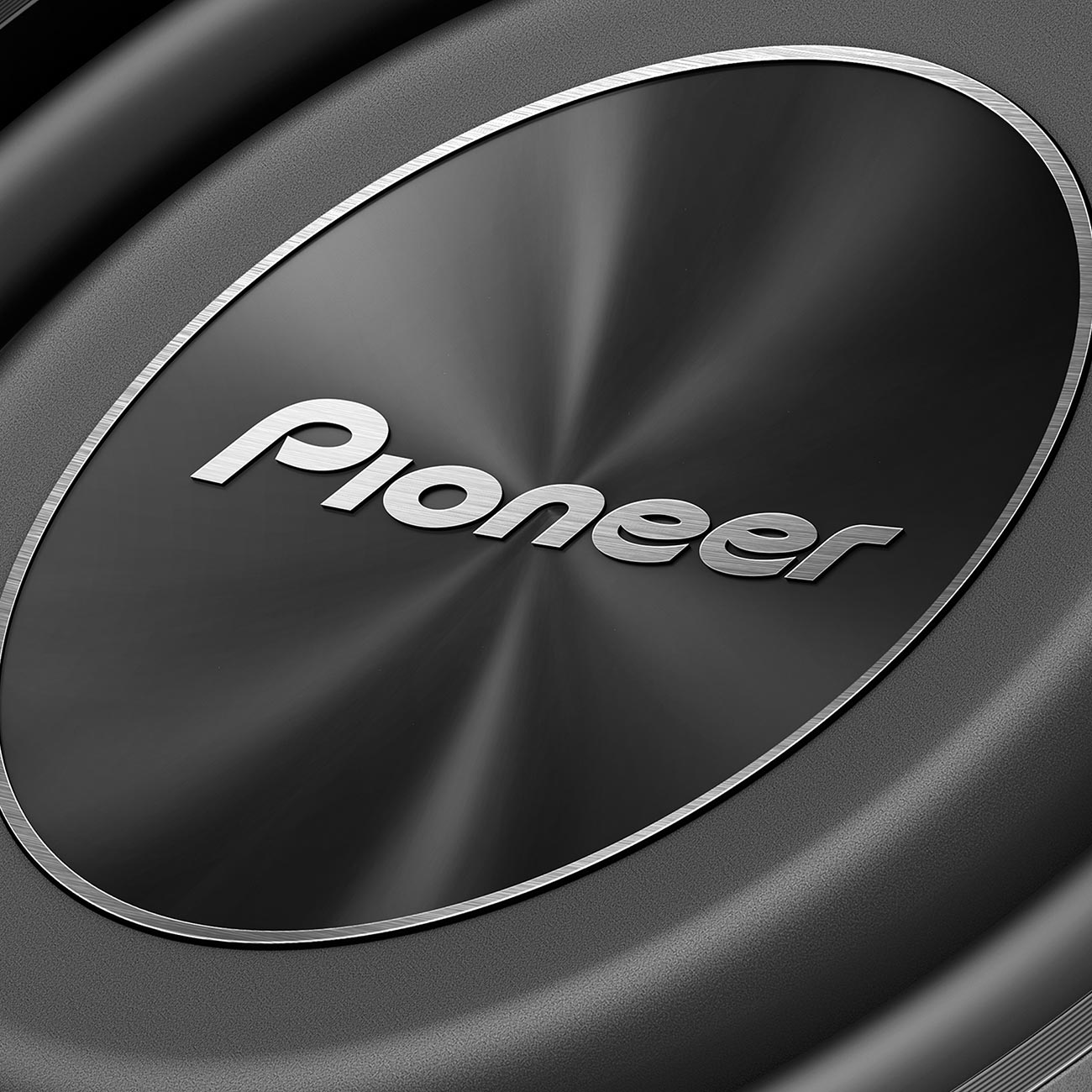

Center Cap Material: ABS
Cone Material: Carbon and Mica reinforced Injected Molded Polypropylene – IMPP
Custom Fit Basket: Yes
Damper: Poly cotton
Gasket: Polypropylene
Installation Ring: Polypropylene
Magnet Material: Ferrite
Magnet Weight: 43.4 oz
Surround Material: Rubber
Surround Type: Rolled
Voice Coil Bobbin: Aluminum
Voice Coil Type: Single Voice Coil 4-ohm
Voice Coil wire: Copper

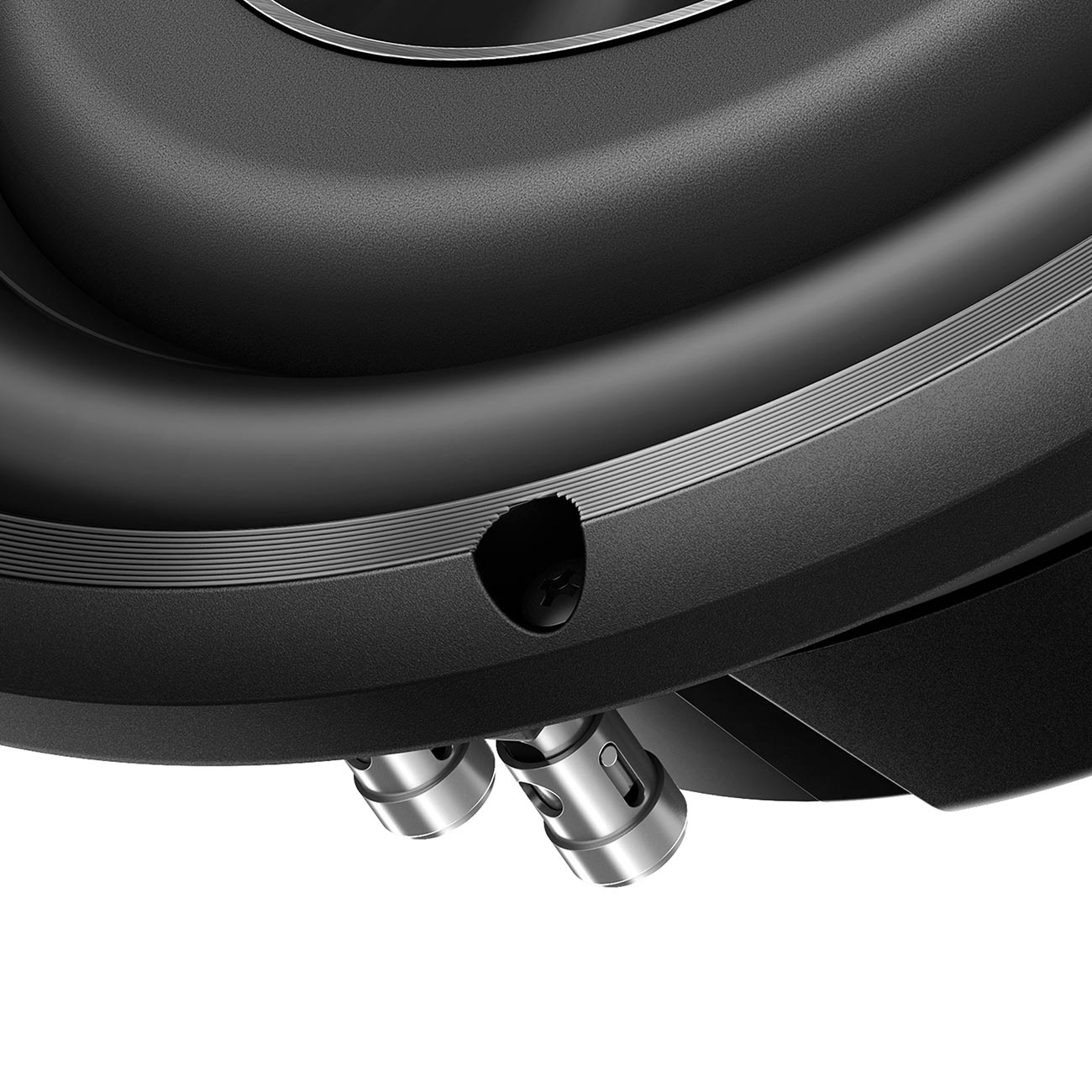

Wire Terminals: Push Type
