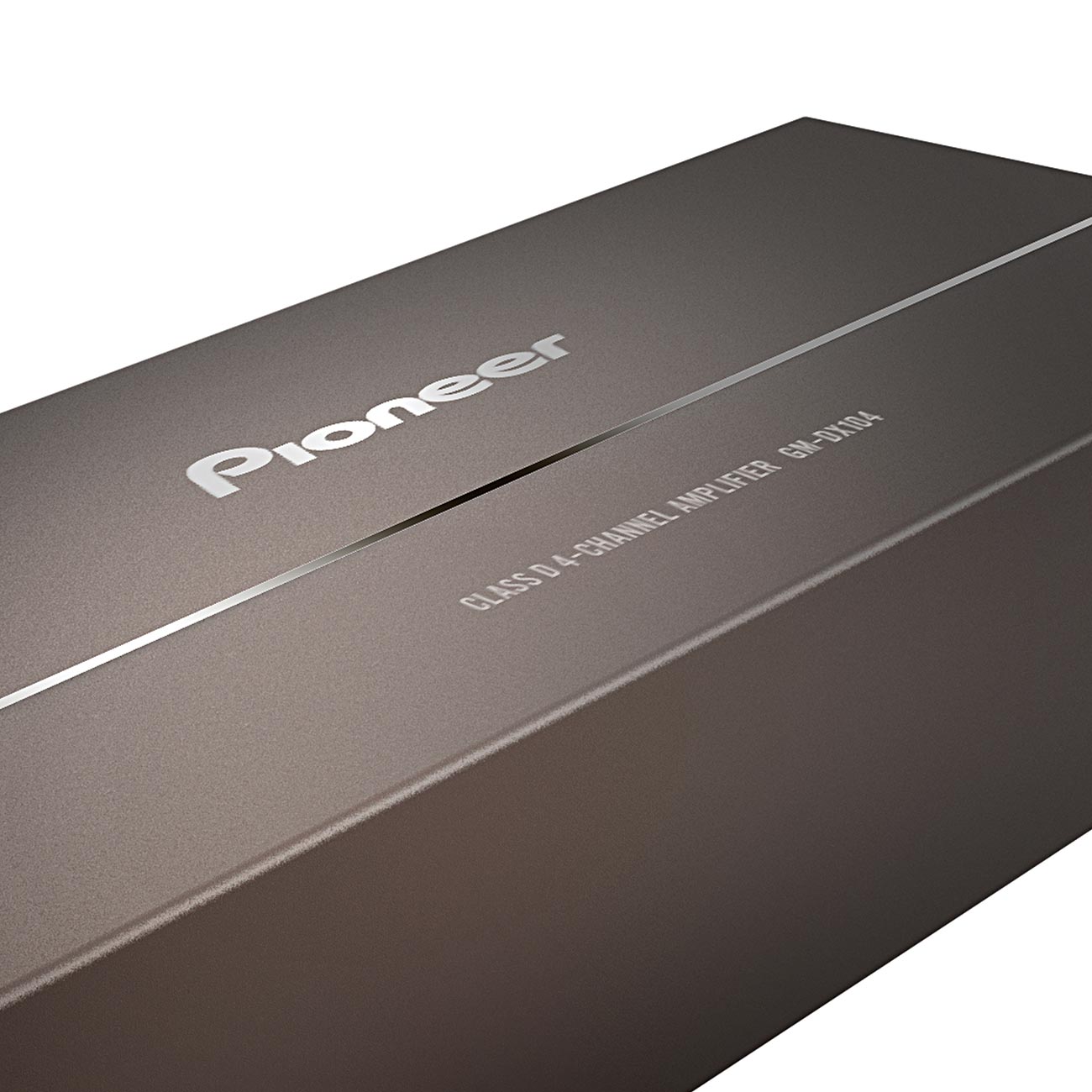

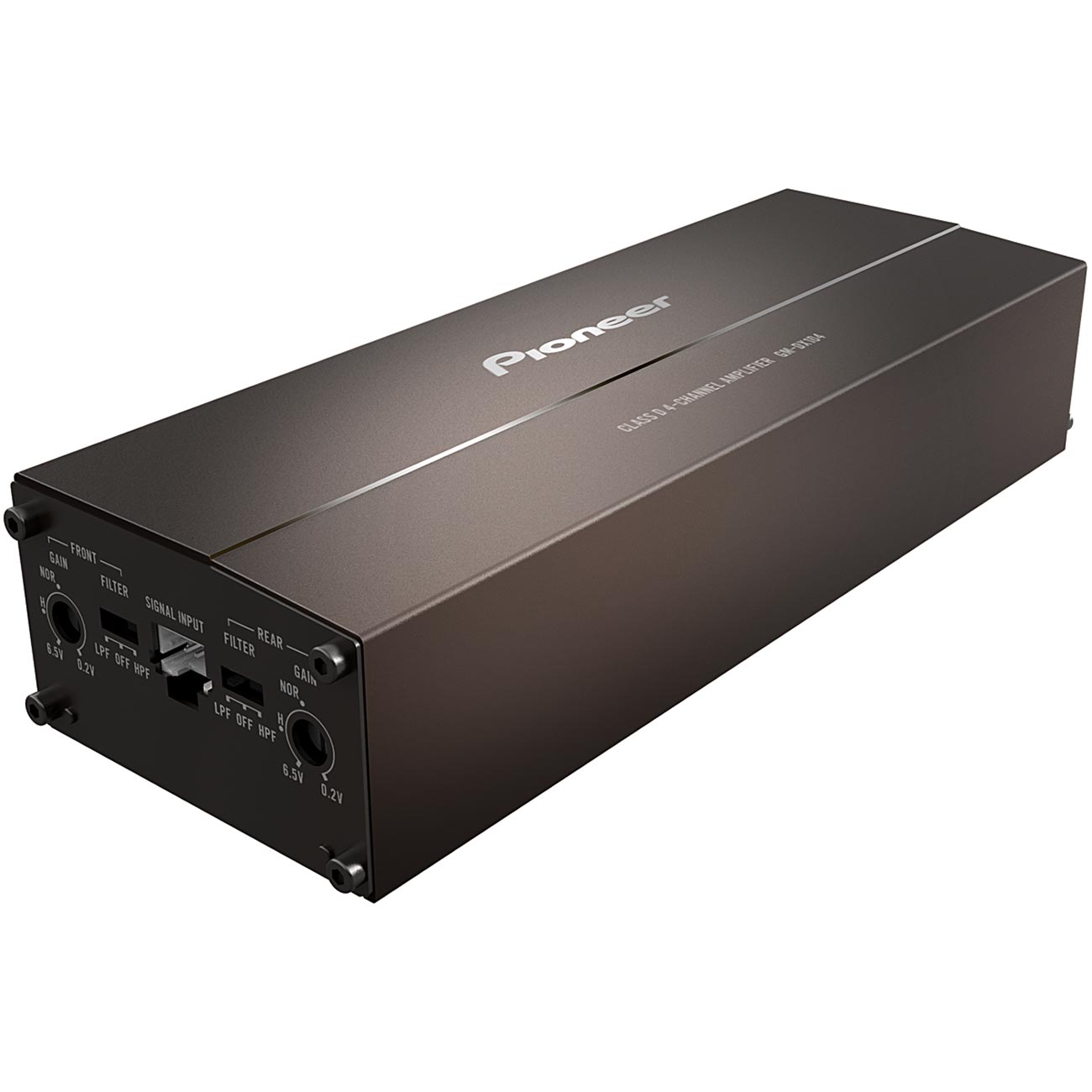

Pioneer 4 Channel Amplifier, 400W Max
4 x 45 Watts RMS @ 4 ohms (1%THD)
4 x 100 Watts MAX @ 4 ohms (1%THD)
4 x 100 Watts (4 Ohm)
2 x 200 Watts (4 Ohm Bridged)
(W x H x L) 2.6″ x 1.5″ x 9.3″
Continuous Power
4 x 45W RMS @ 4 Ohms
4 x 45W RMS @ 2 Ohms
2 x 90W RMS @ 4 Ohms (Bridged)
Average Current Consumption (Amps X #Ch)
1.6 A (4 Ohms x 4ch)
1.6 A (2 Ohms x 4ch)
1.6 A (4 Ohms x 2ch Bridged)
Fuse Rating: 15A
Class FD
Impedance: 2 ohm to 8 ohm allowable
Hi-Res Audio Certified
Small Size – Big Power

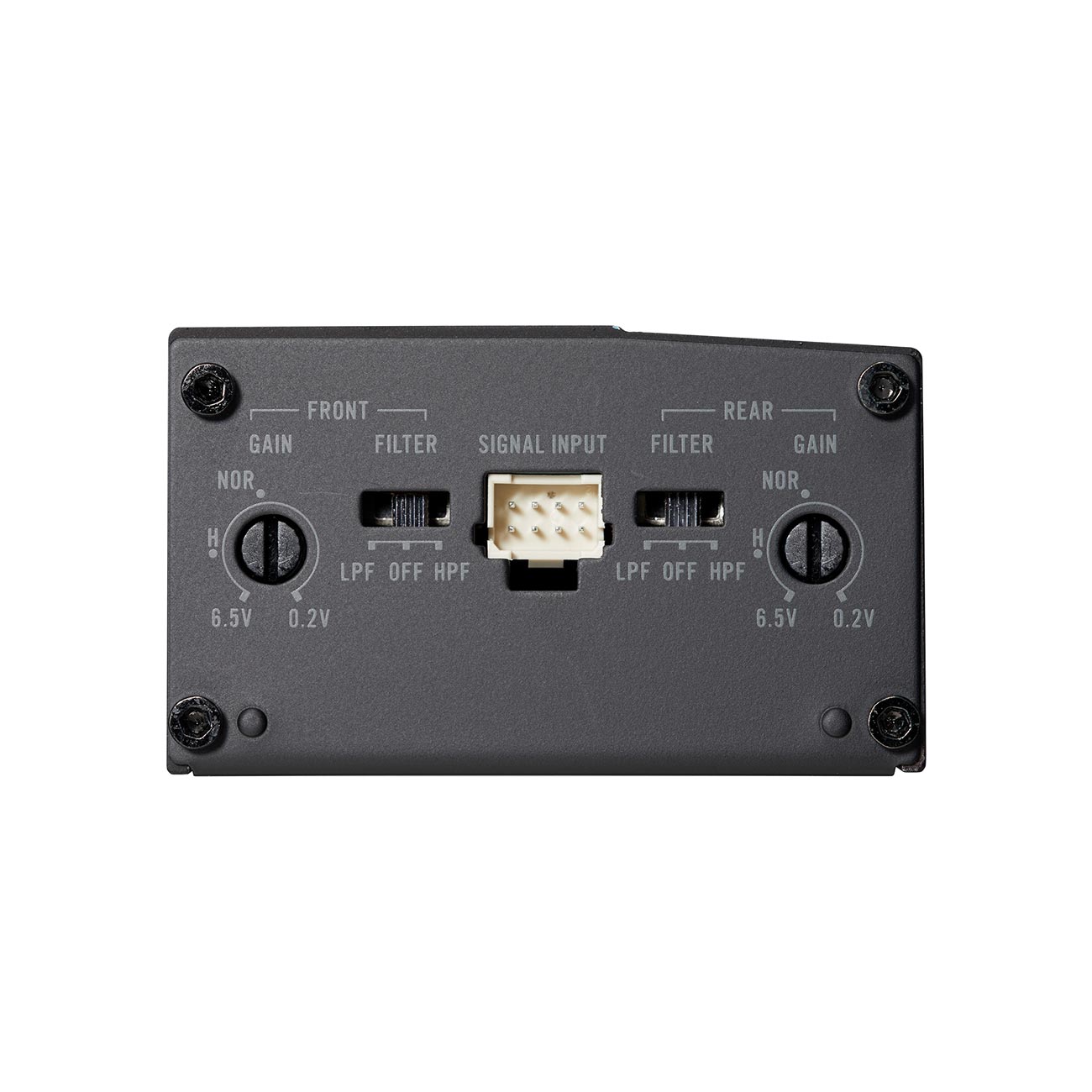

High Pass and Low-Pass Filters
Gold-plated RCA Terminals
Frequency Response Channel: 10Hz to 40kHz (+0dB,-3dB)
High/Low Pass Crossover: 80 Hz (LPF/OFF/HPF) (12 dB/Oct)
Bridgeable
Protection Control system
Power Source: 14.4 V DC (10.5 V to 16.0 V)

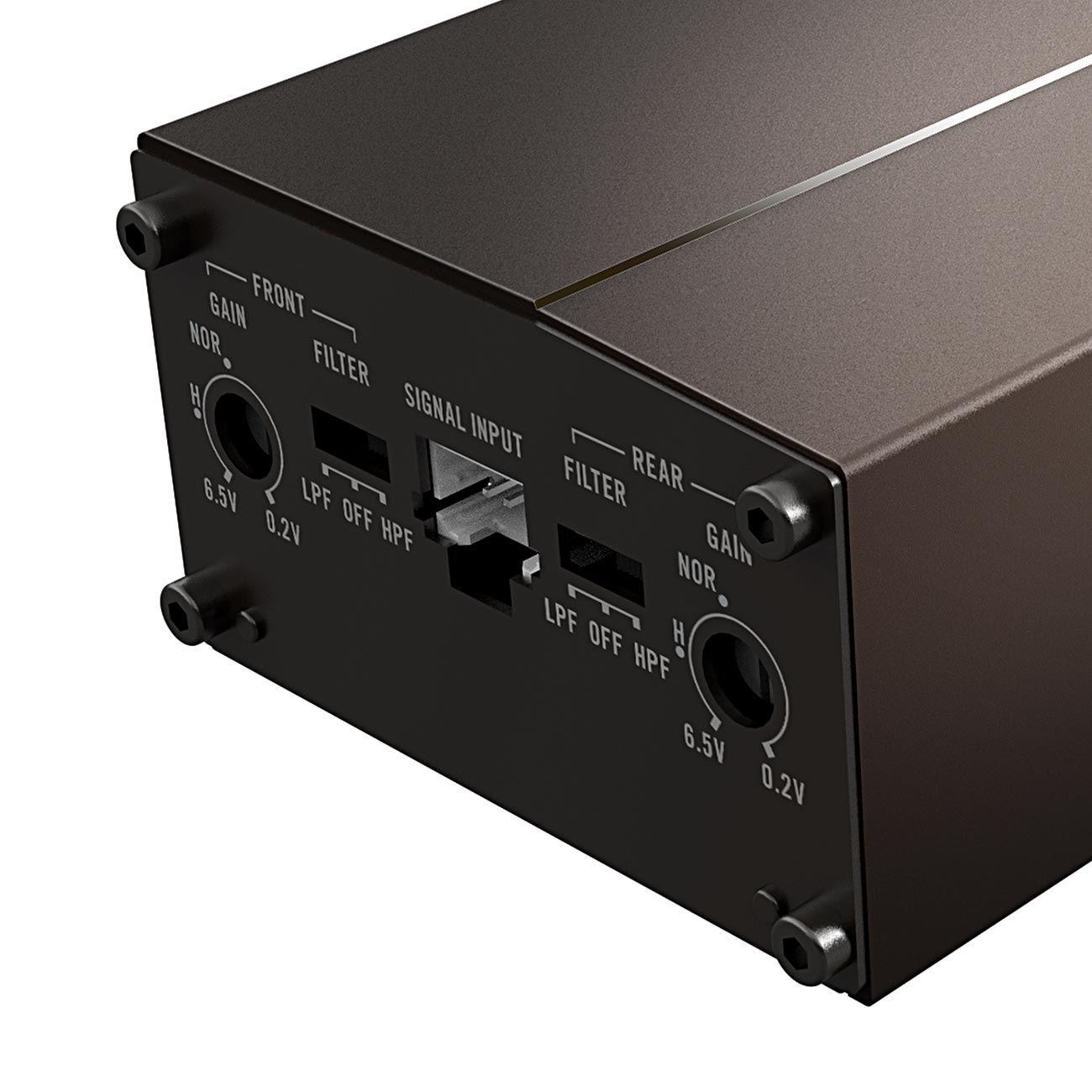

Hi/Low Level Inputs
