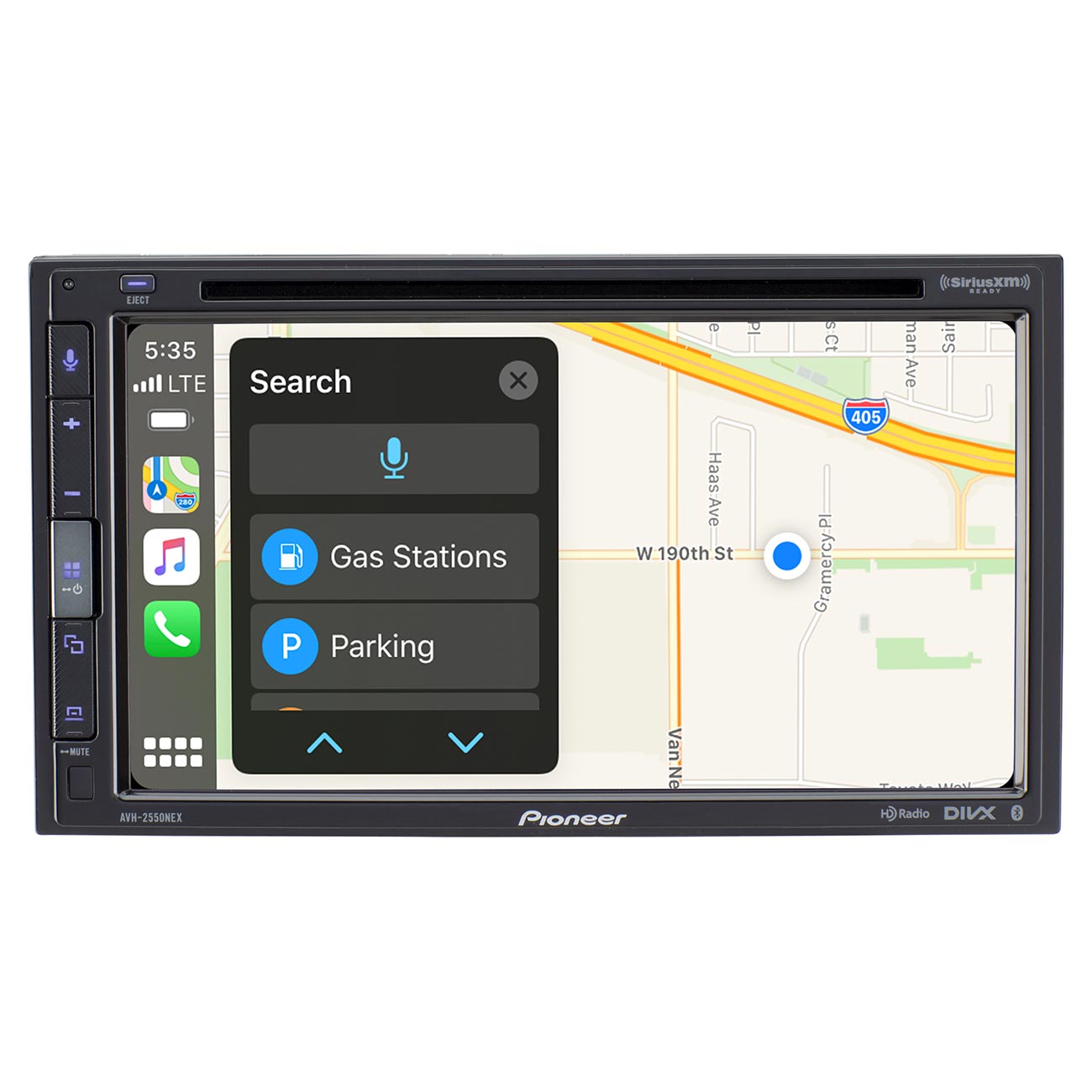

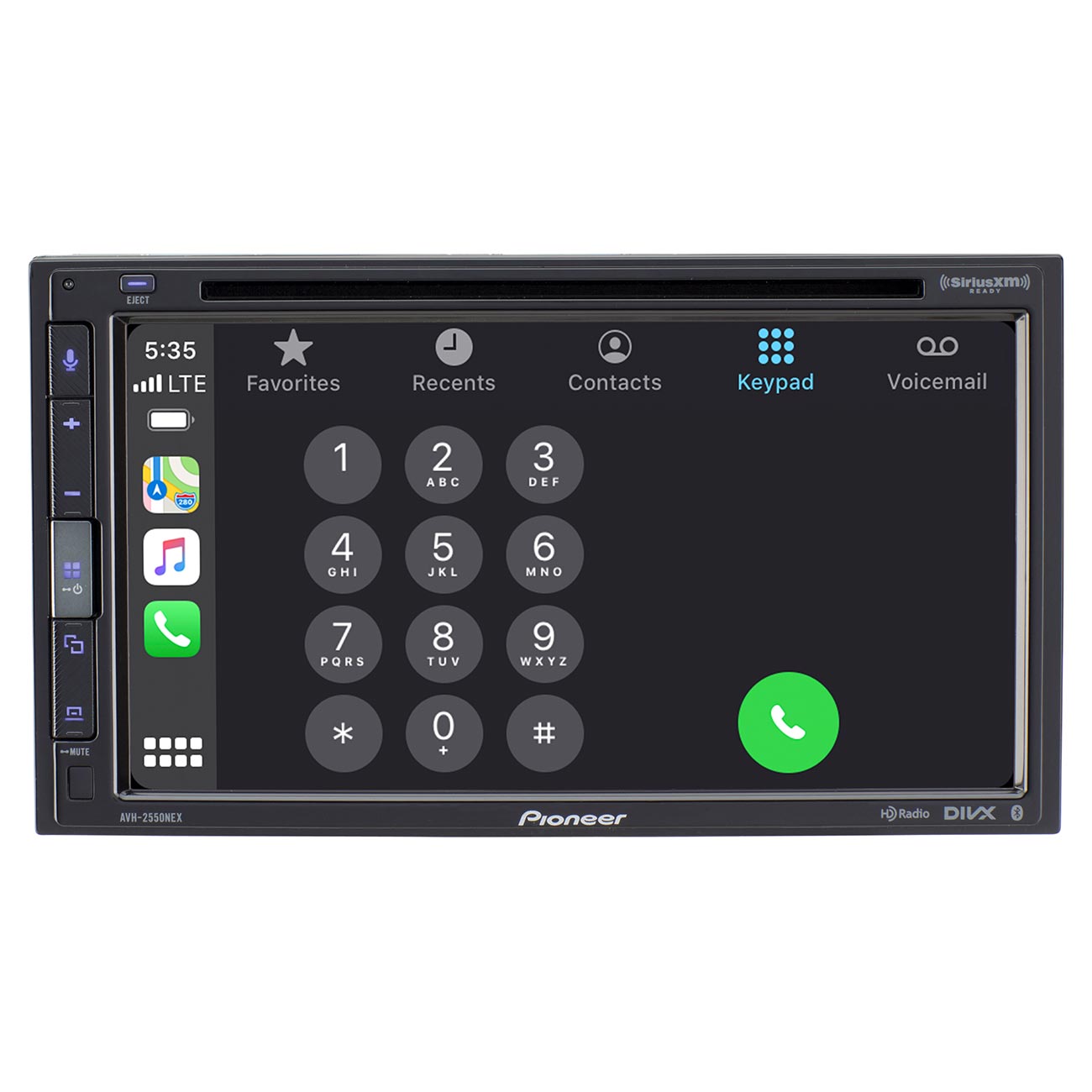

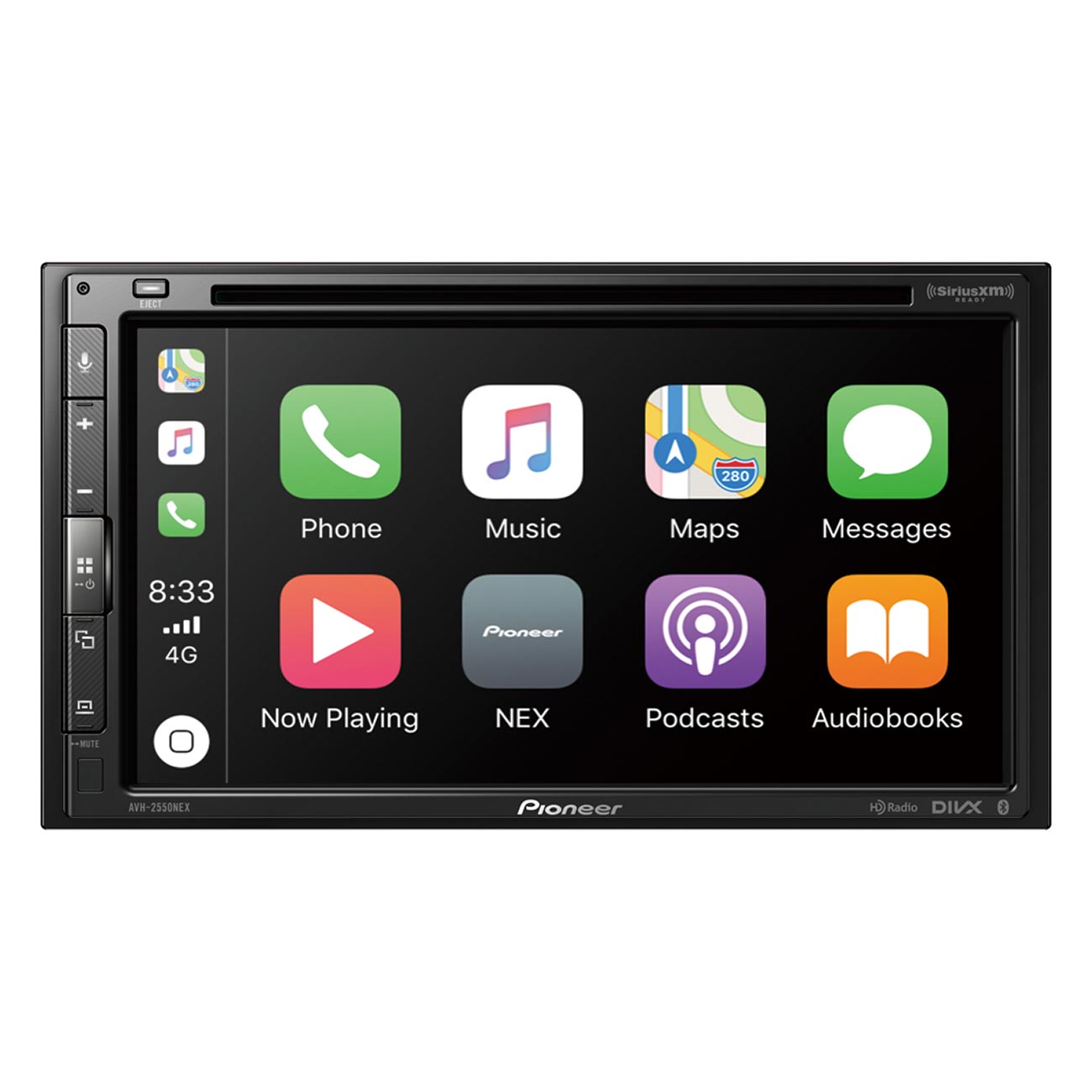

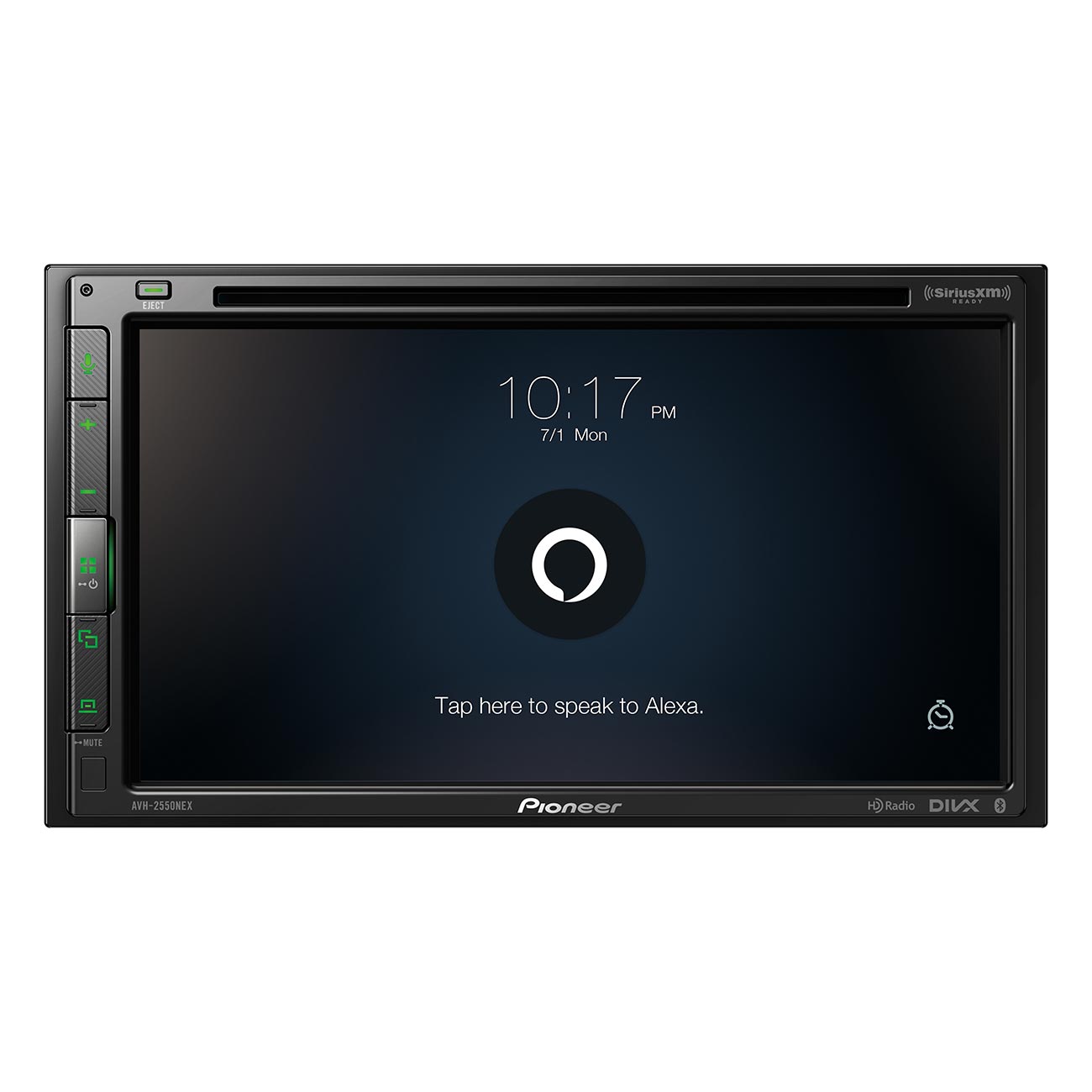

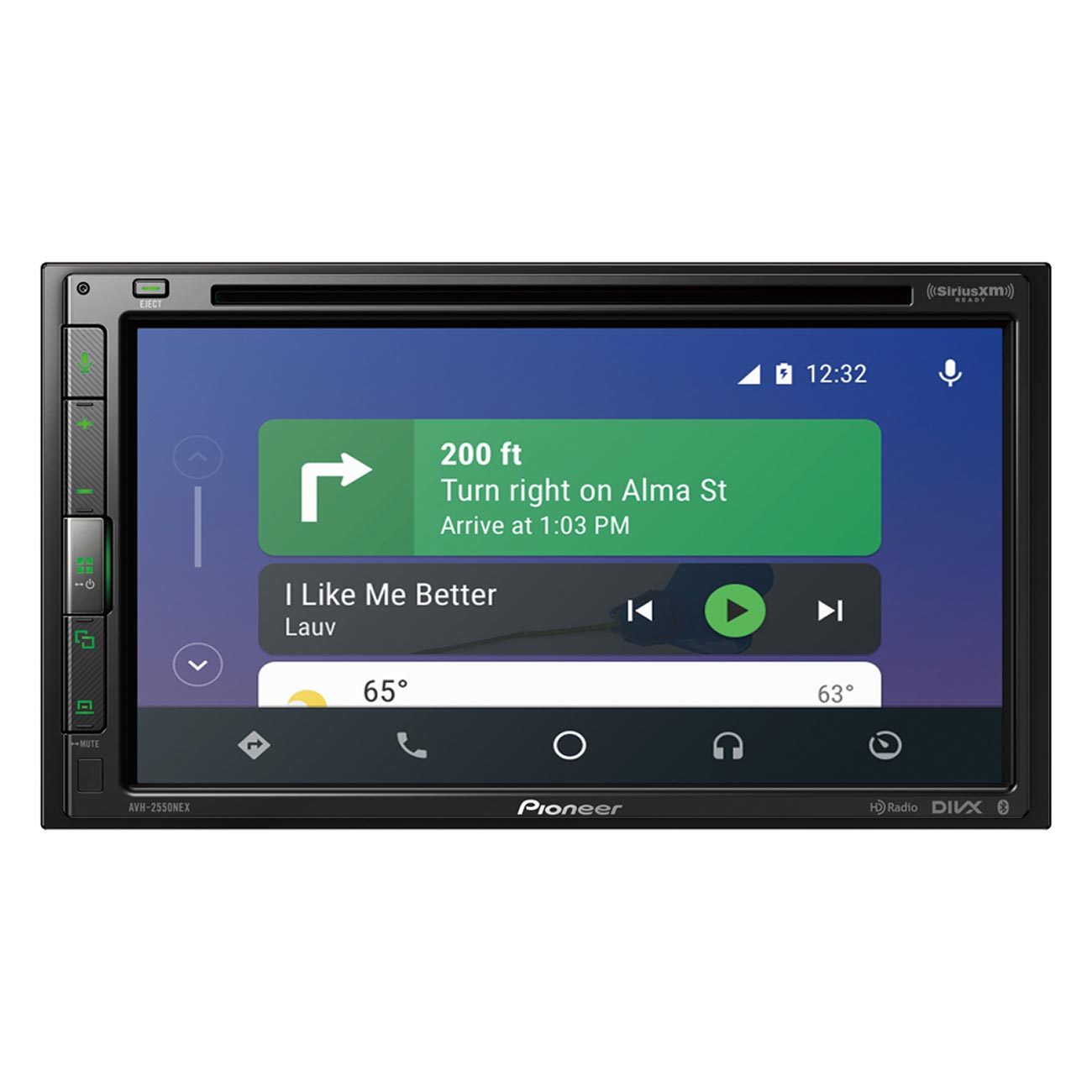

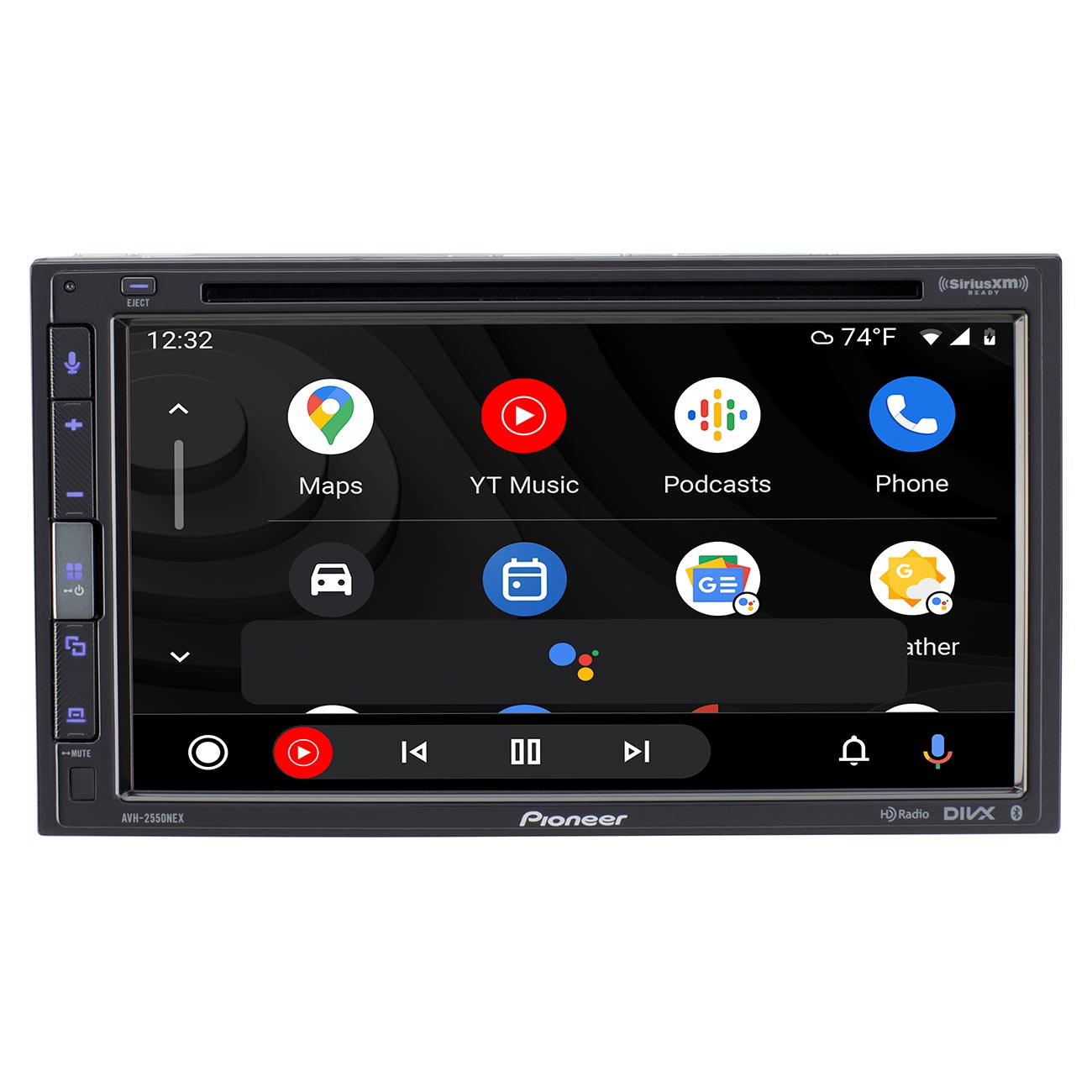

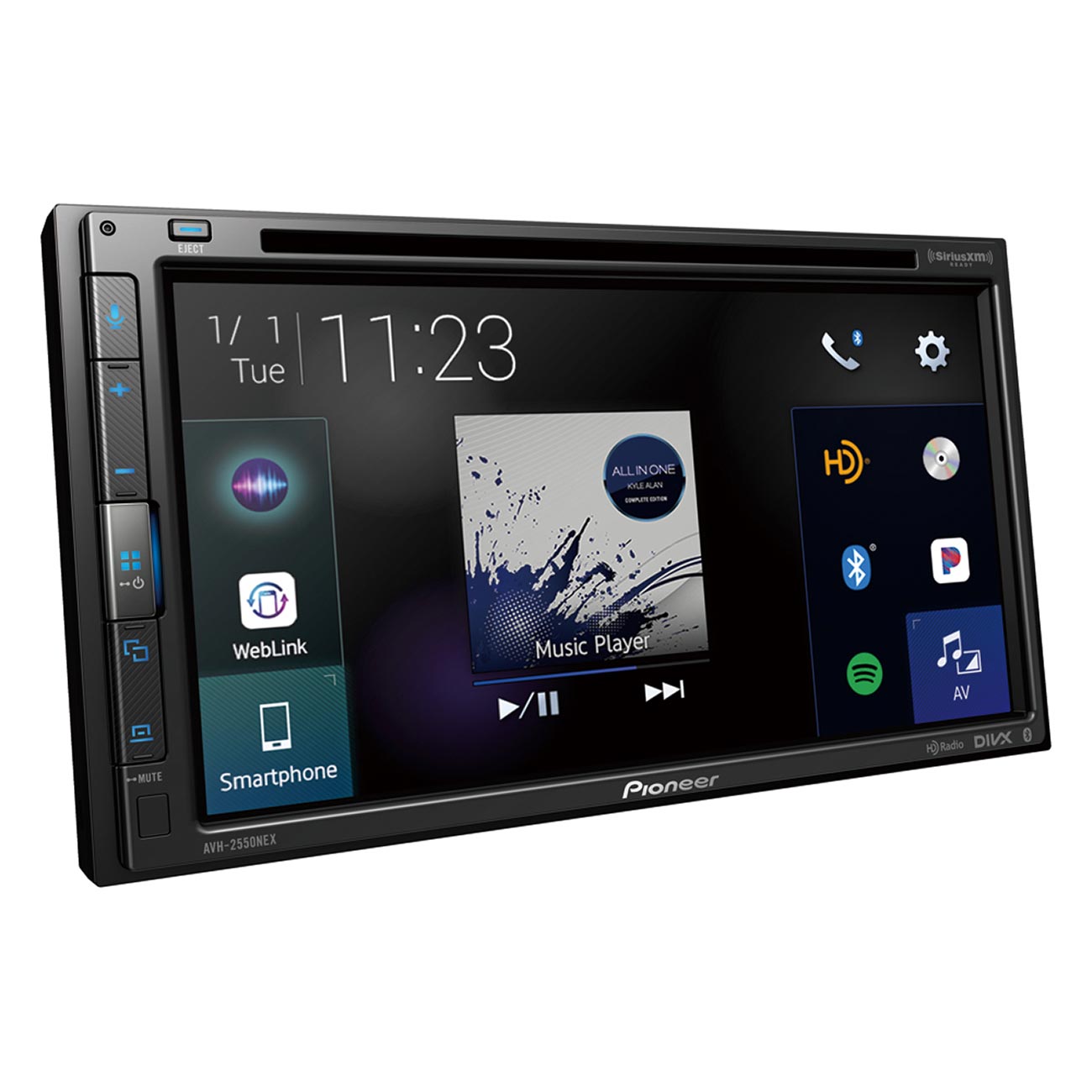

Pioneer Double DIN Modular 6.8″ Display Mechless Digital Media Receiver, Apple CarPlay®, Android Auto™, Amazon Alexa via Pioneer Vozsis, Bluetooth®, HD Radio™, SiriusXM-Ready™
Features:
Modular Chassis with 6.8″ WXGA capacitive display
Pioneer’s modular design lets this radio fit where many others won’t
Chassis: (D x W x H) 6.845″ x 7.025″ x 3.945″
Apple CarPlay® (Wired)
Android Auto™ (Wired)
Pioneer Vozsis with Alexa app.
HD Radio™
SiriusXM-Ready™ (Tuner Sold Separately)
iDatalink® Maestro™ compatible

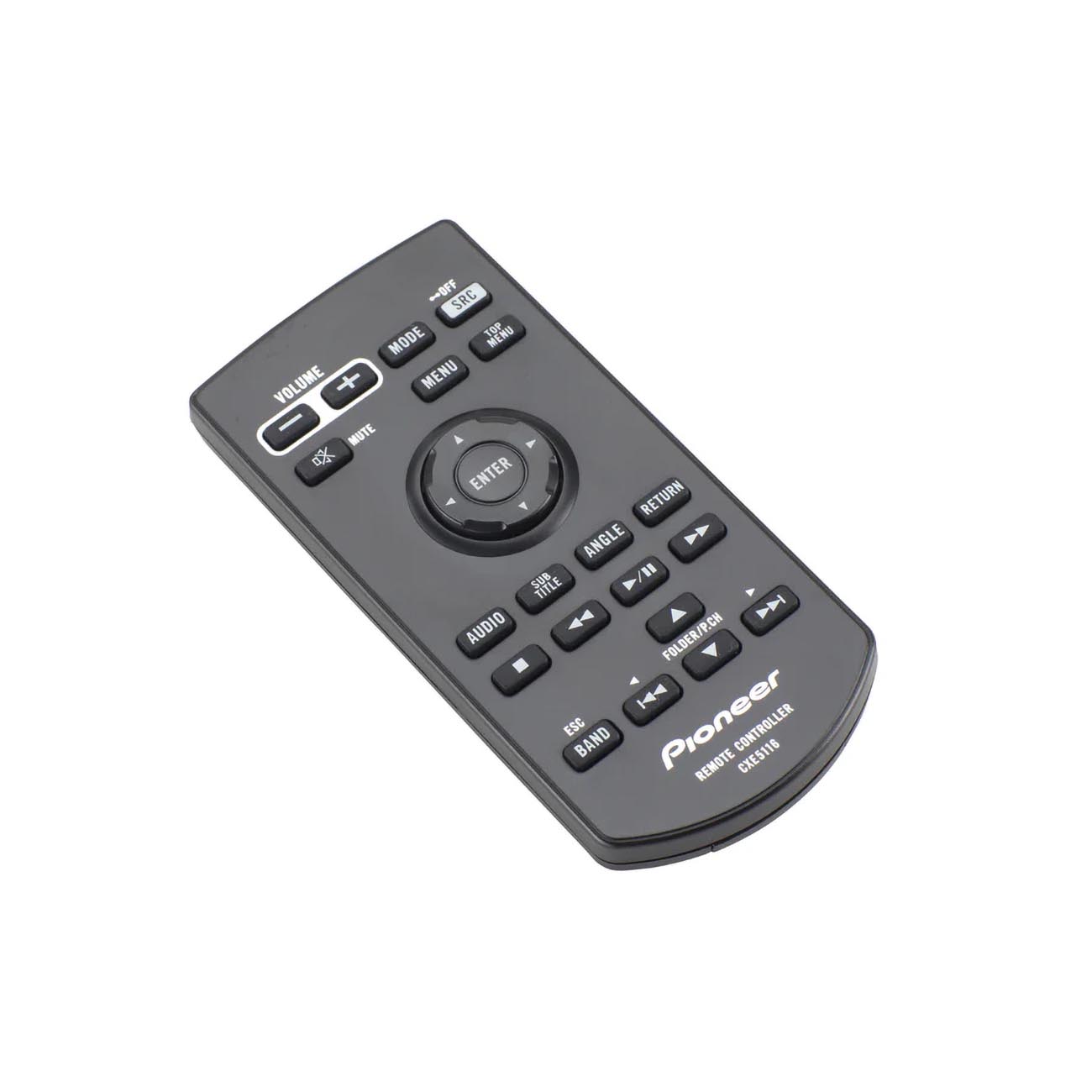

Wireless Remote Included
PRODUCT PERFORMANCE
Continuous Power Output: 22 W x 4-Channel
Max Power: 50 W x 4-ch 4 ohm ,50 W x 2-ch 4 ohm 70 W X 1-ch (subwoofer) 2 Ohm
RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm
RCA Preout Voltage: 4V
RCA Preamp Outputs: 6 Channel
GENERAL
Fixed Face
Music Browser: USB
Multi-Language Display: English, French, Spanish Portuguese, Chinese (Simplified)
Steering Wheel Control Ready (Adapter Sold Separately)
Display:
Back Light: LED
Brightness Control
Color Customization: 5 display colors, 112 key colors
Device (Non-DIN/Modular Unit): Modular, Non-DIN
Dimmer: Automatic with vehicle illumination, Timer Controlled, Manual
Display Off Mode
Home Screen Customization
Resolution: WVGA (800 x 480)
Screen Size/Aspect Ratio: 6.8″/16:9
Touch Screen: Resistive
BLUETOOTH
Advanced Audio Distribution Profile (A2DP)
AVRCP: 1.6
Built-in Bluetooth®
Dual Phone Connection
Hands-Free
Microphone Included
Phone Registration: 5-phone
Secure Simple Pairing (SSP)
Serial Port Profile (SPP)
Sound Retriever Air: Mode 1/Mode 2/Off
TUNER
Best Station Memory
HD Radio™: Built In, Artist Experience, Multicasting
Local Seek tuning
Presets: 18 FM / 6 AM
RDS Tuner
SiriusXM-Ready™ (Tuner Sold Separately)
INTEGRATION
Amazon Alexa: Paired with Pioneer Vozsis
Android Auto™: Wired USB Connection
Apple® CarPlay: Wired USB Connection
Mobile Operating System: Android, Apple iOS
Music Playback (MTP)
Pandora®: Source through iPhone/Android
Pioneer App Compatibility: Vozsis Android, Vozsis iPhone
Siri® Eyes Free (VR) (Internet Required): iPhone Only
Spotify: Streaming audio through iPhone/Android via Bluetooth or AUX input
Voice Control
Weblink
DIGITAL MEDIA PLAYBACK
Audio Playback via USB: MP3 Audio Playback, WMA Audio Playback, WAV Audio Playback (Hi-Res),AAC Audio Playback, FLAC Audio Playback (Hi-Res)
Audio Video Playback via USB: .avi,.mpg/mpeg,.divx,.mp4,.3gp,.mkv,.mov,.flv,.wmv/.asf,.m4v,.ts/.m2ts/.mts,H.263,H.264
Image Display Via USB: BMP, JPEG, PNG
AUDIO
Advanced Sound Retriever: Mode-1/Mode-2/Off
Audio Bass Boost
Auto EQ (CD-MC20 Microphone sold separately)
Automatic Level Control: Mode-1/Mode-2/Off
Balance Control
Built-in Amplifier: MOSFET 50 W x 4
Crossover Network Mode: HPF/Band Pass/LPF
Crossover Standard Mode: HPF/LPF
Customizable Graphic Equalizer: 13 Band
DA Converter: 24 Bit
Digital Signal Processor: Built In
Easy EQ (EEQ) Preset Equalizer
Listening Position Selector
Loudness: High/Mid/Low/Off
Speaker Output: 4-ch
Spectrum Analyzer
Subwoofer Control
Time Alignment: Auto, Manual
EXPANDABILITY
Audio Video Inputs: Input 1 – Backup Camera Dedicated, Input 2 – AUX (Minijack),Input 3 – A/V or 2nd Camera
OEM Integration: iDatalink Maestro RR
Parking Assist Lines
RCA-Video-Output
USB: At Hideaway unit , USB – Type-A (5V_1.5A)
USB Direct Control for iPhone®: 5s and newer
