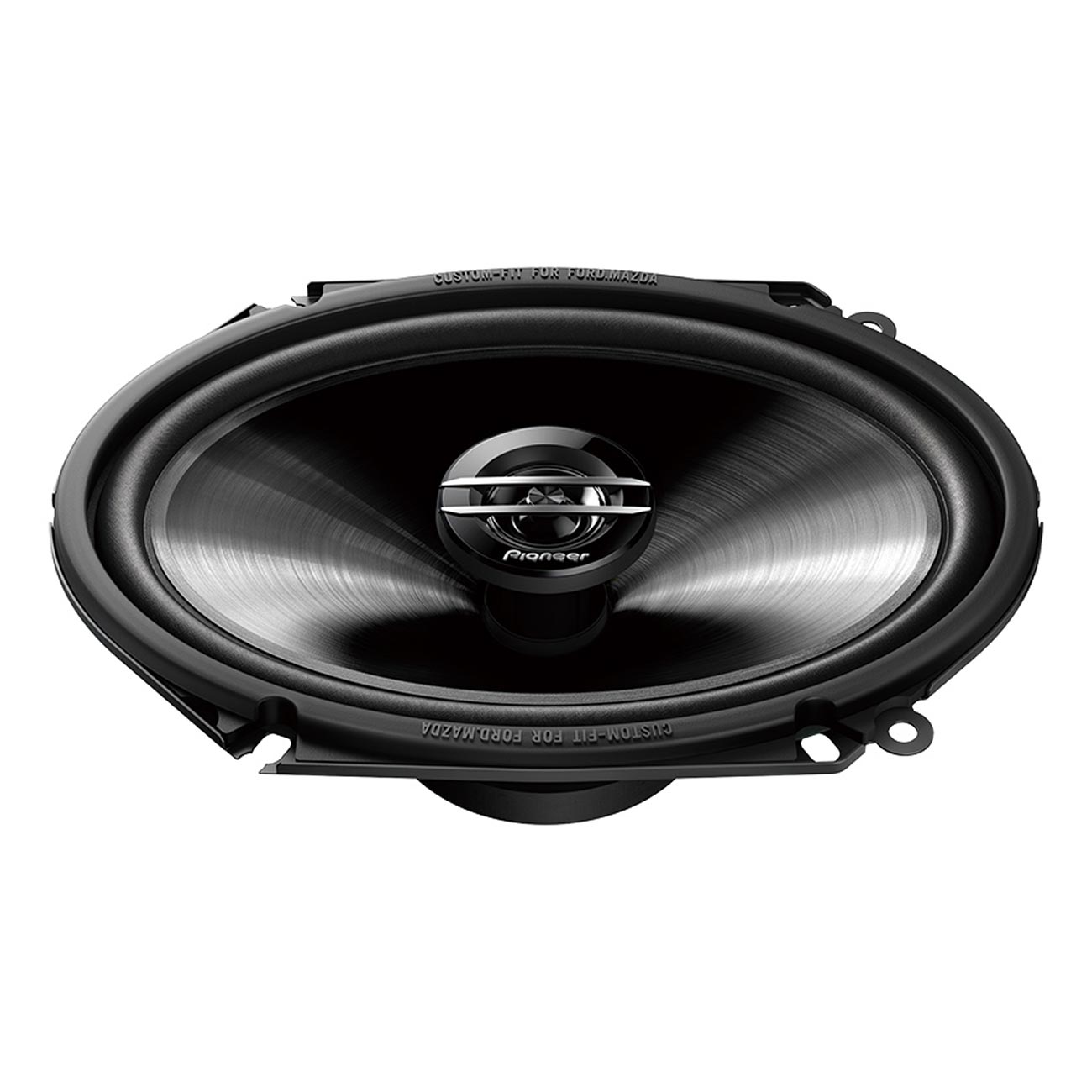

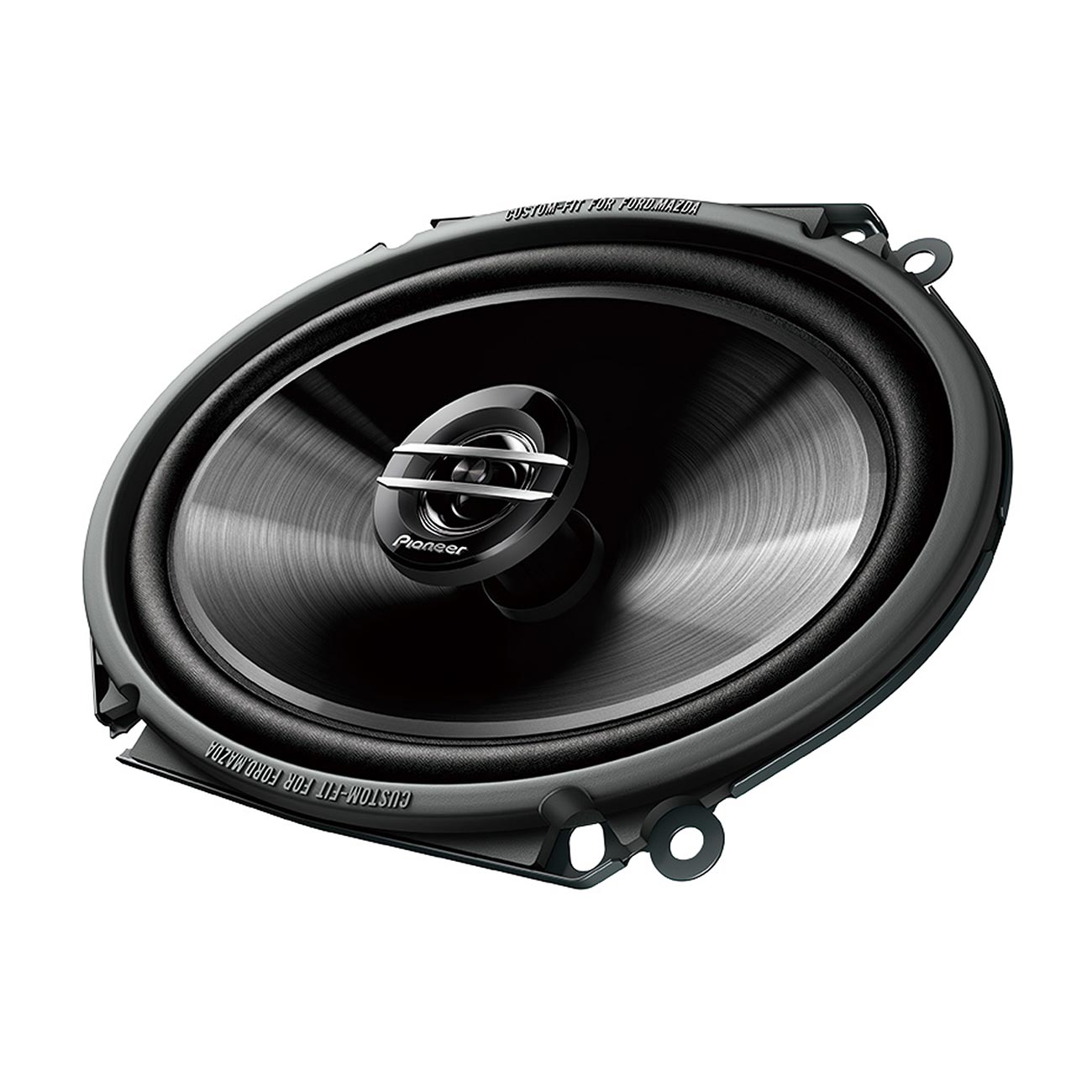

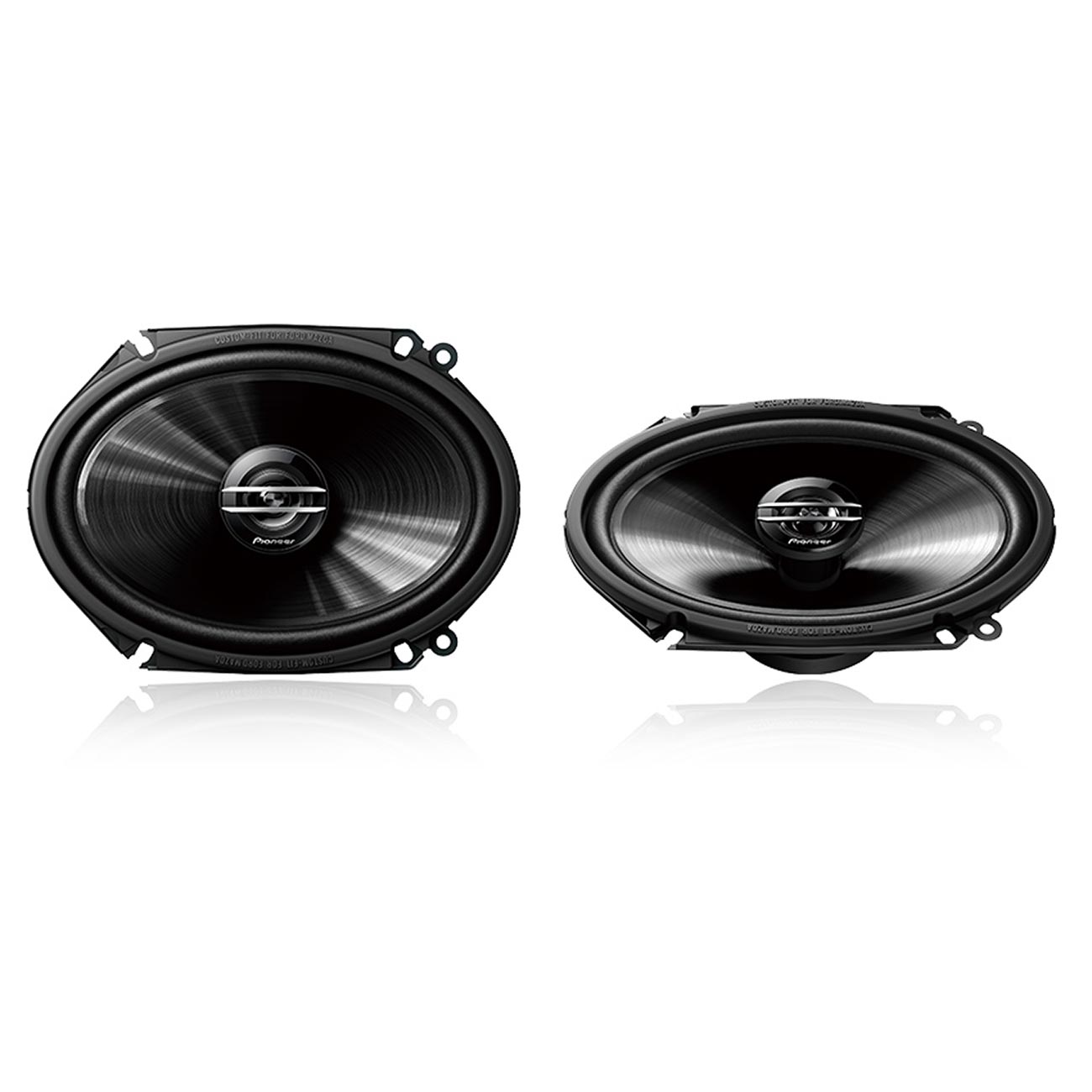

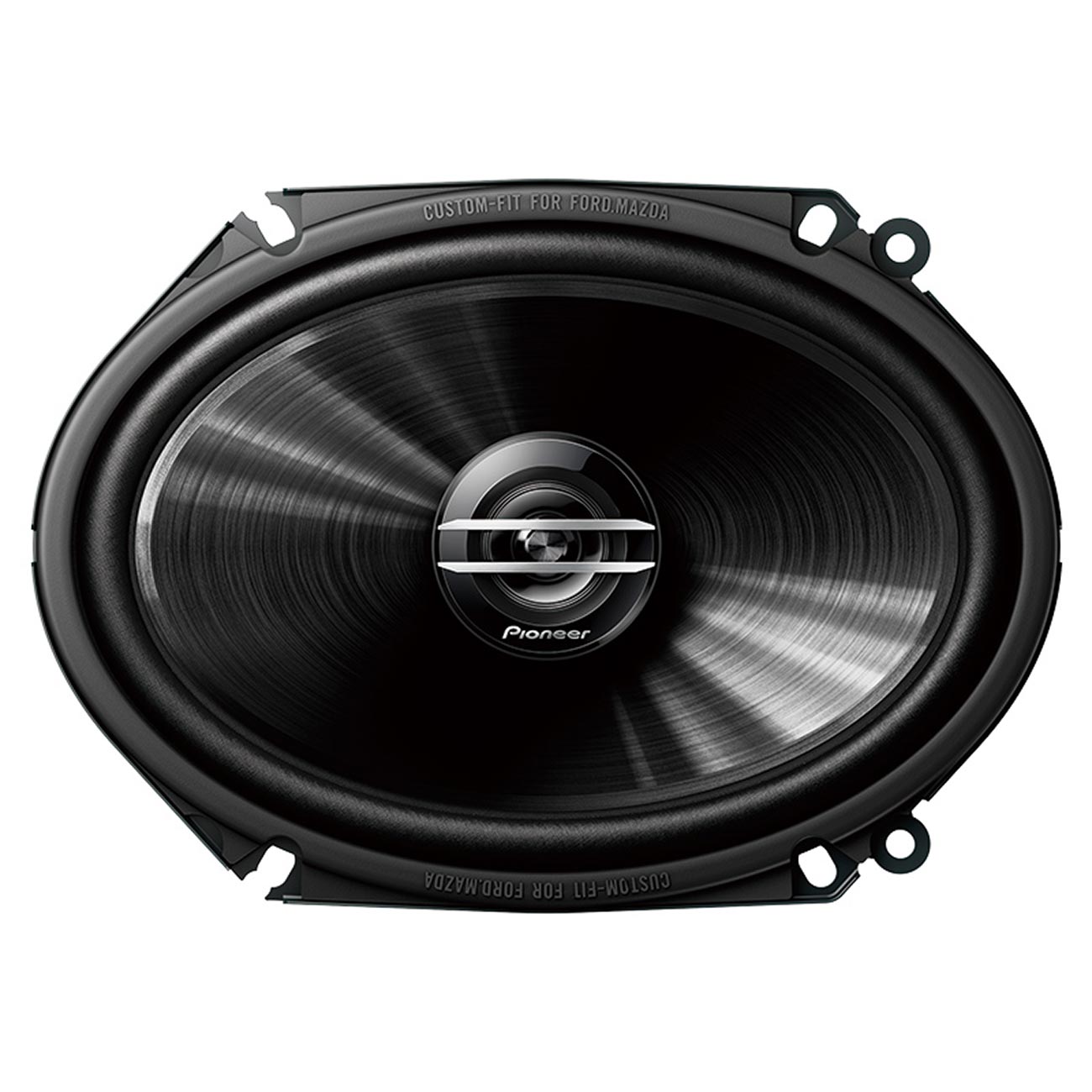

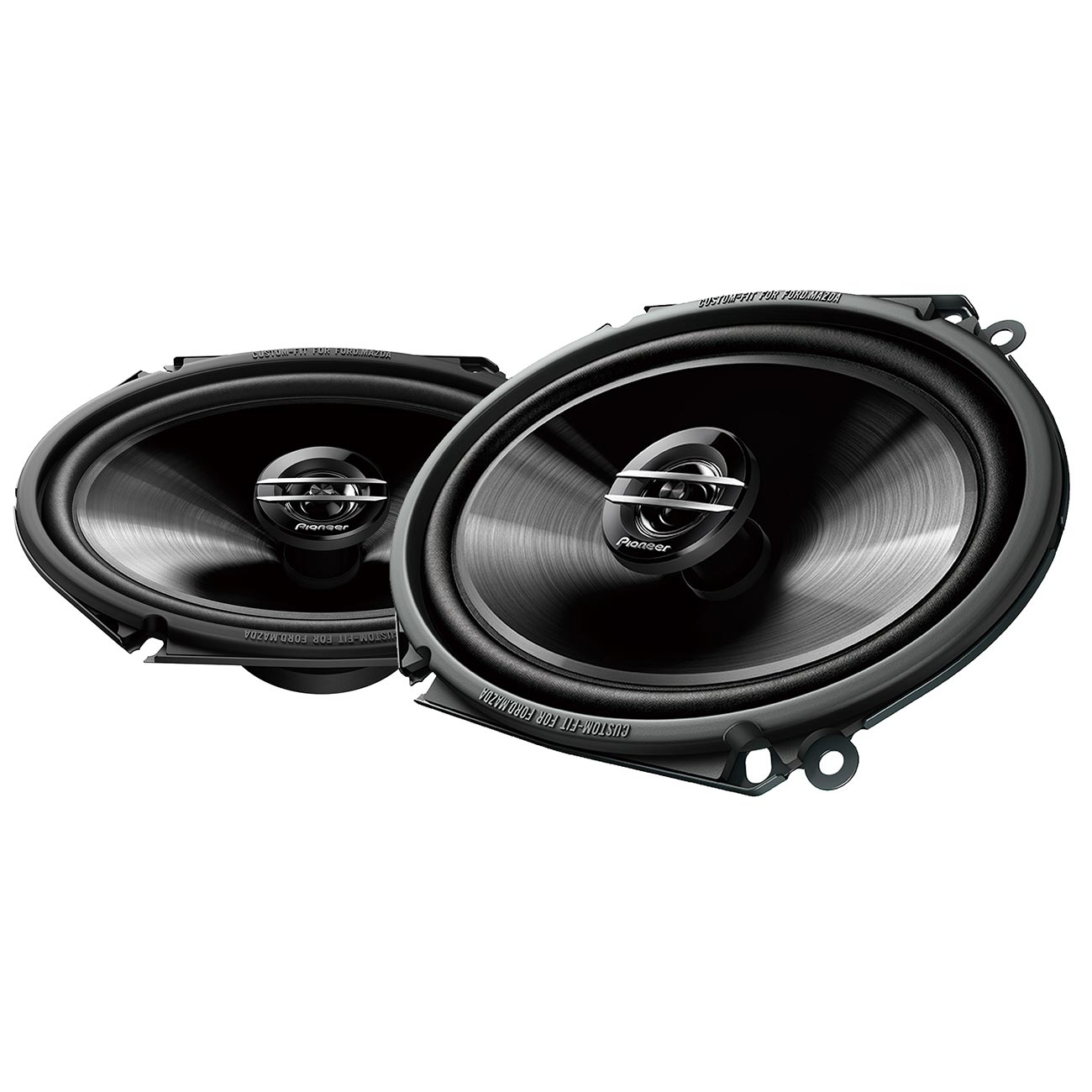

Pioneer 6×8″ 2-Way Full Range Speakers – 250W Max / 40W RMS (Pair)
250 Watts Max. Power / 40 Watts Nominal Power
6 x 8” Mica reinforced IMPP™ cone
30 mm (PET) hard dome tweeter
Frequency range: 72 Hz – 14 kHz
Speaker Impedance: 4 ohms
Speaker Efficiency: 92 dB (1W/1M)
Patented Pioneer P.F.S.S. Spider
Grills NOT Included!
Mounting Depth: 2-1/2″
Cut Out dimensions: 7-1/2″ x 5-1/4″
Tweeter Dimensions: 1.18″
Basket Material: Metal
Cone Material: IMPP – with MICA
Damper: Poly cotton
Diaphragm Material: Polyethylene terephthalate (PET) – Tweeter
Magnet Material: Ferrite
Magnet Weight: 5.5 oz
Shorting Ring Material: Copper
Surround Material: Rubber Coated Cloth
Surround Type: Rolled
Voice Coil Material: Kapton
Voice Coil wire: Copper
Wire Terminals: Lug Type
