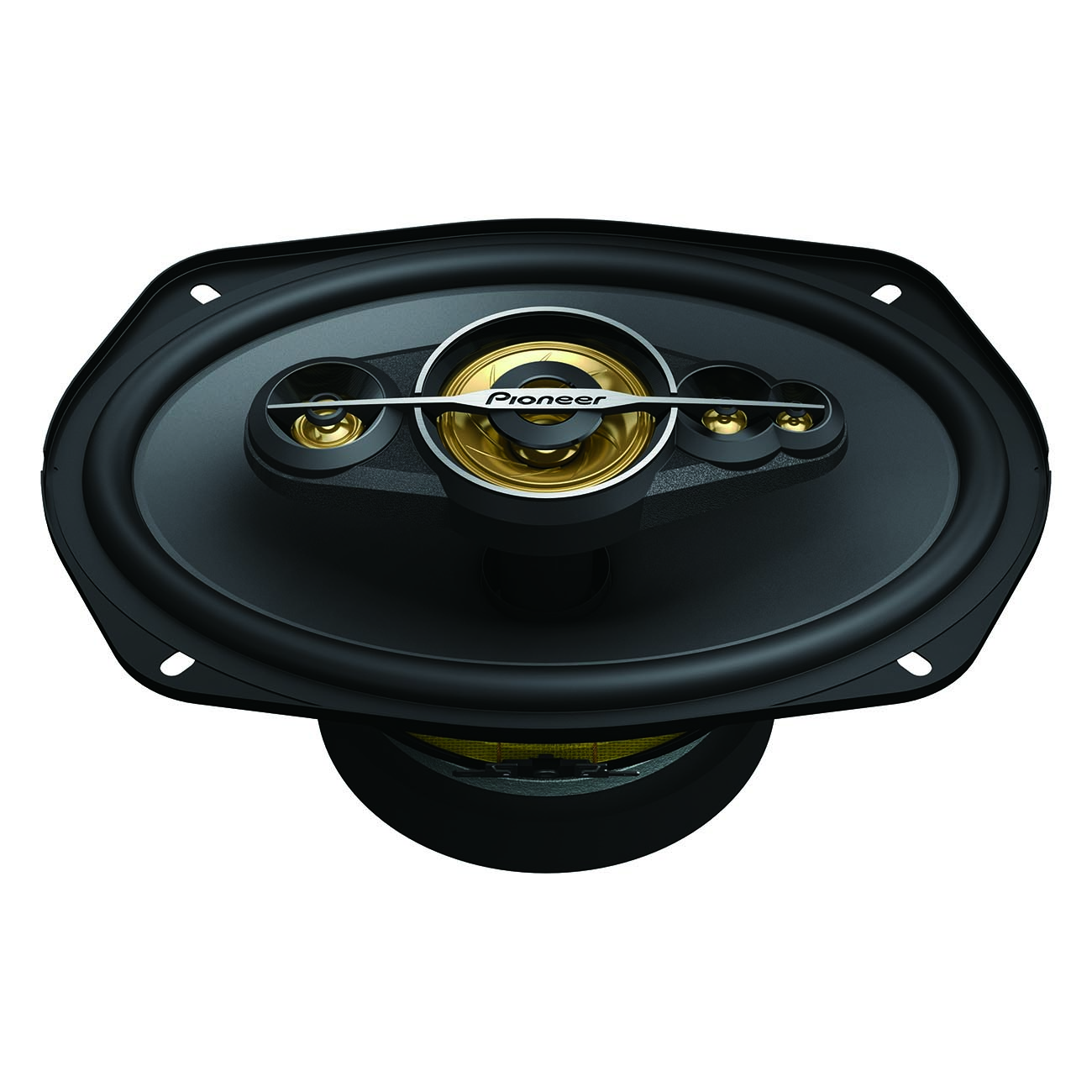

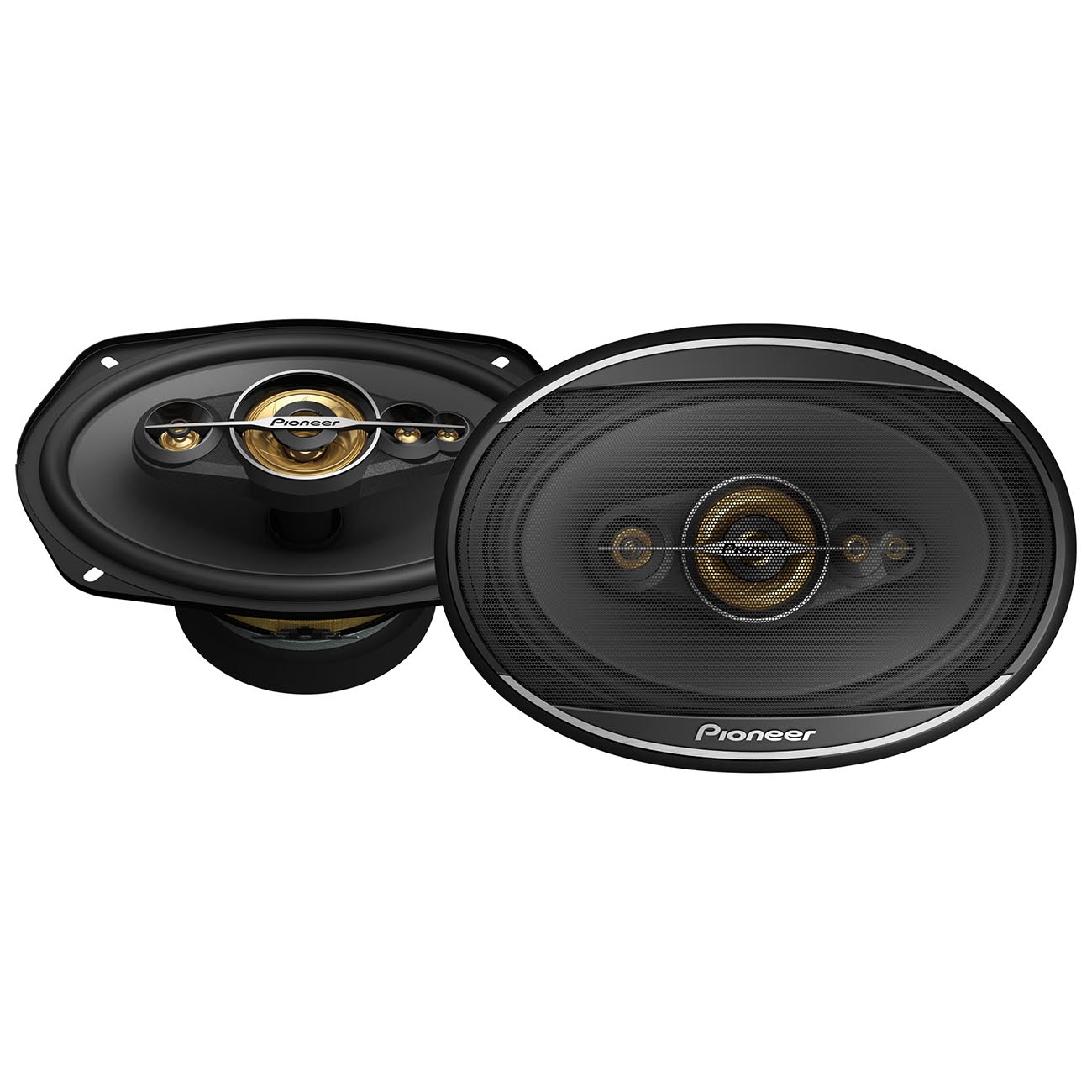

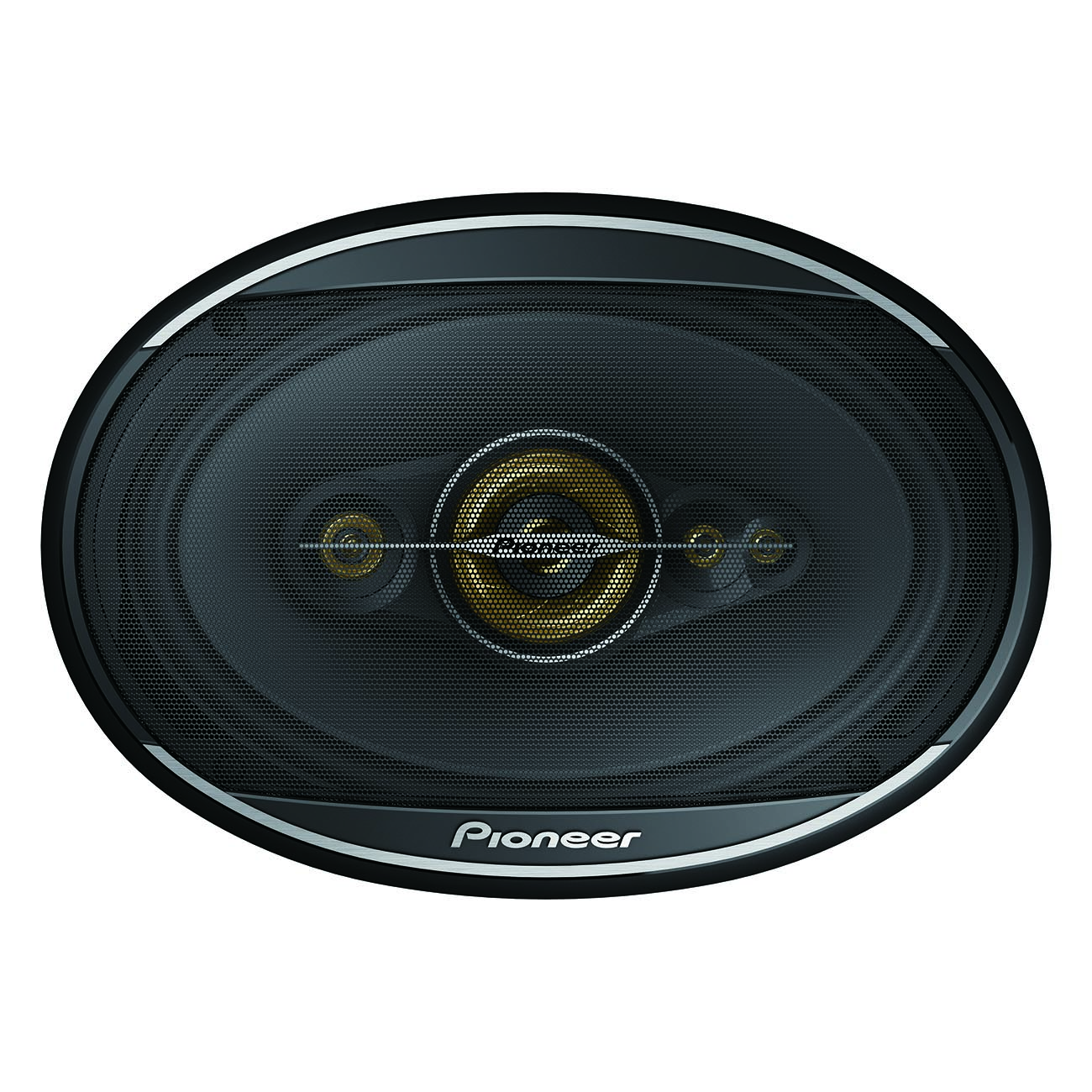

Pioneer 6×9″ 5-Way Full Range Speakers – 750W Max / 150W RMS (Pair)
750 Watts Max. Power / 150 Watts Nominal Power
6”x9″ Carbon and Mica reinforced IMPP™ cone
2-1/4″ (57mm) polyetherimide (PEI) cone midrange
18mm PET hard dome Tweeter
11mm & 9mm PET hard dome Super Tweeters
Frequency range: 29 Hz – 31 kHz
Speaker Impedance: 4 ohms
Speaker Efficiency: 93 dB (1W/1M)
Mounting Depth: 3-3/8″ (85.7mm)
Cut Out dimensions: 8-3/4″ x 6″
Basket Material: Iron Plate Press
Cone Material: Carbon and Mica reinforced Injected Molded Polypropylene – IMPP
Damper: Poly cotton Aramid
Diaphragm Material: Polyetherimide (PEI) – Tweeter
Magnet Material: Ferrite – Woofer, Ferrite – Tweeter
Magnet Weight: 15.2 oz – Woofer, 1.4 oz – Tweeter
Surround Material: Elastic Polymer
Surround Type: Rolled
Voice Coil Bobbin: Glass Imide
Voice Coil wire: Copper
Wire Terminals: Lug Type
