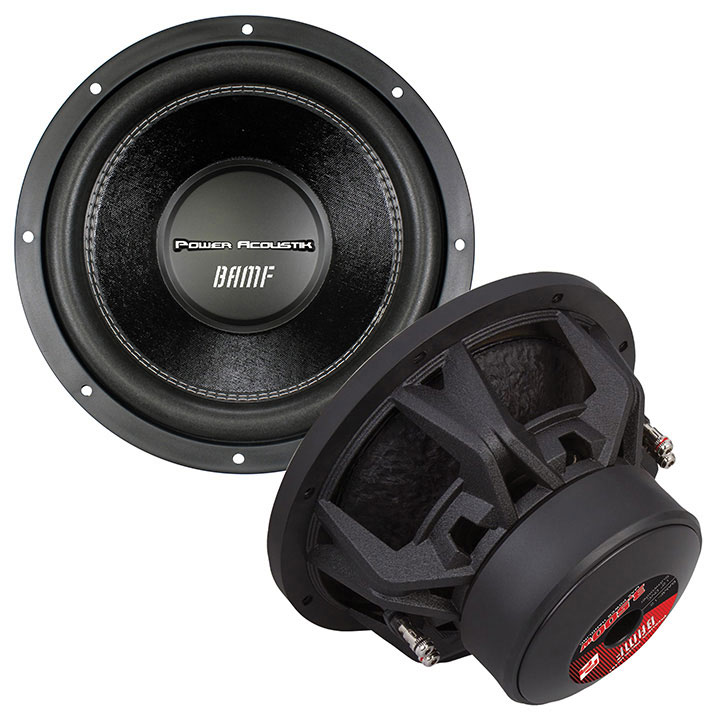

Power Acoustik 12″ Woofer, 1750W RMS/3500W Max, Dual 2 Ohm Voice Coils

BAMF122 Power Acoustik

Log in to see price!

In stock

Max Power Handling: 3,500w
RMS Power Handling: 1,750w
Efficiency (1w/1m) 81.3
Voice Coil Configuration : 3″ Dual 2 Ohm
Double Stacked 204 oz. magnet
Mounting Depth 6.75″
Optimum Sealed Enclosure ft3 1.5
Optimum Ported Enclosure ft3 2.5

Overcompensating Motor Structure for Increased Magnetic Strength
12mm T-Yoke & Top Plate Improve Low Frequency Dynamics
Vented T-Yoke & Frame Reduces Voice Coil Heat Build-up
Non-Magnetic Non-Resonate Die-Cast Aluminum Frame
3″ 4-Layer Voice Coil w/ Direct Connect Wire Increases Power Handling
High-Temperature Tolerance Adhesives Resist Thermal Failure
Non-Transfer Spruce Pulp Cone w/ UV & Chemical Protection
Stitched and Glued Surround/Cone Joints for Strongest Bonding
Extended Excursion Polyether Foam Surround w/ UV Protection
Dual Poly-Cotton Suspension Dampen Violent Accelerations
Stitched Voice Coil Leads Prevent Potential Damage
1-pc Gasket/Trim Ring w/ Concealed Mounting Holes Included

Sold Individually

Manufacturer Model # BAMF-122
UPC 709483050273
Case Quantity 1
Weight 25.00 lbs
Carton Dimensions 14 × 14 × 10 in
