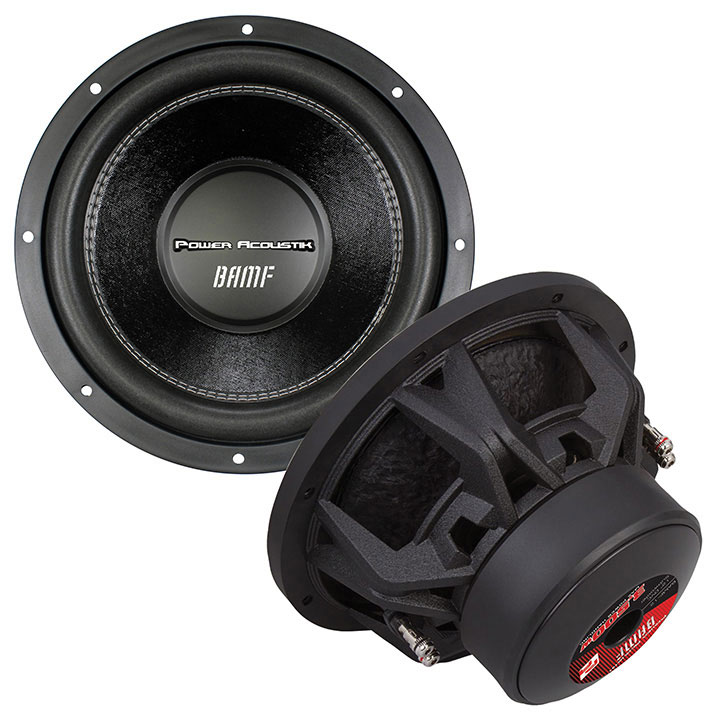

Power Acoustik 12″ Woofer, 1750W RMS/3500W Max, Dual 4 Ohm Voice Coils

BAMF124 Power Acoustik

Log in to see price!

In stock

3500 Watts Max
1750 Watts RMS
3″ 4 Ohm Dual VC
Double Stacked 272 oz. magnet
Efficiency (1w/1m): 84.60
Optimum sealed: 0.75 cu. ft.
Optimum ported: 1.25 cu. ft.
Mounting depth: 6.75″

Overcompensating Motor Structure for Increased Magnetic Strength
12mm T-Yoke & Top Plate Improve Low Frequency Dynamics
Vented T-Yoke & Frame Reduces Voice Coil Heat Build-up
Non-Magnetic Non-Resonate Die-Cast Aluminum Frame
3″ 4-Layer Voice Coil w/ Direct Connect Wire Increases Power Handling
High-Temperature Tolerance Adhesives Resist Thermal Failure
Non-Transfer Spruce Pulp Cone w/ UV & Chemical Protection
Stitched and Glued Surround/Cone Joints for Strongest Bonding
Extended Excursion Polyether Foam Surround w/ UV Protection
Dual Poly-Cotton Suspension Dampen Violent Accelerations
Stitched Voice Coil Leads Prevent Potential Damage
1-pc Gasket/Trim Ring w/ Concealed Mounting Holes Included

Sold Individually

Manufacturer Model # BAMF-124
UPC 709483055773
Case Quantity 1
Weight 25.00 lbs
Carton Dimensions 14.25 × 10.25 × 14.25 in


Voice Coil
