Pyle Mini Phono Turntable Preamp

PP444 Pyle

Log in to see price!

In stock

Ultra Compact Phono Turntable Preamp
Converts Your Phono Signal to a Line Level Signal
State-of-the-art Phono Preamp To Accommodate Magnetic Pickups
Ultra Low-Noise Audio Operational Amplifiers Offer Outstanding Sound Performance

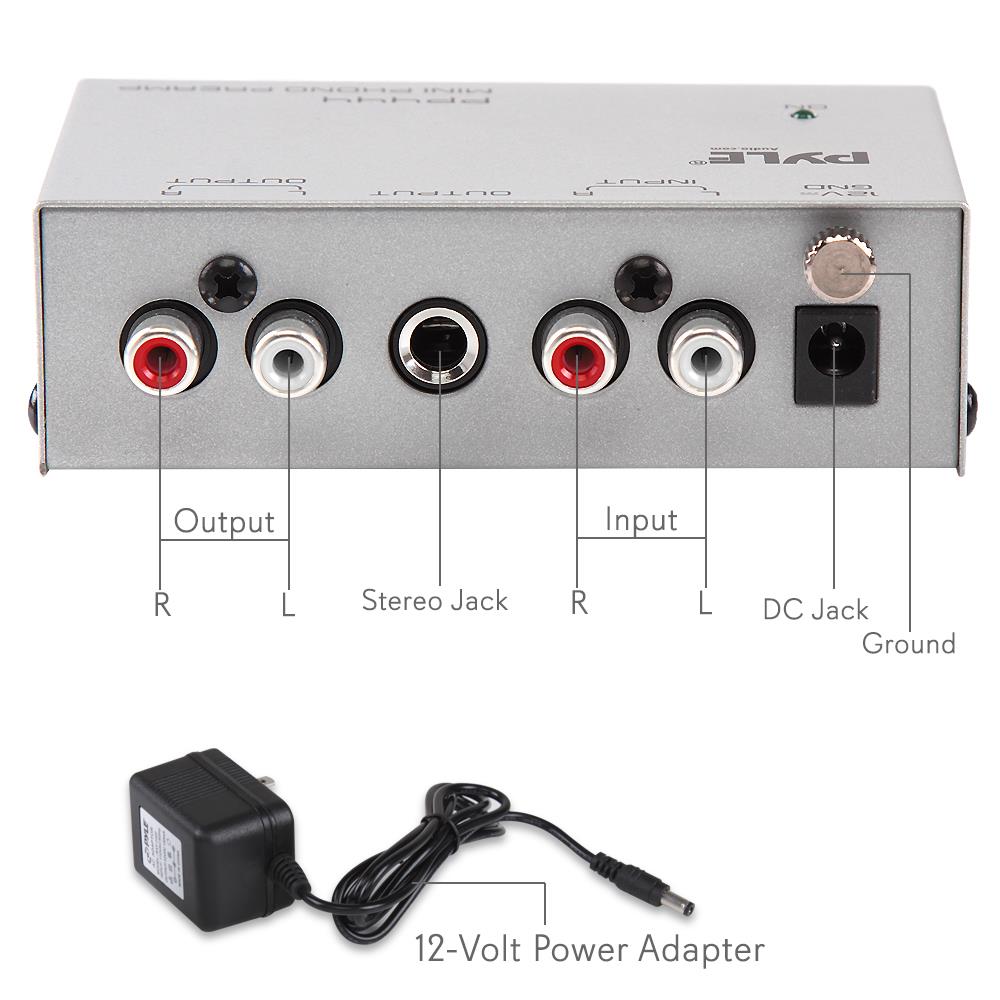

Dedicated RCA and 1/4′ Output Connectors
DC 12-Volt Adapter Included
Connects to Turntable
Input Sensitivity: 3mV at 50K Ohms (phono)
Output: 2V max (P-P) at 10K Ohms
Includes power adapter 12V DC
THD: 0.08% @ 1KHz and 3mV Input ; S/N Ratio: 70dB ; Frequency Response: 20Hz To 20KHz @ 2dB
Connects to Turntable Output to Bring Phono Level Up to Line Level – 12V DC 110V Adaptor Included
Dimensions: (W)3.54″x (H)2.13″ x (D)1.02″ – Weight: 0.88 Lbs
Input Sensitivity/Impedance/PHONO 3 mV / 50K Ohms – T.H.D: 0.08 for 1 KHz 3 MV Input – Output Level: 2V
Load Impedance: 10K Ohms – Reference Voltage: 1V d
S/N Ratio (A-WTD): 70 dB – Frequency Response: 20 Hz ~ 20 KHz ±2dB

SKU PP444
Manufacturer Model # PP444
UPC 068888995009
Brand:
Weight 0.70 lbs
Carton Dimensions 8 × 6 × 2.2 in
