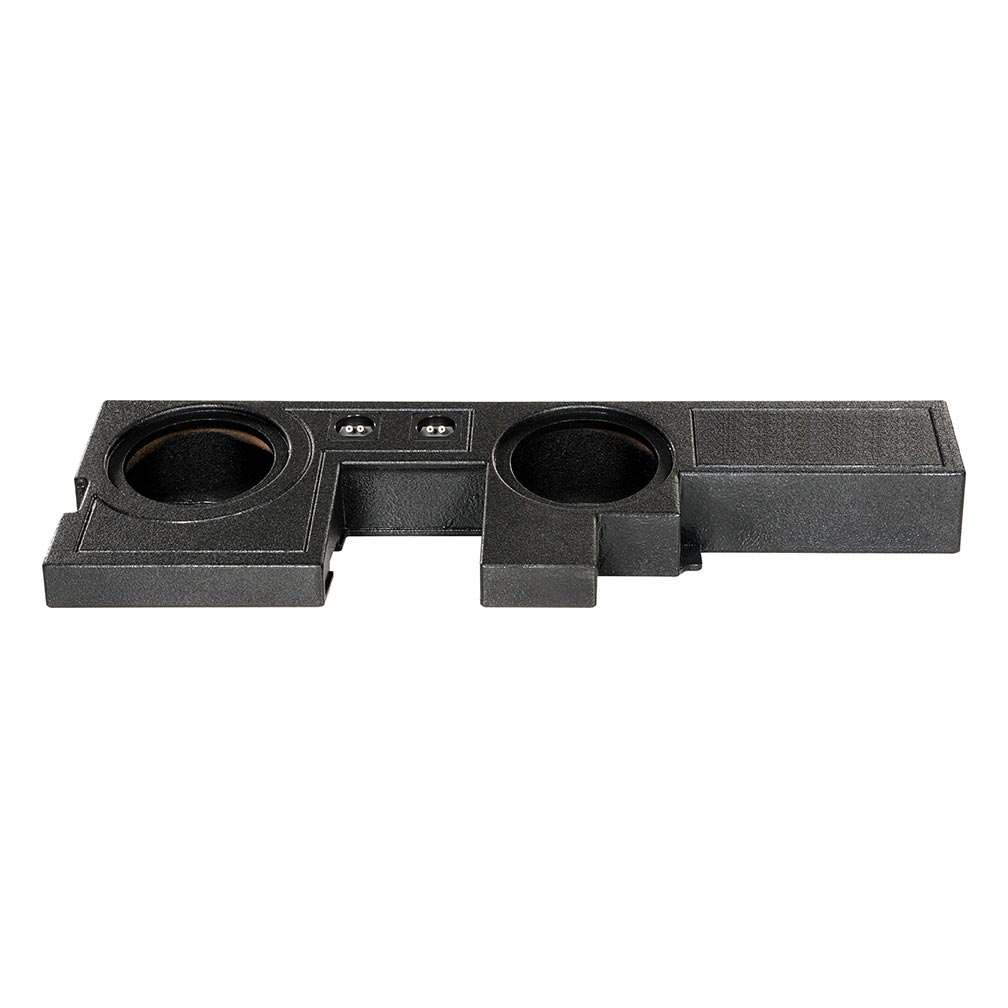

QBOMB – BLACK SPRAYED ON BEDLINER COATING
2000-2016 Ford Super Duty F-250/ F-350 / F-450 / F-550 Crew Cab
Dual 10″ enclosure – Rectangular slot port on left side – Single 3″ x 5½” Vent
Mounts behind seat – Front Fire
Spring Loaded Push Pin Terminals
⅝” MDF Construction
Mounting Depth: 4-1/2″
Volume (Sub): 0.7 Cubic Feet (per sub)
Tuning Frequency: 36HZ
Dimensions (WxHxTD/BD) 54” x 16¾” x 3”/7½”
Removal of Jack Kit, Rear Seat Belt cover & rear carpet is required
Power window motor needs to be removed during installation
