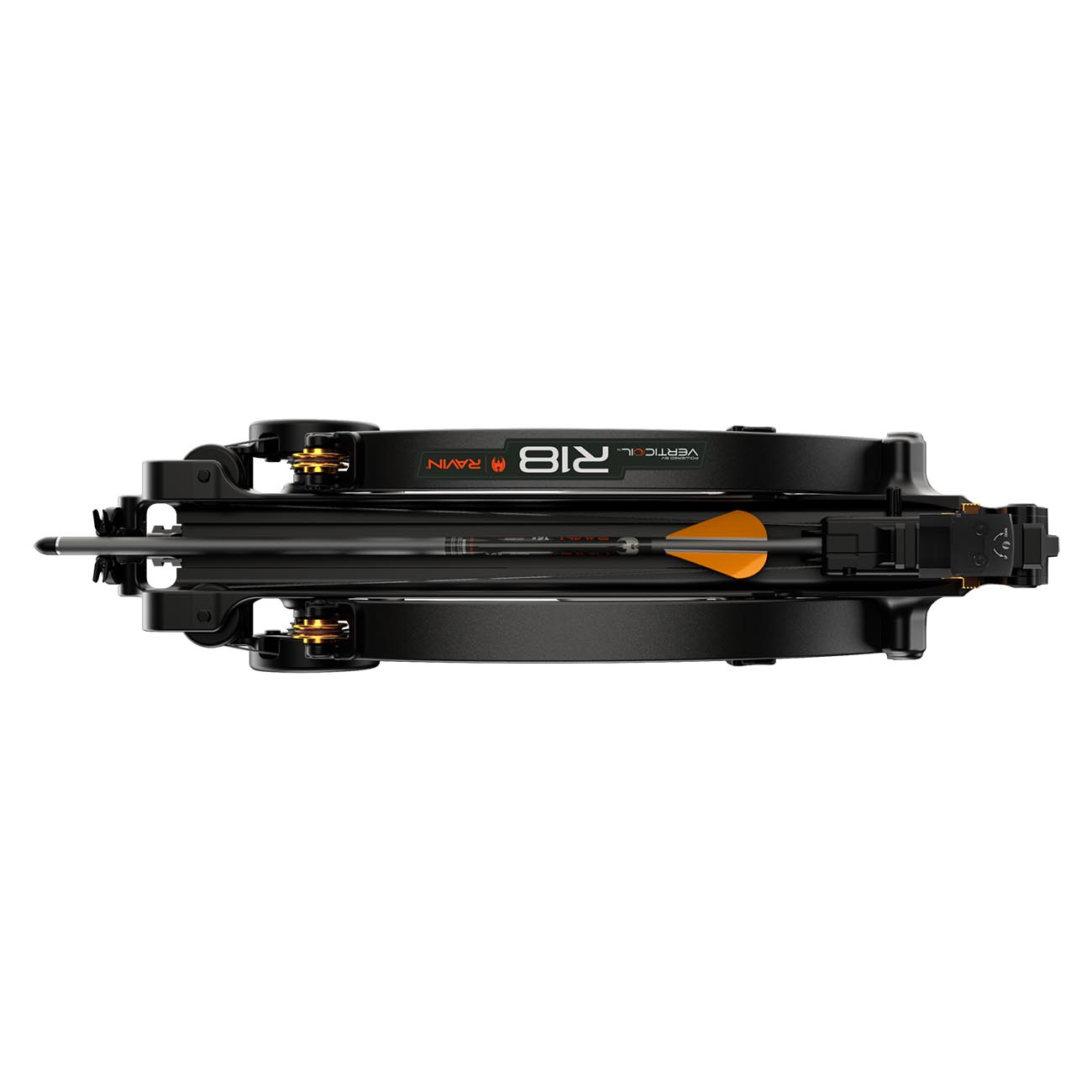

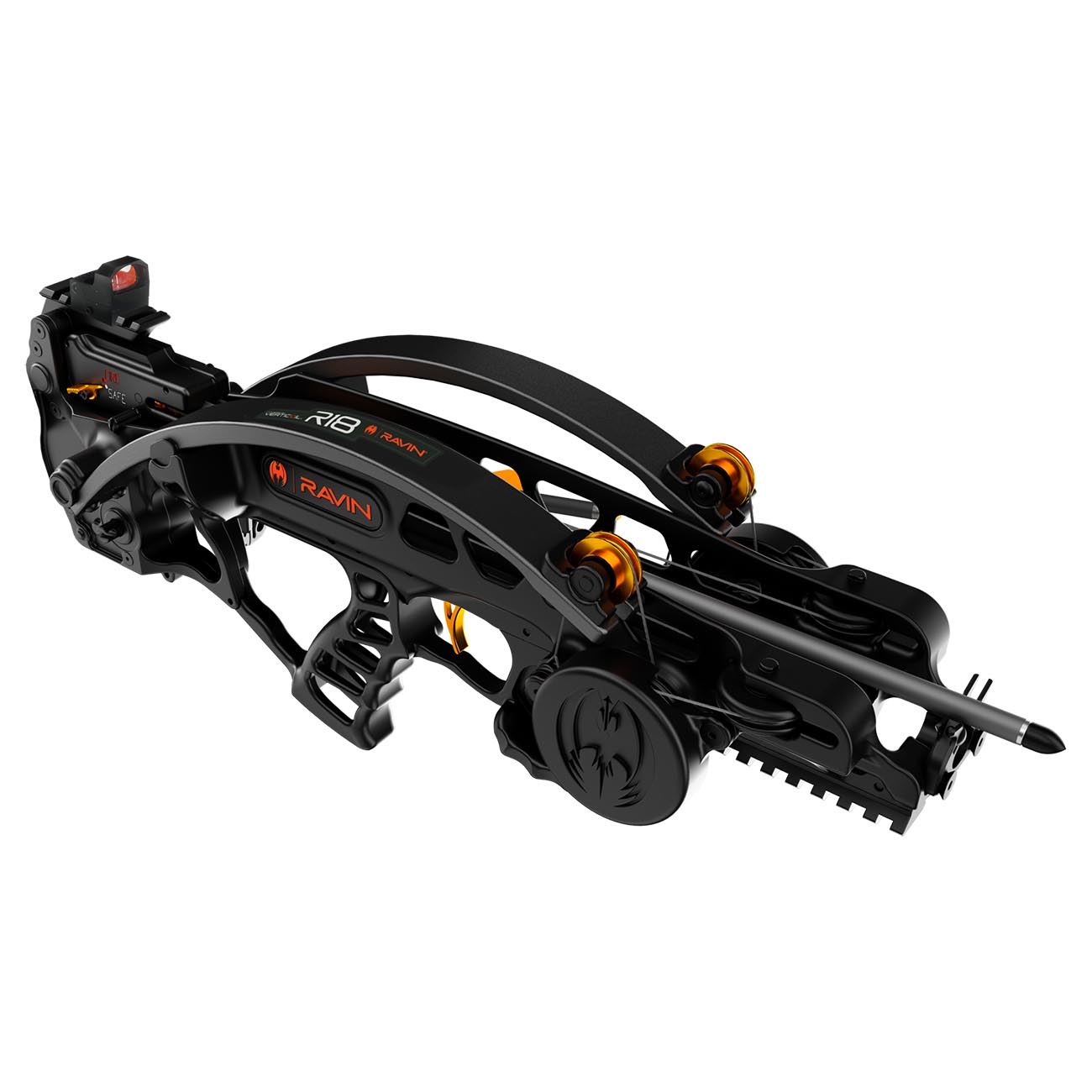

Ravin R18 Crossbow
SPEED: 330 FPS
Utilizing the new proprietary VertiCoil Cam System, the R18 is the shortest Ravin ever created at just 18 inches in length. The VertiCoil Cam System rotates the ultra-small cams 720 degrees, coiling the strings and cables around the cam and cam axle allowing an axle-to-axle height of just 1.3 inches cocked or 4.1 inches when uncocked, with a static overall width of 4.75”. The R18 is a takedown style crossbow with limbs that expand vertically, shooting 330 feet per second. The R18 includes a detachable stock with an integrated removable quiver system, making the total length roughly 25 inches when fully in-tact. The unique 6-pound crossbow features the new Ravin 3-Dot Reflex Sight for easy target acquisition, and includes the Ravin built-in cocking mechanism, allowing for an easy draw.
• 330 FPS (350 GR.)
• Weight: 6 LBS
• Length:18” Without Stock, 25” With Stock
• Height Axle to Axle Cocked: 1.3”
• Height Axle to Axle Uncocked: 4.1”
• Overall Width: 4.75”
• Power-Stroke: 13”
• Kinetic Energy: 85 FT LBS
• Draw Effort: 12 LBS
• Draw Weight: 250#
• VertiCoil Cam System
• Detachable Stock/Quiver
• Fully Assembled/Pre-Tuned
• (3) 16” .003 350 Grain R18 Arrows with Field Points
• (1) Removable Draw Handle
• Ravin 3 Dot Reflex Sight
• Built-In Cocking Mechanism
• Anti-Dry Fire/Auto Safety
• Built-in Sling Mounts
Includes: Fully Assembled Ravin Crossbow, Ravin 3-Dot Reflex Sight, 3-Pack of 16” .003 R18 Arrows & Field Points (350 Grain Total), R18 Draw Handle, and Detachable Stock with Integrated Quiver System
