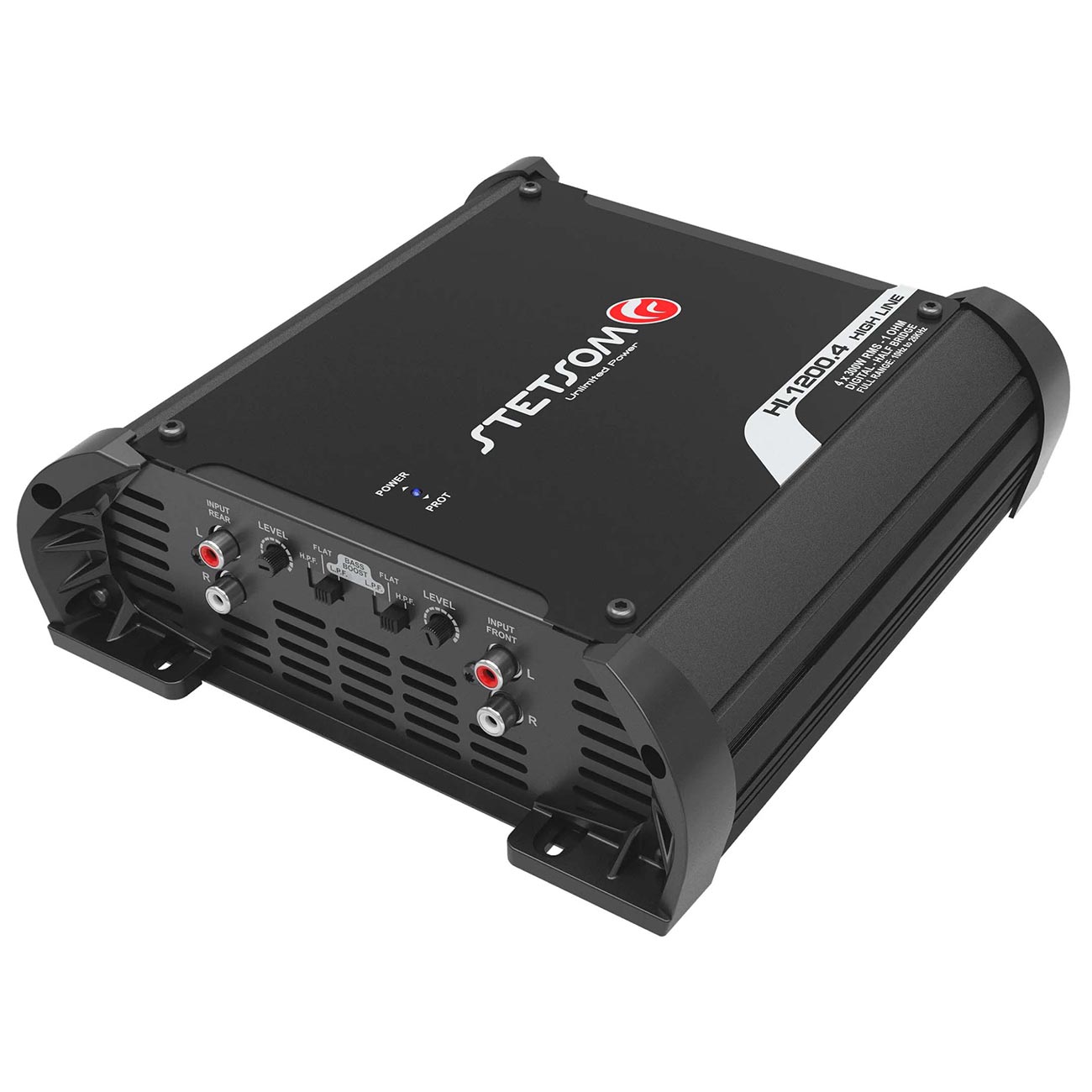

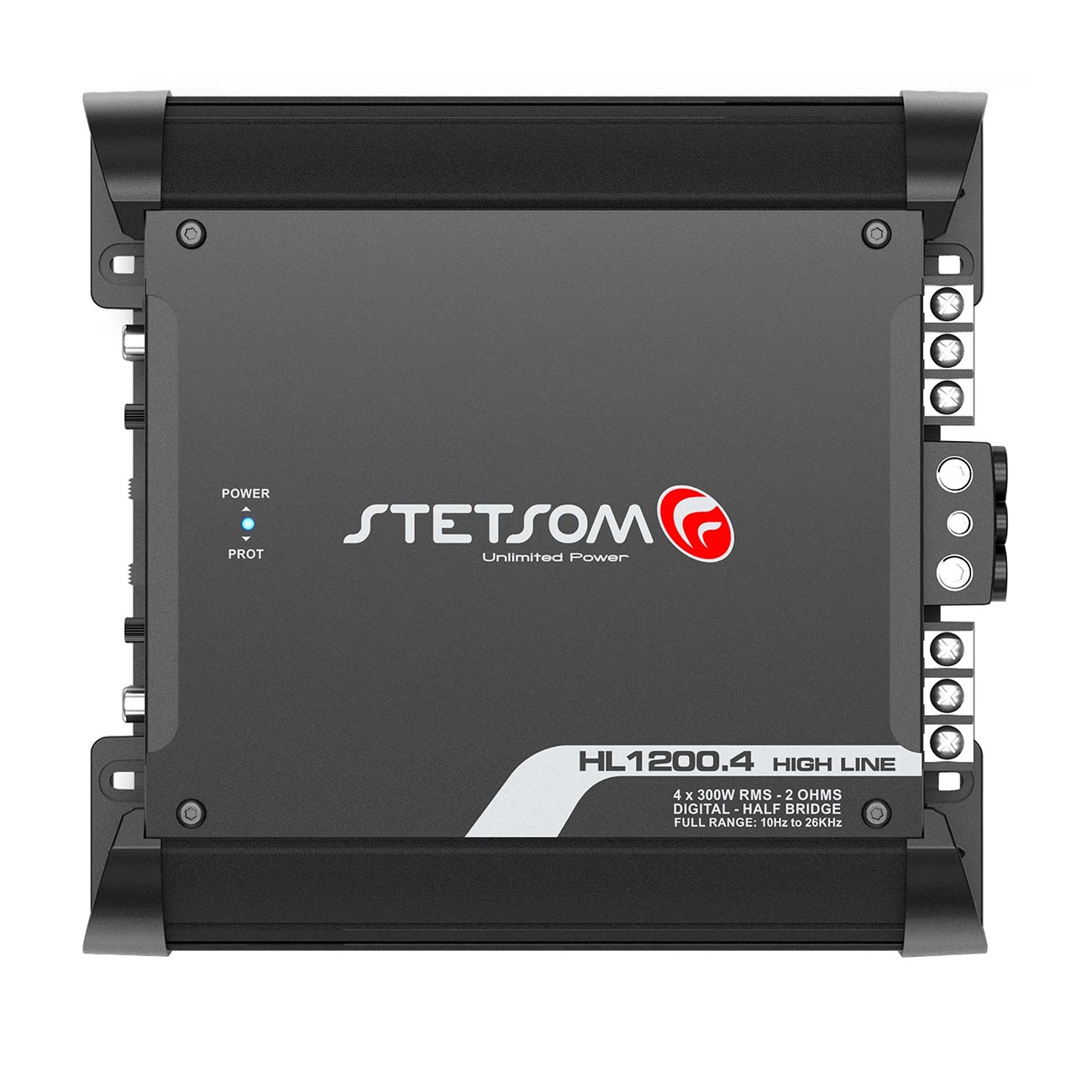

Stetsom *20375* High Line Digital 4 Channel Amplifier, 1200W RMS @2ohm
4 x 300W RMS @ 2 Ohm (12.6V)
4 x 160W RMS @ 4 Ohm (12.6V)
2 x 600W RMS @ 4 Ohm (12.6V) Bridged
(H x W x L): 2.5″ x 8.1″ x 8.5″
Recommended Fuse: 100A (Not Included)
4 x 357W RMS @ 2 Ohm (14.4V)
4 x 217W RMS @ 4 Ohm (14.4V)
2 x 715W RMS @ 4 Ohm (14.14V) Bridged
Class D
2 Ohm Stable
Supply Voltage: 9V ~ 15V DC
Frequency Response: 10 Hz ~ 26 kHz
Crossover Low Pass: 90 Hz
Crossover High Pass: 90 Hz
Bass Boost: +12dB (Low Pass)
Signal to Noise: >90 dB
Harmonic Distortion: < 0.3% THD

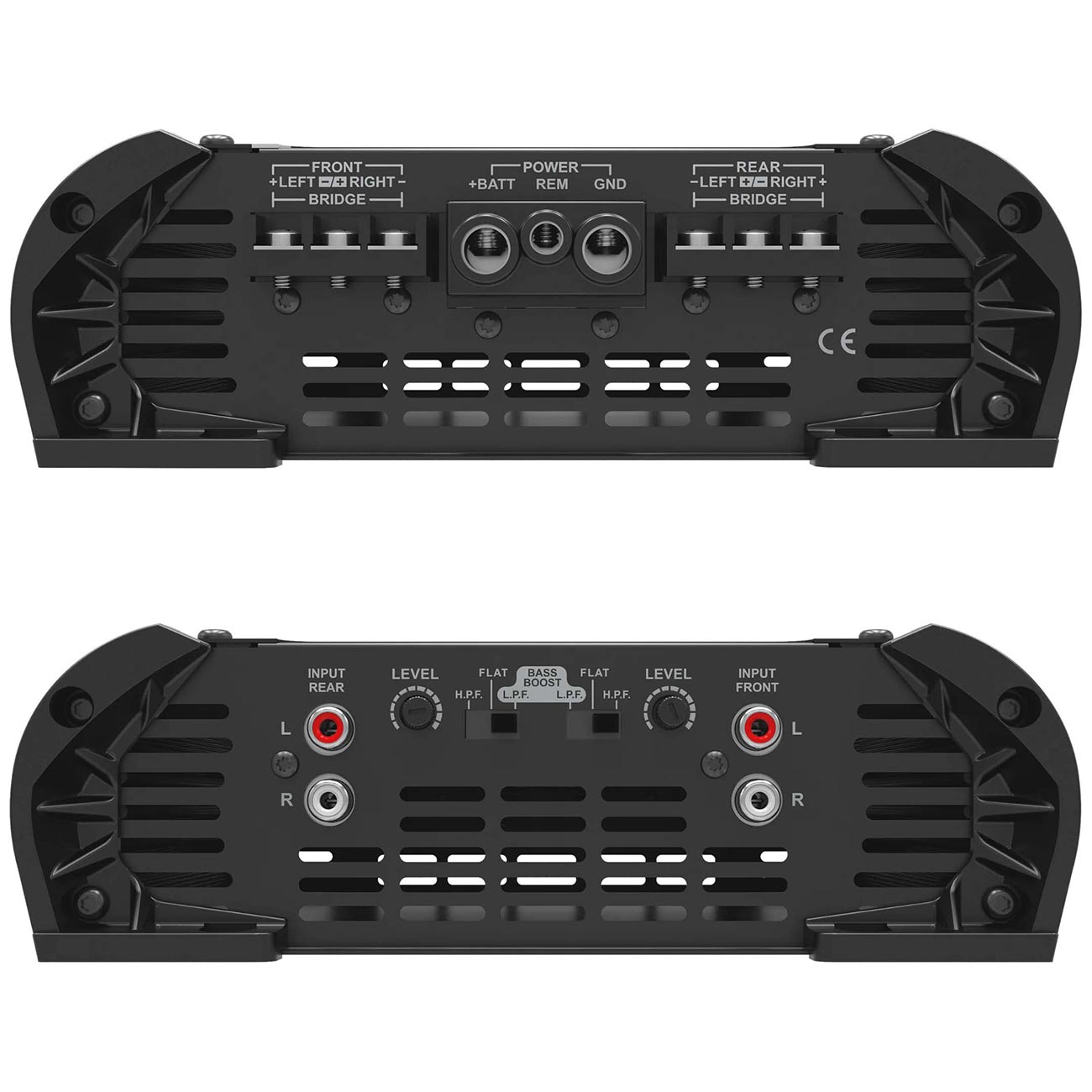

RCA Inputs
Input Impedance: 14 KOhms
Fan Cooling
Musical Consumption: 53A
BASS Consumption: 106A
