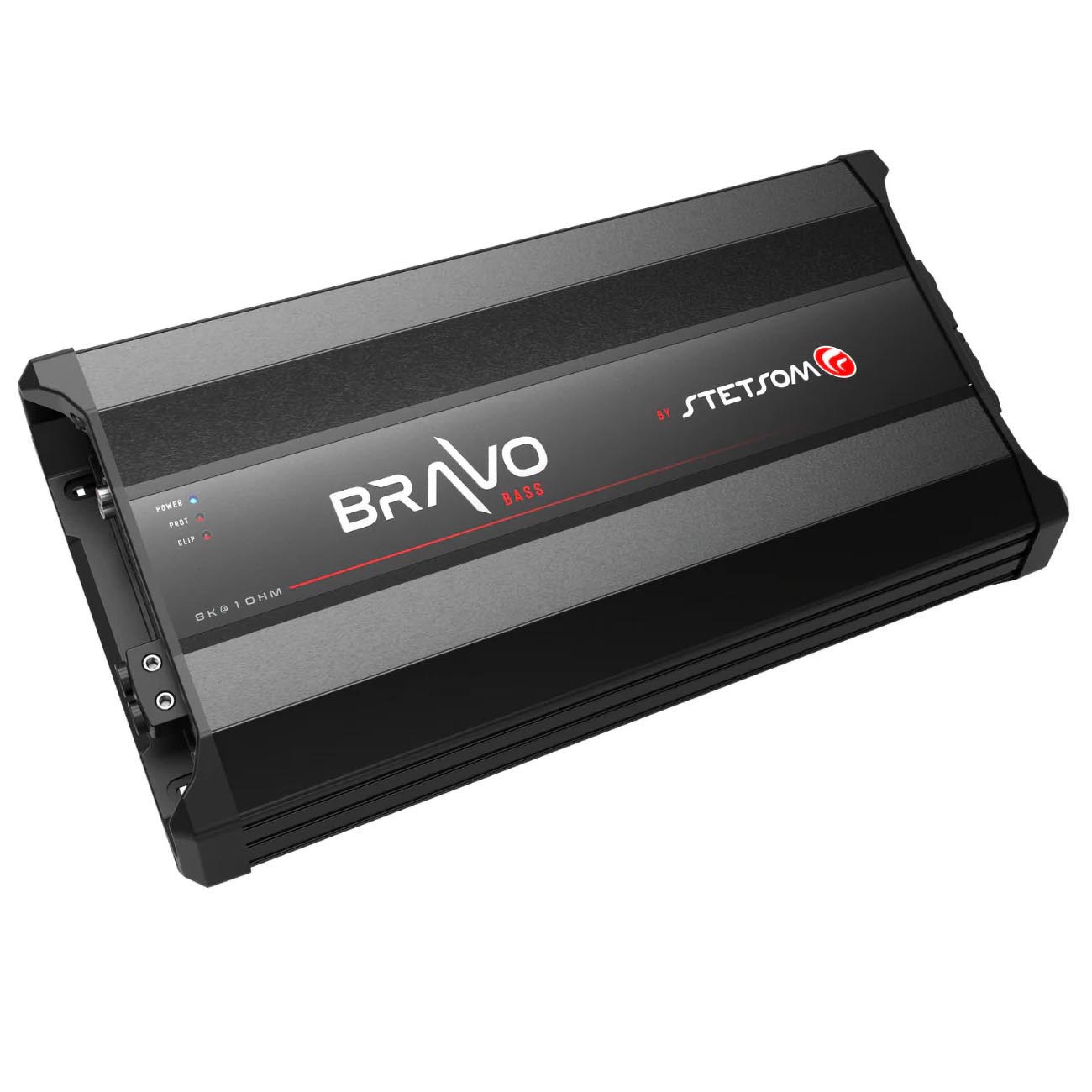

Stetsom *20637* Bravo Bass Digital Monoblock Amplifier, 8200W RMS @ 1ohm
1 x 8200W RMS @ 1 Ohm (14.4V)
1 x 4900W RMS @ 2 Ohm (14.4V)
(H x W x L): 3.14″ x 9.11″ x 16.49″
Recommended Fuse: 400A (Not Included)
Class D
1 Ohm Stable
Supply Voltage: 9V ~ 17V DC
Frequency Response (-3dB): 5Hz ~ 600Hz (FLAT ON)
Frequency Response (-3dB): 5Hz ~ 250Hz (FLAT OFF)
Crossover Low Pass: 30Hz ~ 250Hz
Crossover Subsonic Filter: 5Hz ~ 40Hz
Bass boost: 0 ~ +10dB (30Hz ~ 70Hz)
Signal to Noise: >90 dB
Input Impedance: 4.8K Ohms
Musical Consumption: 365A
BASS Consumption: 730A
RCA Inputs
LED Indicators: Power/Protect/Clipping
Smart protection system: Short, Temperature, Over/Under Voltage
