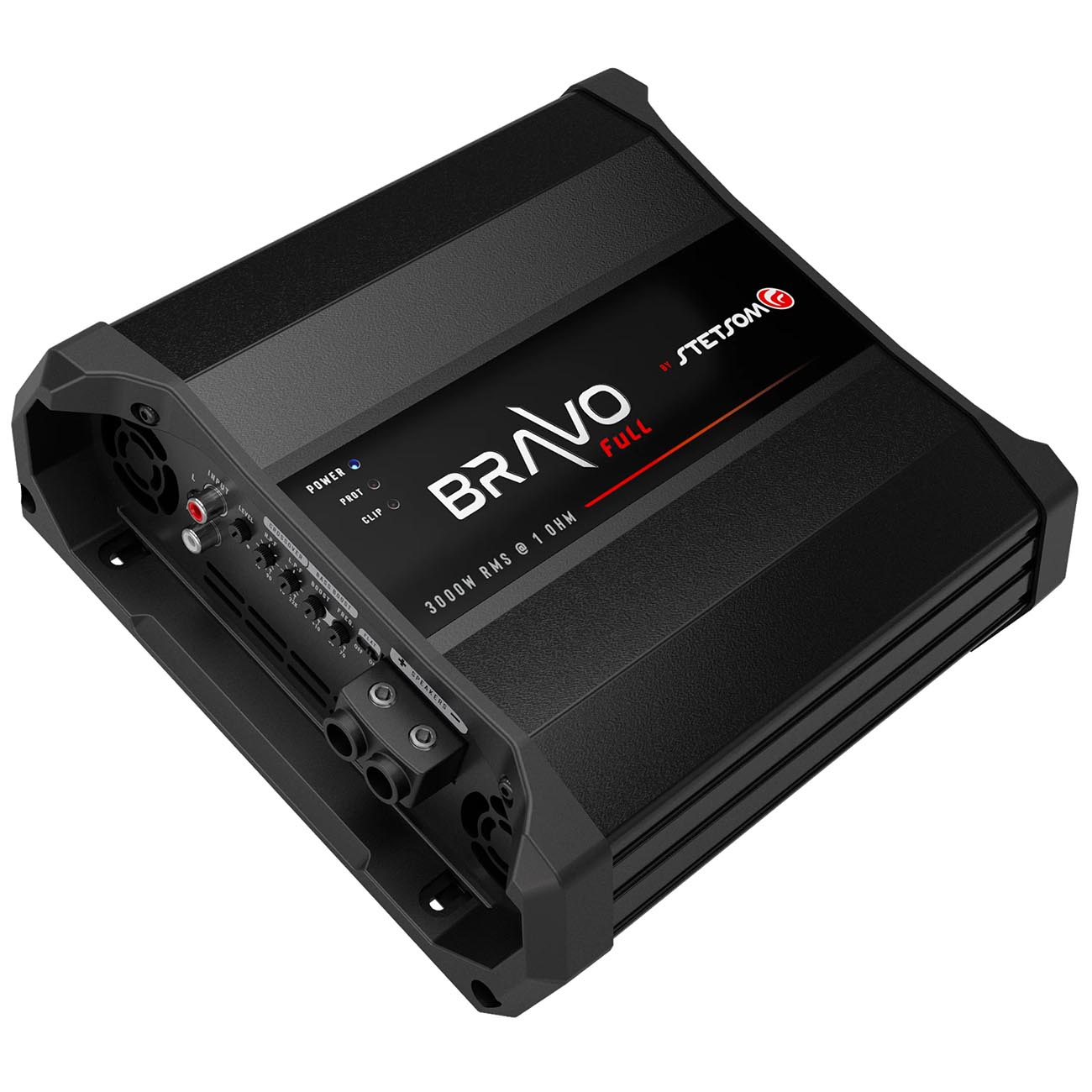

Stetsom *20670* Bravo Full Digital Monoblock Amplifier, 3100W RMS @ 1 ohm
1 x 3100W RMS @ 1 Ohm (12.6V)
1 x 2000W RMS @ 2 Ohm (12.6V)
(H x W x L): 3.14″ x 9.11″ x 9.29″
Recommended Fuse: 150A (Not Included)
1 x 3500W RMS @ 1 Ohm (14.4V)
1 x 2100W RMS @ 2 Ohm (14.4V)
Class D
1 Ohm Stable
Minimum input sensitivity: 200mV
Signal to noise ratio: >90dB
Frequency response (-3dB): 10Hz ~ 22KHz
Crossover low pass: 90Hz ~ 22KHz
Crossover high pass: 10Hz ~ 90Hz
Bass boost: 0dB ~ +10dB (Freq: 30Hz ~ 70Hz)
Input impedance: 18K Ohms
Musical Consumption: 160A
BASS Consumption: 320A

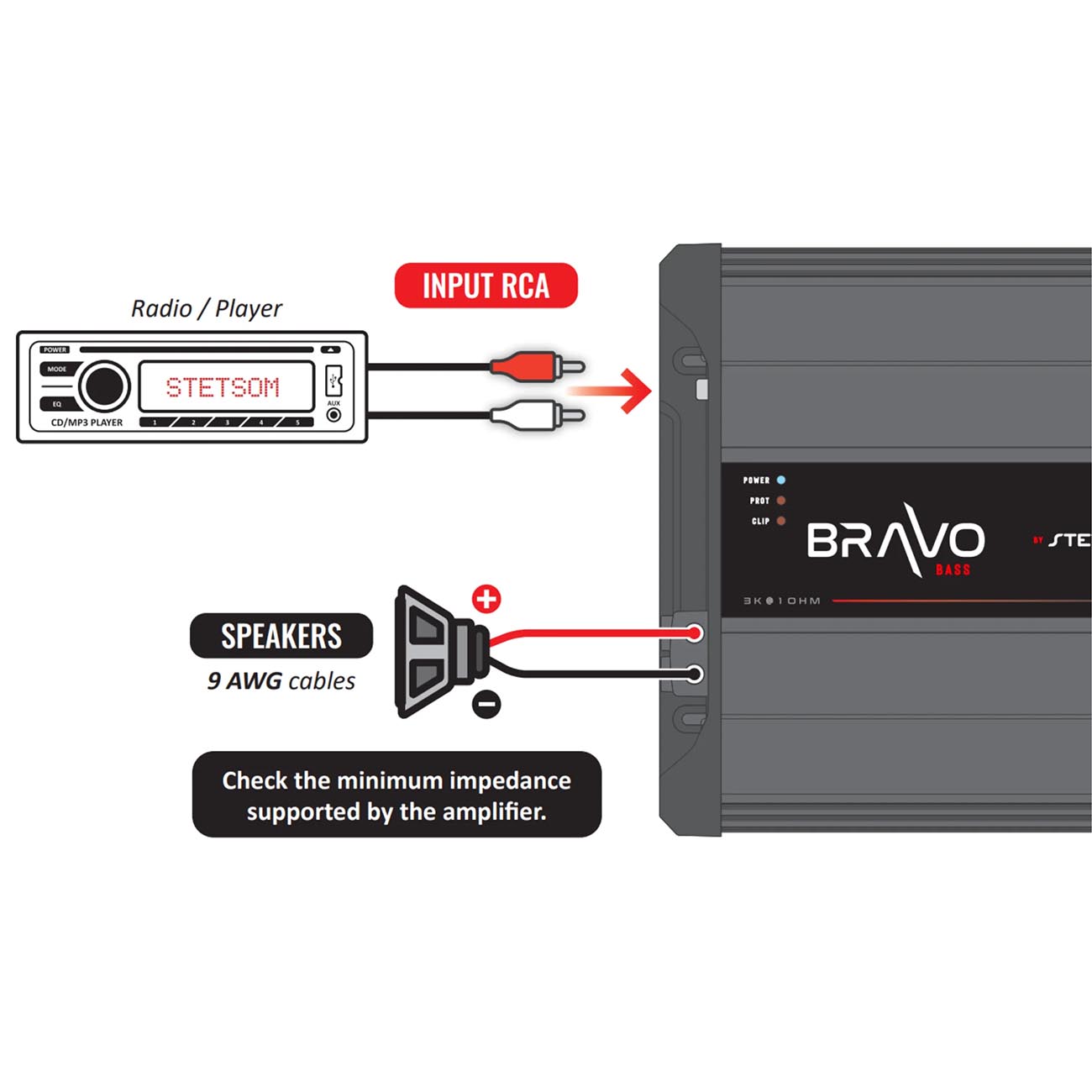

RCA Inputs
LED Indicators: Power/Protect/Clipping
Smart protection system: Short, Temperature, Over/Under Voltage
