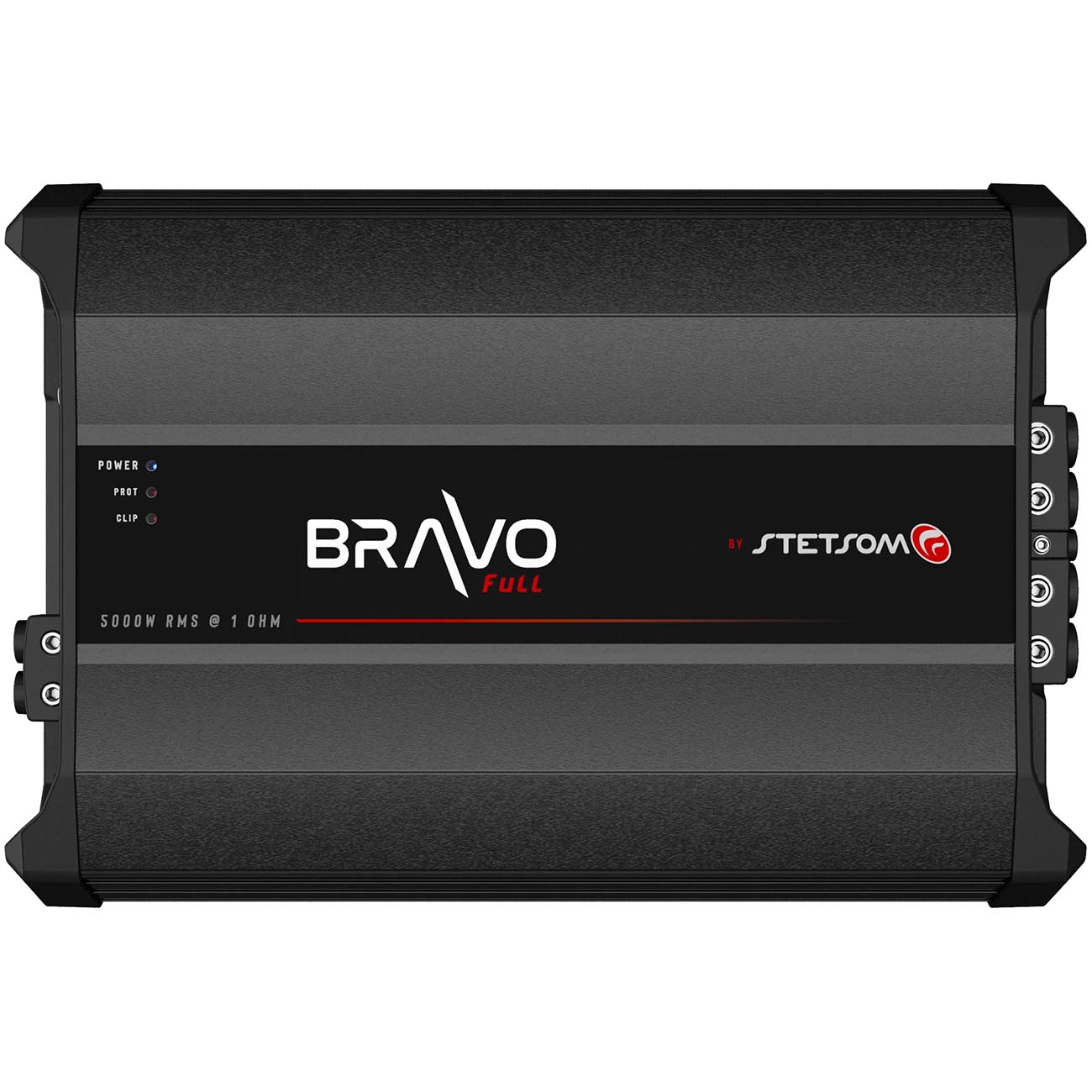

Stetsom *20672* Bravo Full Digital Monoblock Amplifier, 5000W RMS @ 1 ohm
1 x 5000W RMS @ 1 Ohm (12.6V)
1 x 2800W RMS @ 2 Ohm (12.6V)
(H x W x L): 3.14″ x 9.11″ x 13.11″
Recommended Fuse: 250A (Not Included)
1 x 5300W RMS @ 1 Ohm (14.4V)
1 x 3300W RMS @ 2 Ohm (14.4V)
Class D
1 Ohm Stable
Supply Voltage: 9V ~ 17V DC
Frequency Response (-3dB): 10Hz ~ 12kHz
Crossover Low Pass: 90Hz ~ 12kHz
Crossover High Pass: 10Hz ~ 90Hz
Bass boost: 0 ~ +10dB (30Hz ~ 70Hz)
Signal to Noise: >90 dB
Input Impedance: 12K Ohms
Musical Consumption: 242A
BASS Consumption: 485A
RCA Inputs
LED Indicators: Power/Protect/Clipping
Smart protection system: Short, Temperature, Over/Under Voltage
