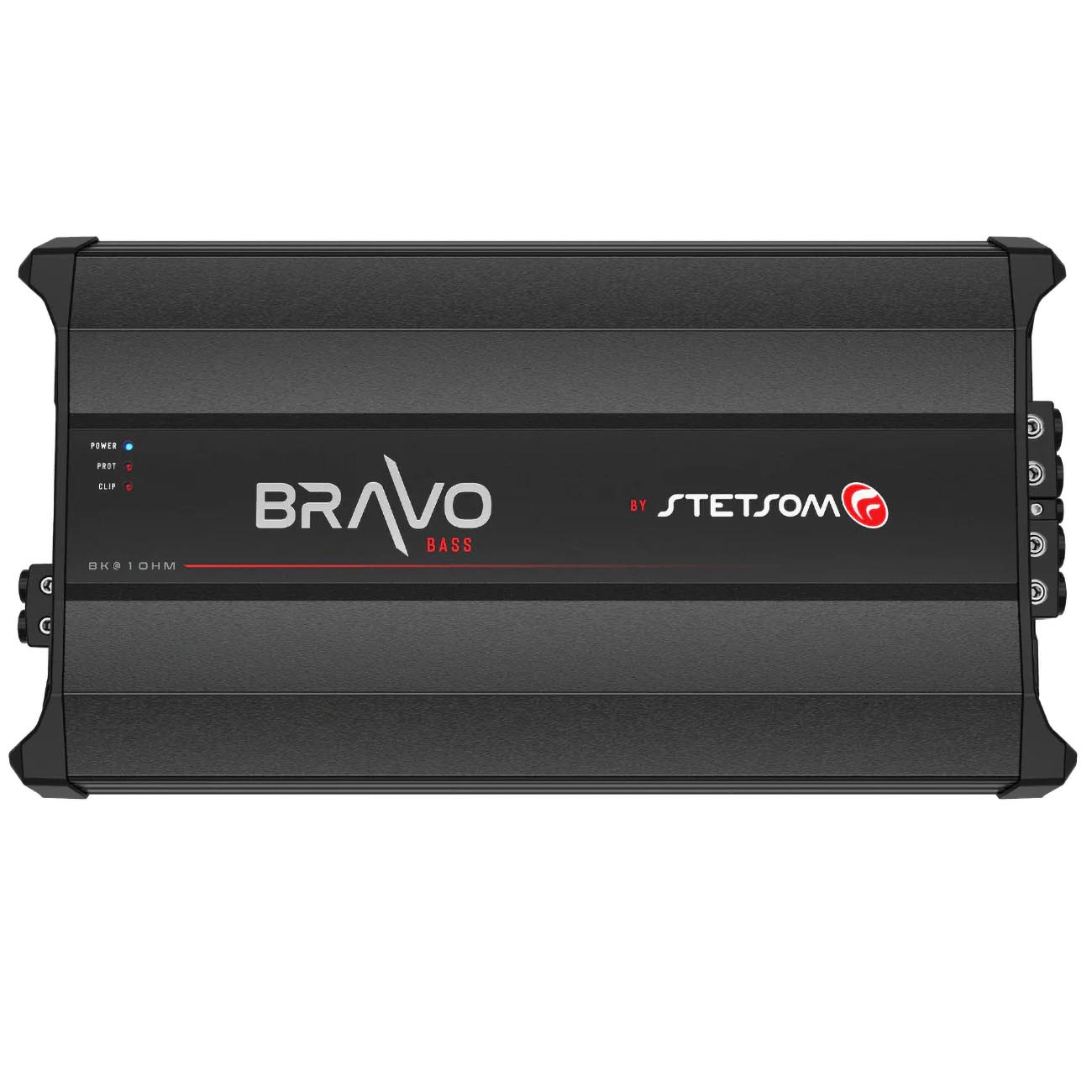

Stetsom *20674* Bravo Full Digital Monoblock Amplifier, 8000W RMS @1ohm
1 x 8000W RMS @ 1 Ohm (12.6V)
1 x 4400W RMS @ 2 Ohm (12.6V)
(H x W x L): 3.14″ x 9.11″ x 16.49″
Recommended Fuse: 400A (Not Included)
1 x 8600W RMS @ 1 Ohm (14.4V)
1 x 5100W RMS @ 2 Ohm (14.4V)
Class D
1 Ohm Stable
Supply Voltage: 9V ~ 17V DC
Minimum input sensitivity: 200mV
Signal to noise ratio: >90dB
Frequency response (-3dB): 10Hz ~ 12KHz
Crossover low pass: 90Hz ~ 12KHz
Crossover high pass: 10Hz ~ 90Hz
Bass boost: 0dB ~ +10dB (Freq: 30Hz ~ 70Hz)
Input Impedance: 14K Ohms
Musical Consumption: 370A
BASS Consumption: 740A
RCA Inputs
LED Indicators: Power/Protect/Clipping
Smart protection system: Short, Temperature, Over/Under Voltage
