Stetsom *20676* Bravo HQ Digital 4 Channel Amplifier, 800W RMS @2ohm
4 x 250W RMS @ 2 Ohm (14.4V)
4 x 170W RMS @ 4 Ohm (14.4V)
2 x 500W RMS @ 4 Ohm (14.14V) Bridged

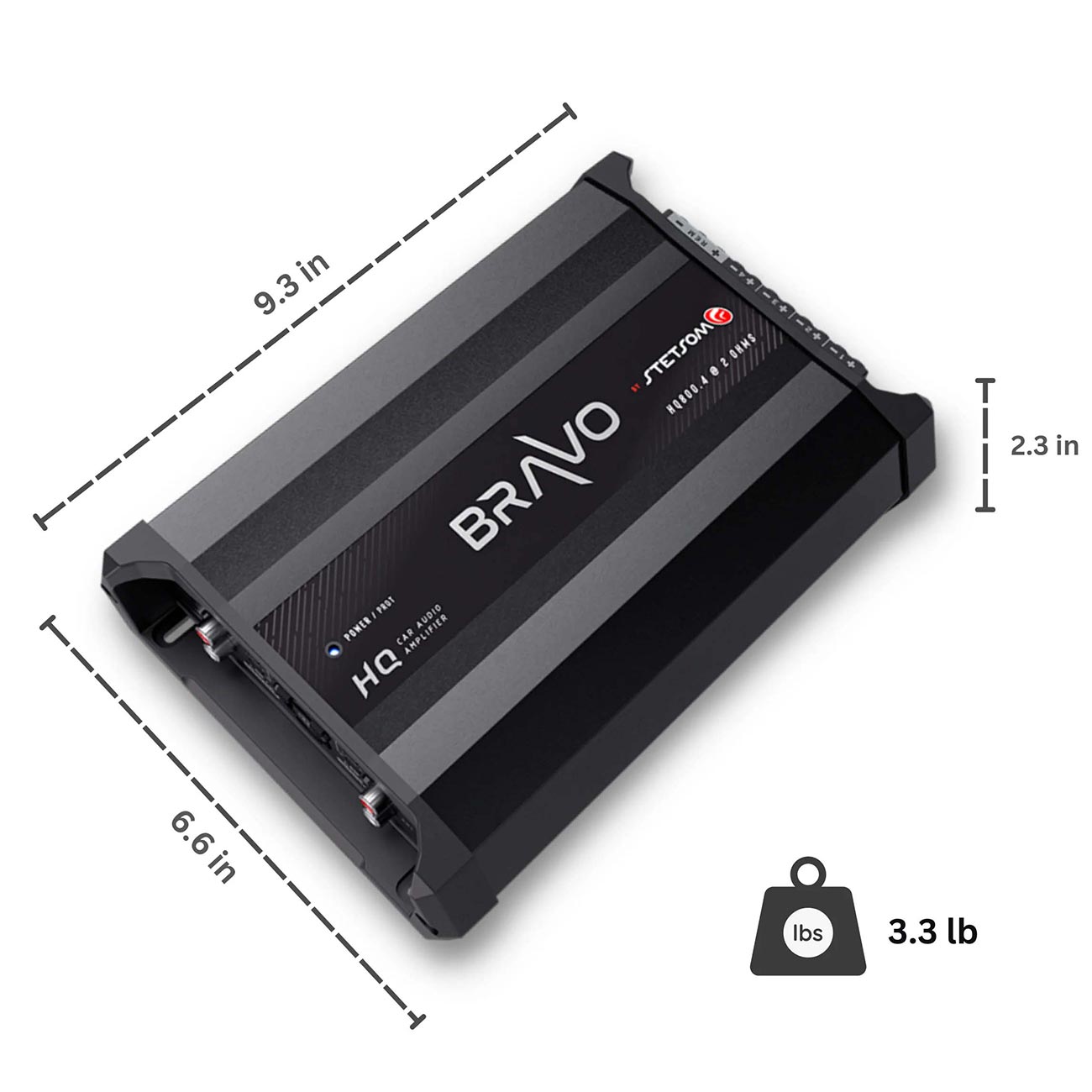

(H x W x L): 2.3″ x 6.6″ x 9.3″
Recommended Fuse: 40A (Not Included)
4 x 200W RMS @ 2 Ohm (12.6V)
4 x 130W RMS @ 4 Ohm (12.6V)
2 x 400W RMS @ 4 Ohm (12.6V) Bridged
Class D
2 Ohm Stable
Supply Voltage: 9V ~ 17V DC
Frequency Response: 5 Hz ~ 30 kHz
Crossover Low Pass: 50 Hz ~ 2.3 kHz
Crossover High Pass: 50 Hz ~ 2.3 kHz
Boost: +12dB (with switch in L.P.F)
Signal to Noise: >80 dB
High/Low Level Inputs
Input Impedance RCA: 18 KOhms
Input Impedance HIGH INPUT: 1 KOhms
Musical Consumption: 43A
BASS Consumption: 86A
