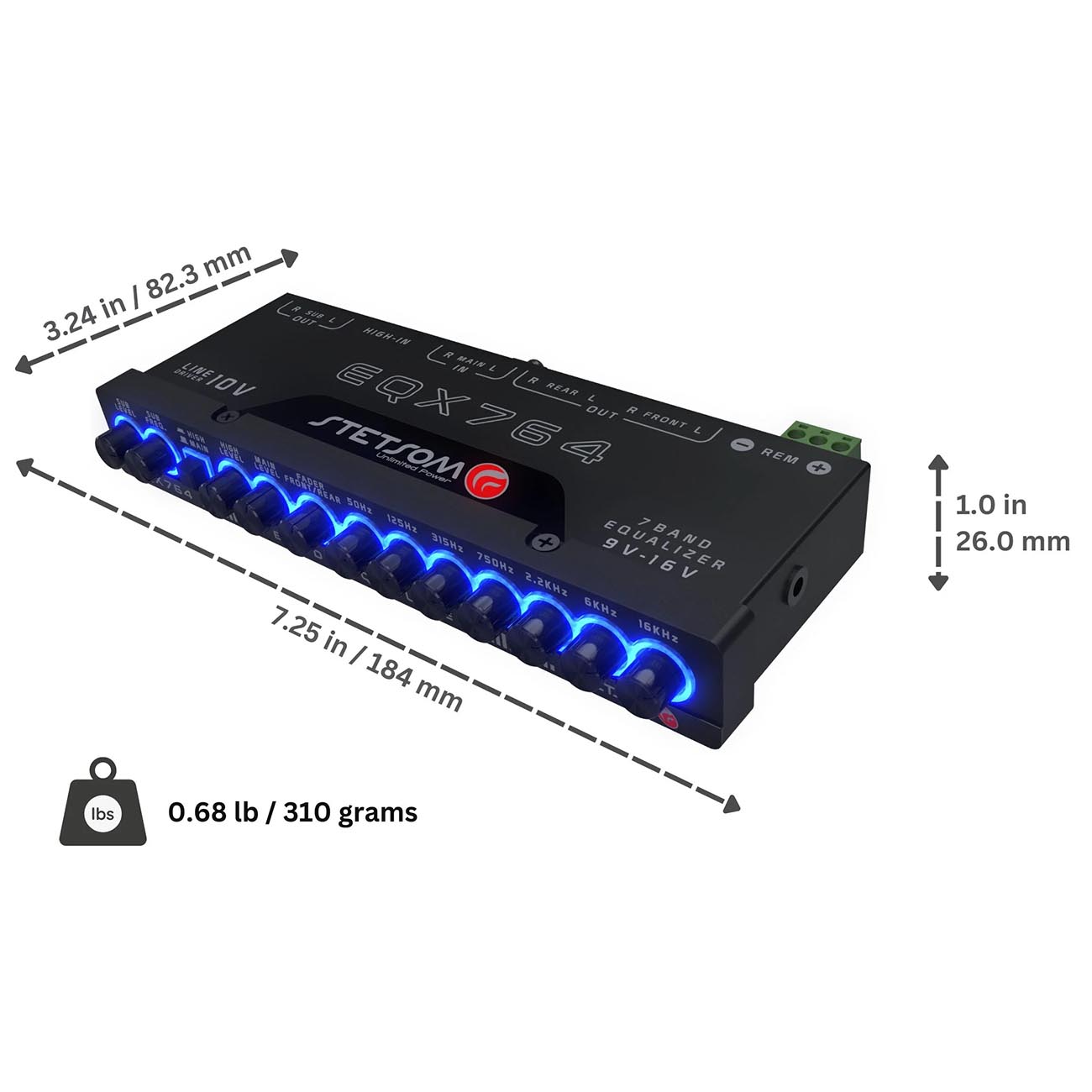

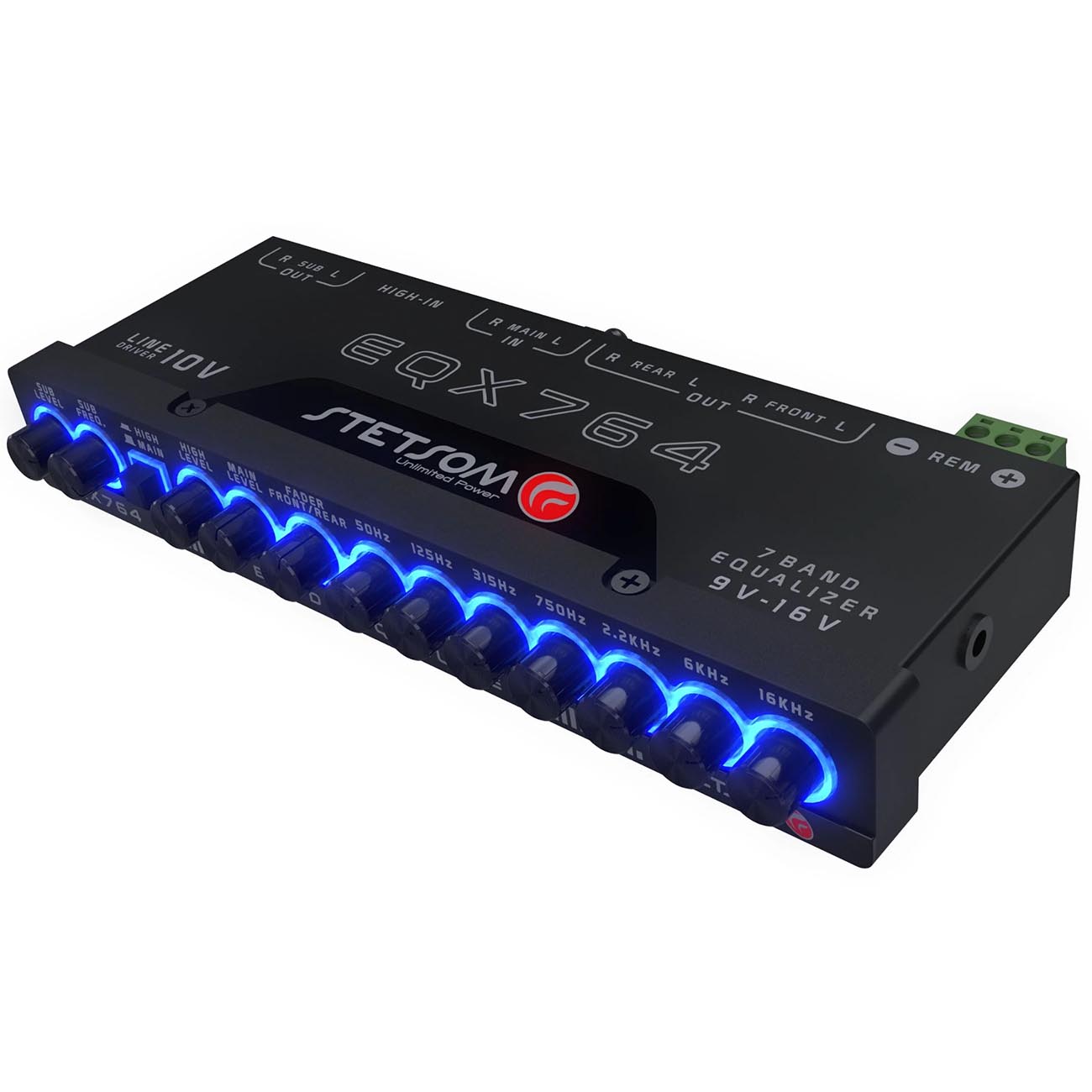

Stetsom *20683* Graphic Equalizer 7 Band Equalization with Modern Blue LED Illumination

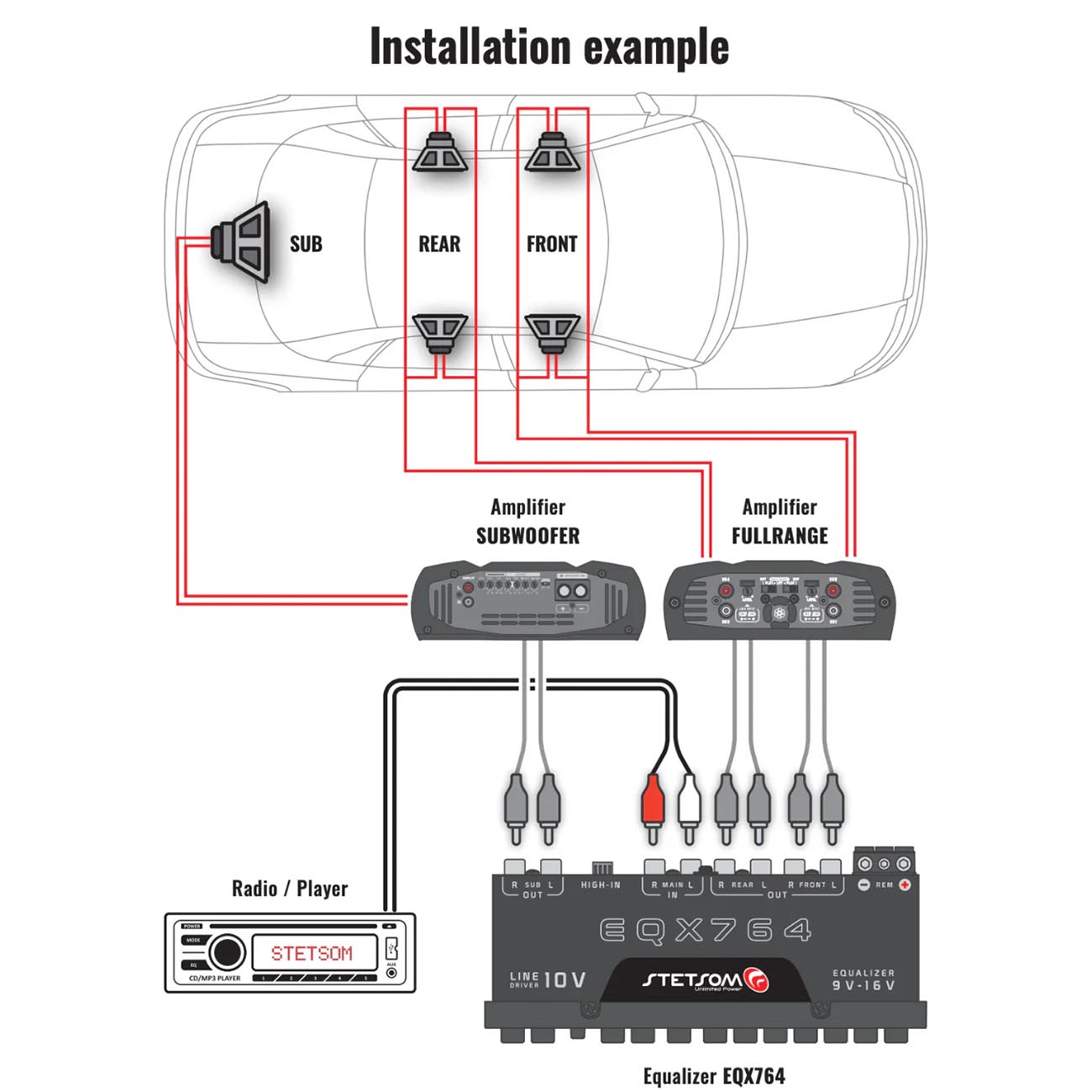

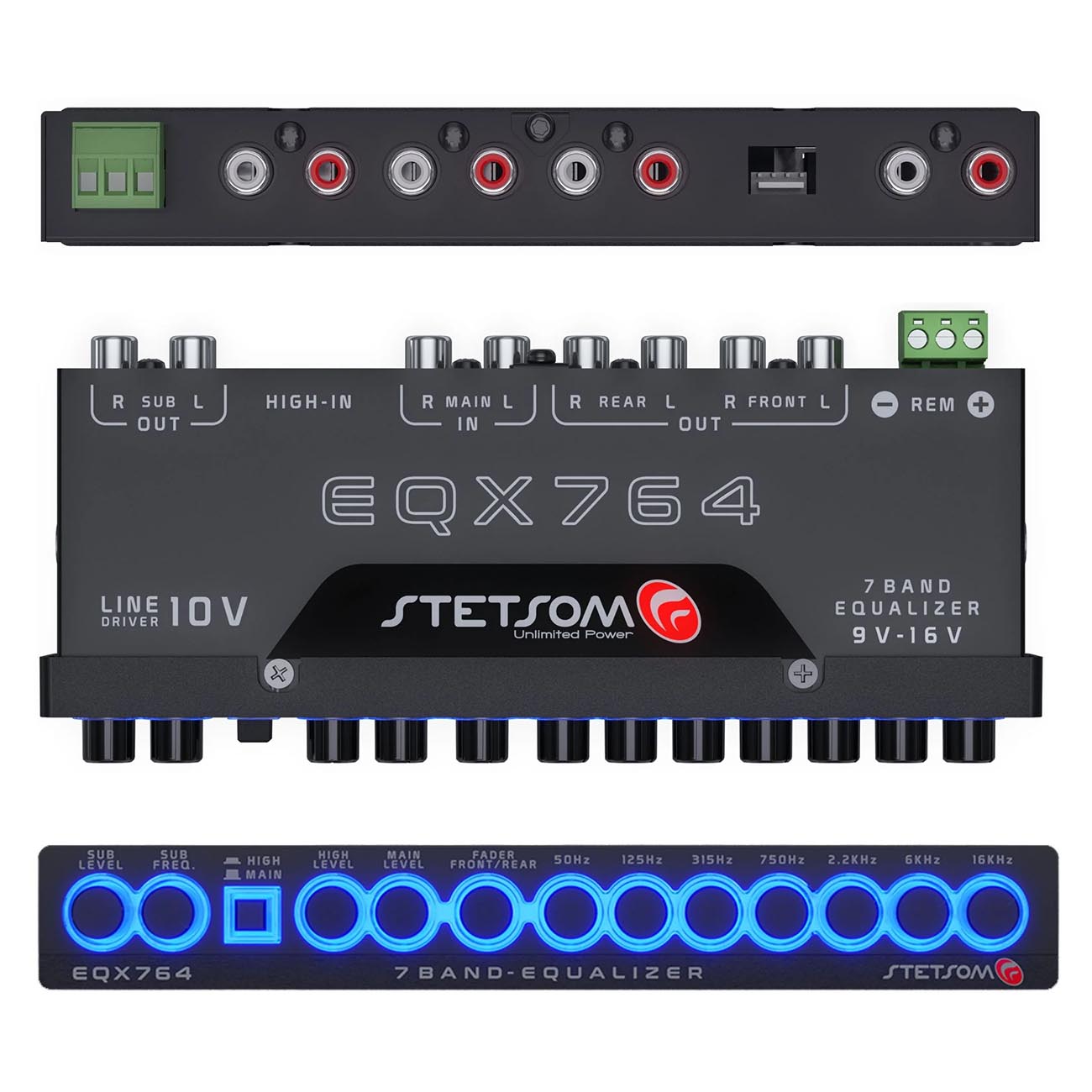

2 input channels and 3 output channels
Frequency controls: Equalizer with 7 bands (50Hz / 125Hz / 315Hz / 750Hz / 2.2KHz / 6KHz / 16KHz)
The equalizer counts with rotary controls for adjustment and equalization of signal in conforming audio wanted:
SUB output control: Set the level and SUB output frequency
Input switch: Hi/Low Level Inputs – Select the input signal channel (MAIN or HIGH)
Input controls: Hi/Low Level Inputs – Individual LEVEL adjustment in each input (HIGH or MAIN)
FADER FRONT/REAR control: Set the balance between the FRONT and REAR outputs

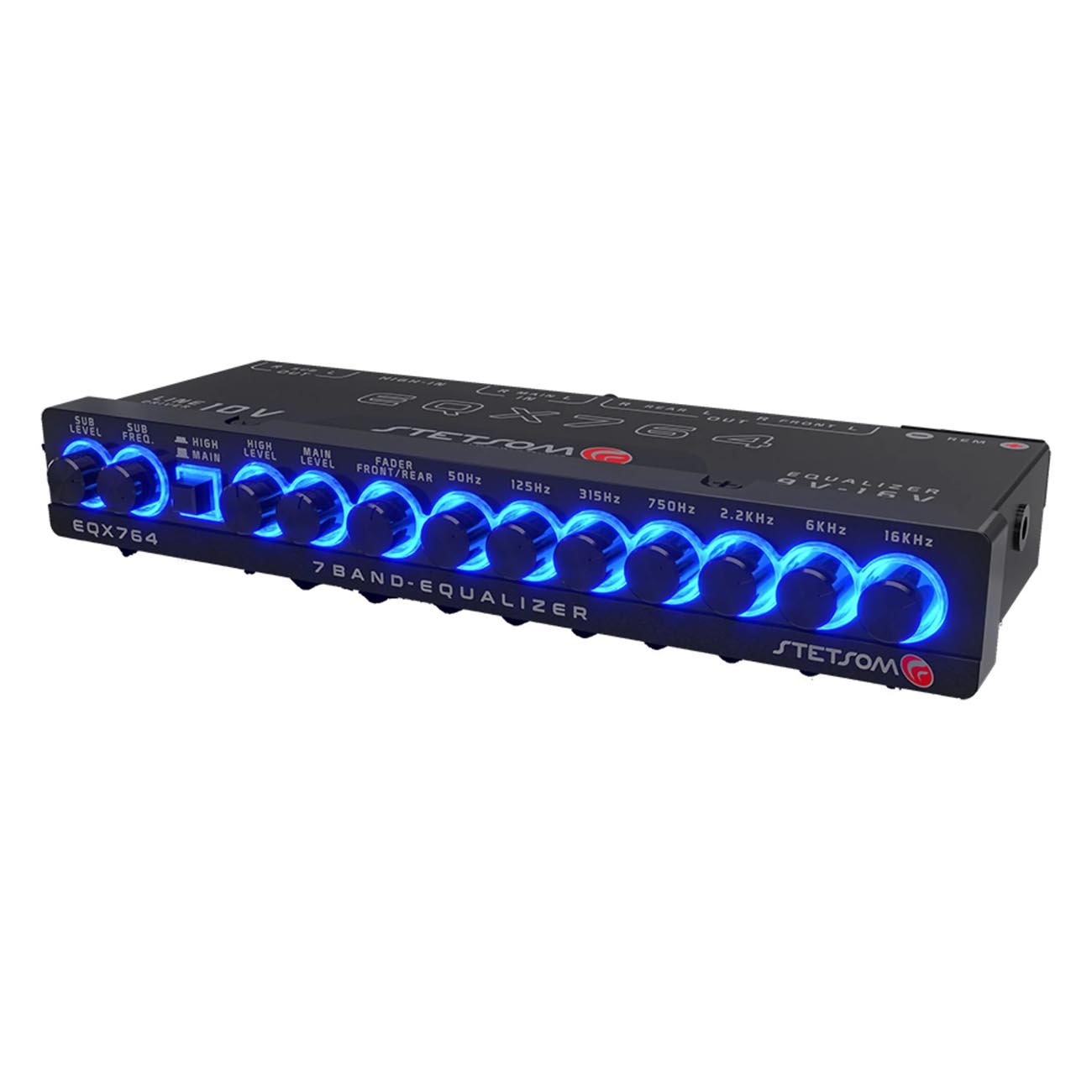

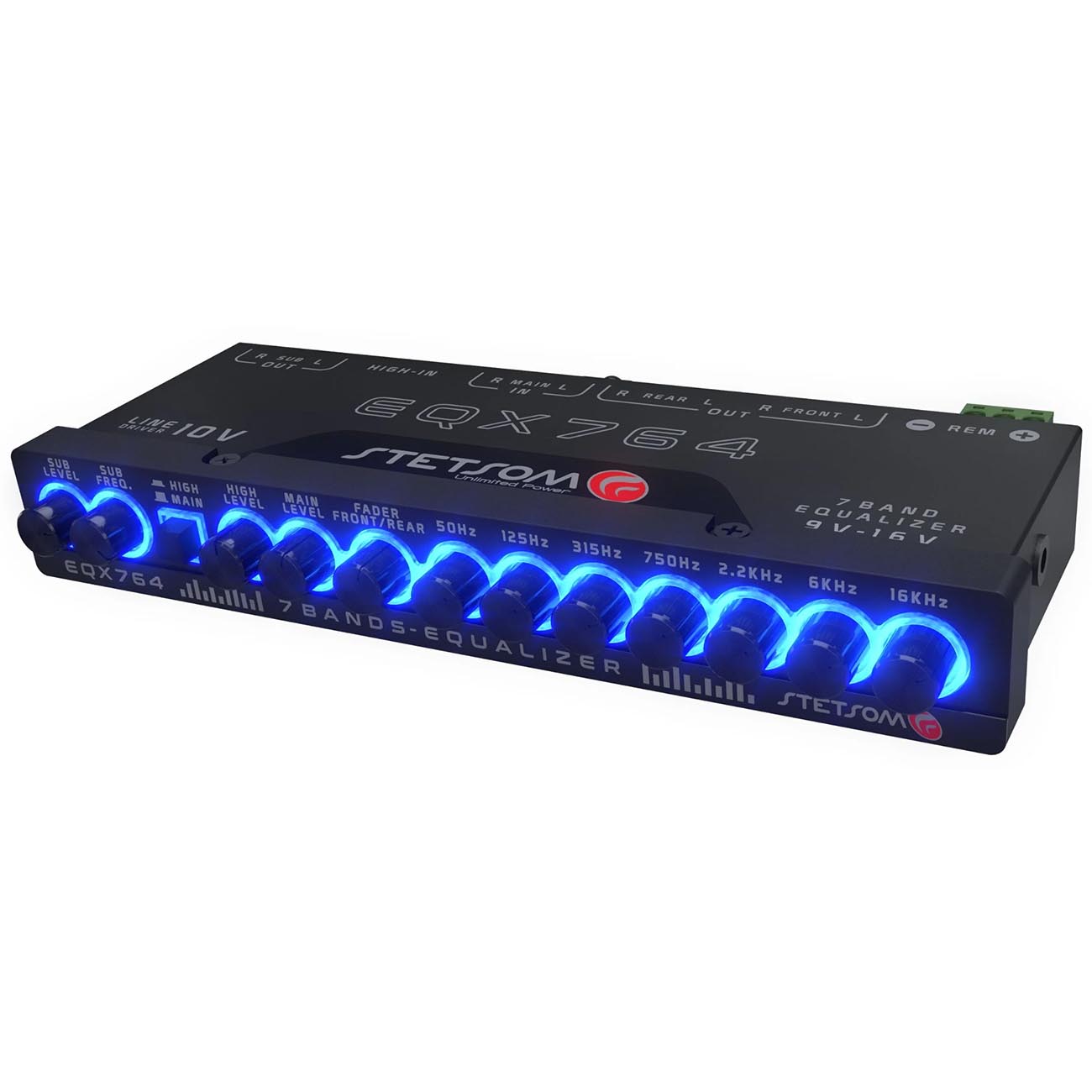

LED lighting: For better control visualization, they lit on a LED frame, at color BLUE
SUB LEVEL: Allows the signal adjustment of the level provided at the output of the SUB channel.
SUB FREQ: Rotary control to select the maximum frequency which will be reproduced by SUB channel. This control can be adjusted from 60Hz to 90Hz.
LEVEL CONTROLS: Rotary controls to individual adjustment of the level signal of audio inputs HIGH and MAIN.
FADER CONTROL: Rotary control for balance adjustment between volume outputs in audio REAR and FRONT.
Protections
Short circuit at Input (Fuse thermal resettable)
Inversion of polarity
