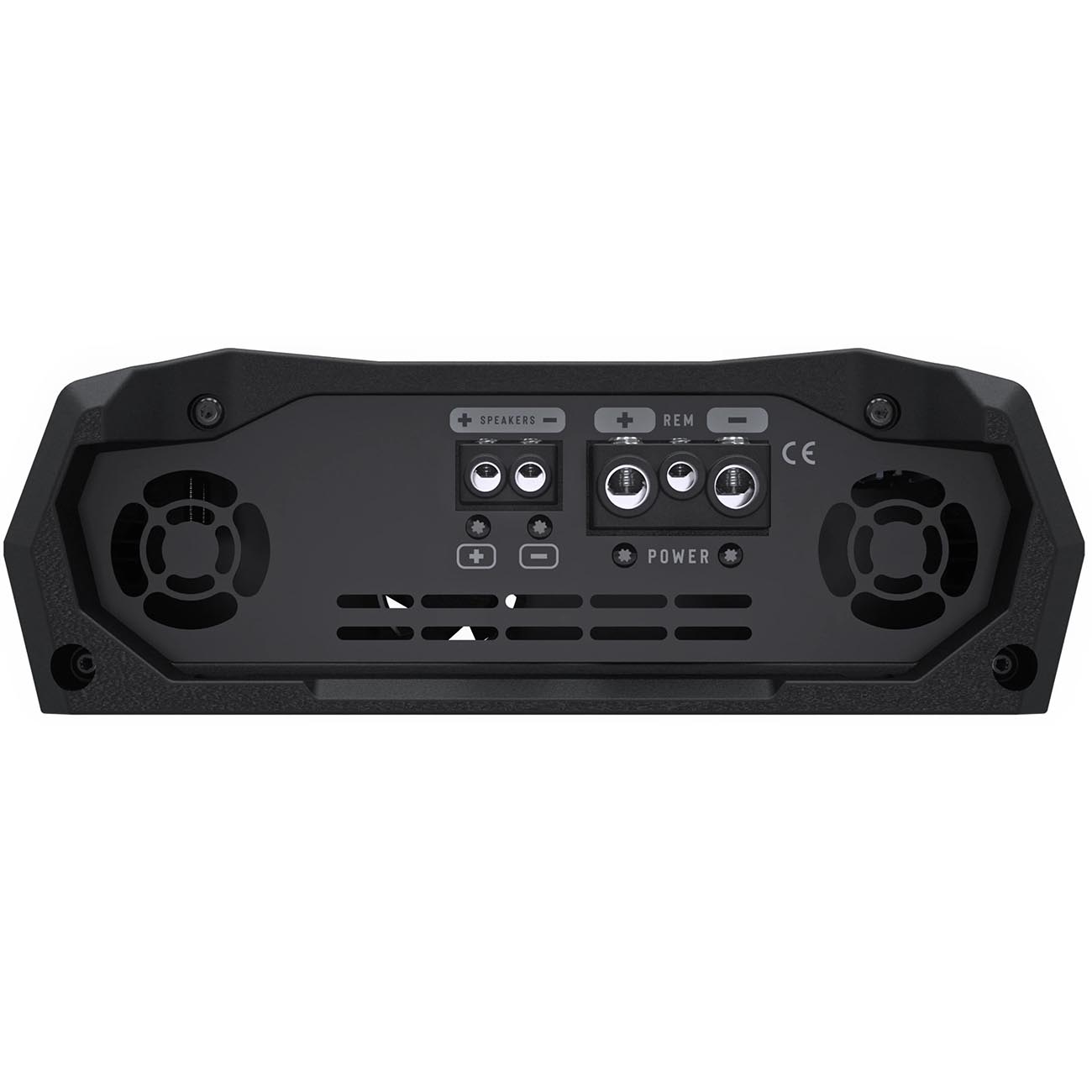

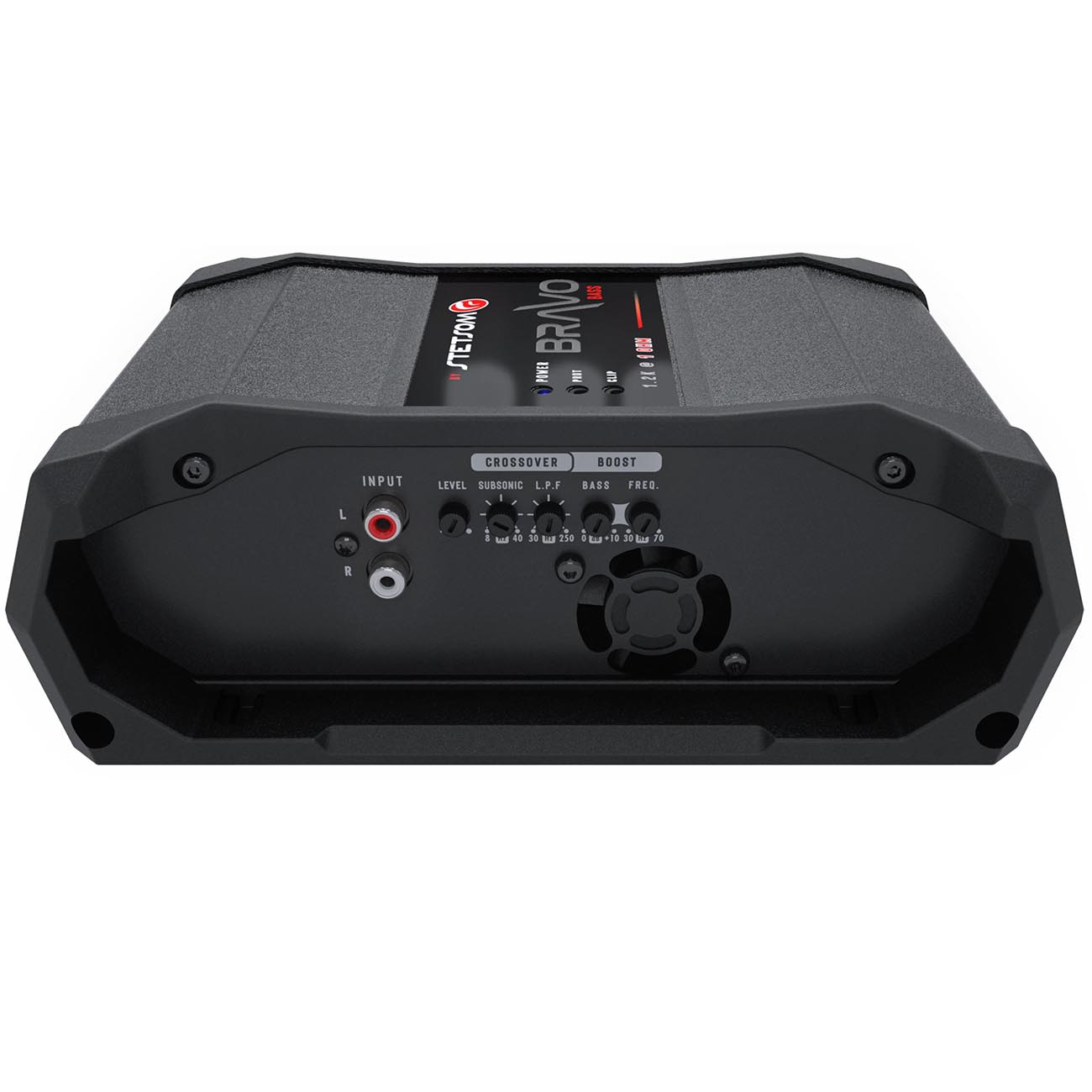

Stetsom *20725* Bravo Bass Digital Monoblock Amplifier, 1200W RMS @ 1 ohm
1 x 1200W RMS @ 1 Ohm (13.6V)
1 x 700W RMS @ 2 Ohm (13.6V)

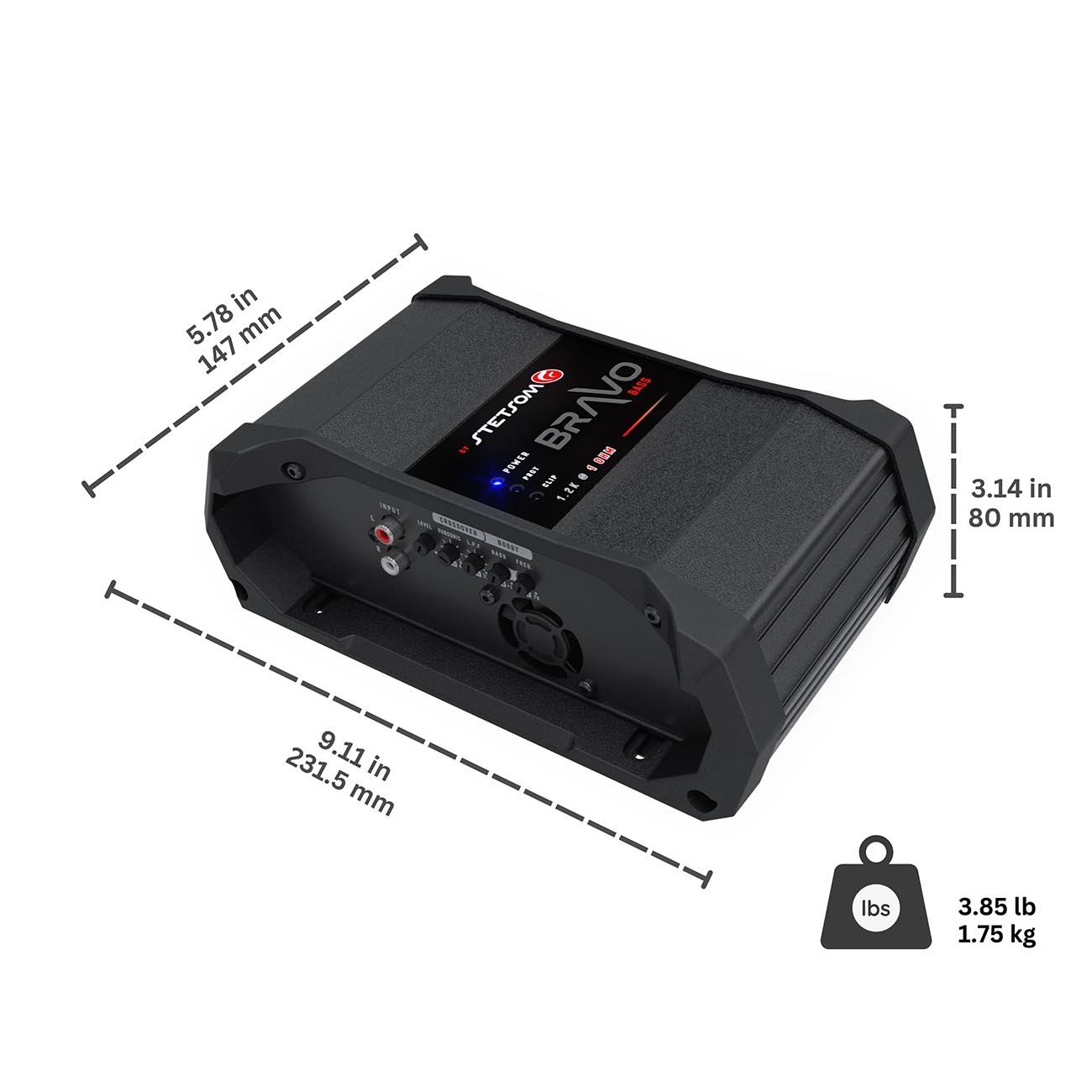

(H x W x L): 3.14” x 9.11” x 5.78”
Recommended Fuse: 70A (Not Included)
1 x 1800W RMS @ 1 Ohm (16.5V)
1 x 1000W RMS @ 2 Ohm (16.5V)
1 x 1500W RMS @ 1 Ohm (15.5V)
1 x 900W RMS @ 2 Ohm (15.5V)
1 x 1300W RMS @ 1 Ohm (14.4V)
1 x 775W RMS @ 2 Ohm (14.4V)
1 x 1000W RMS @ 1 Ohm (12.6V)
1 x 600W RMS @ 2 Ohm (12.6V)
Class D
1 Ohm Stable
Supply Voltage: 9V ~ 17V DC
Frequency Response (-3dB): 8Hz ~ 250Hz
Crossover Low Pass: 30Hz ~ 250Hz
Crossover Subsonic Filter: 8Hz ~ 40Hz
Bass boost: 0 ~ +10dB (30Hz ~ 70Hz)
Signal to Noise: >90 dB
Input Impedance: 5K Ohms
Musical Consumption: 50A
BASS Consumption: 100A
RCA Inputs
LED Indicators: Power/Protect/Clipping
Smart protection system: Short, Temperature, Over/Under Voltage
