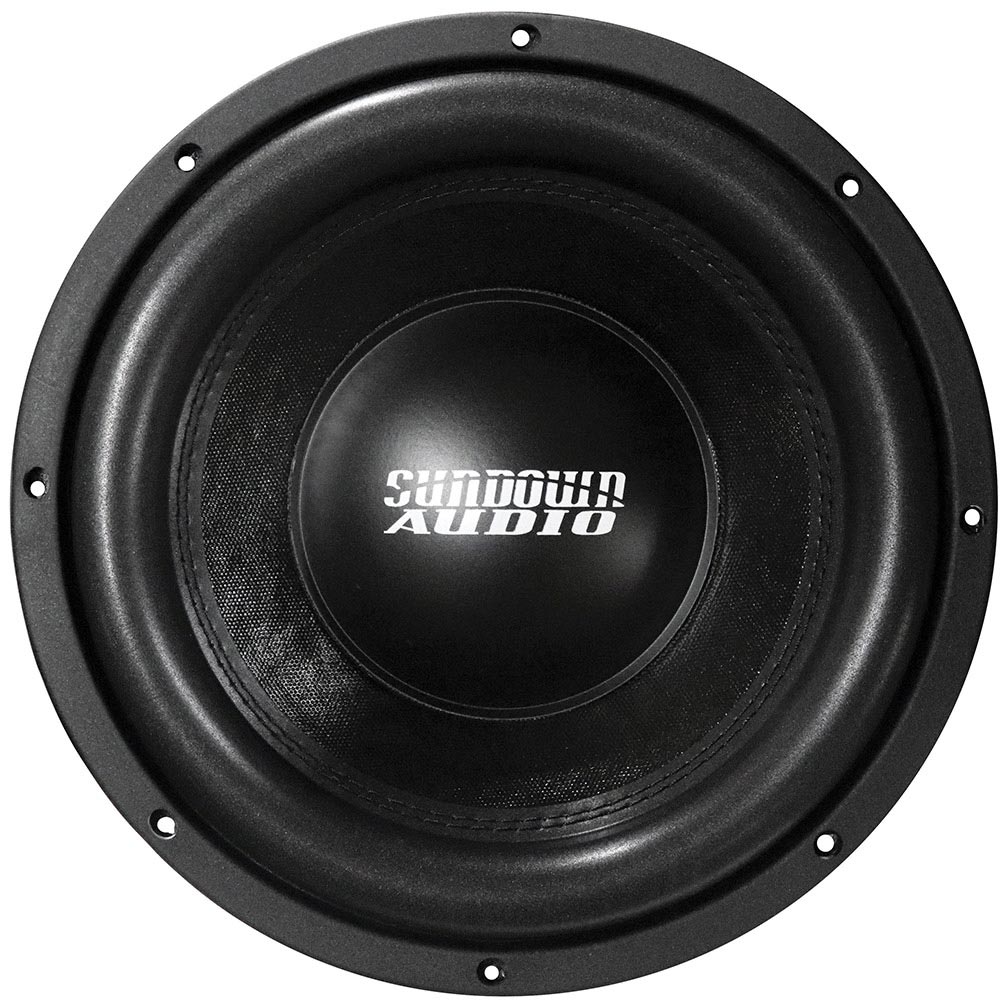

Sundown Audio 10″ Woofer, 750W RMS/1500W MAX, Dual 2 Ohm Voice Coils
1500W MAX
750W RMS
Dual 2 ohm voice coils
Optimized for ported enclosures
Class-leading 14mm Xmax

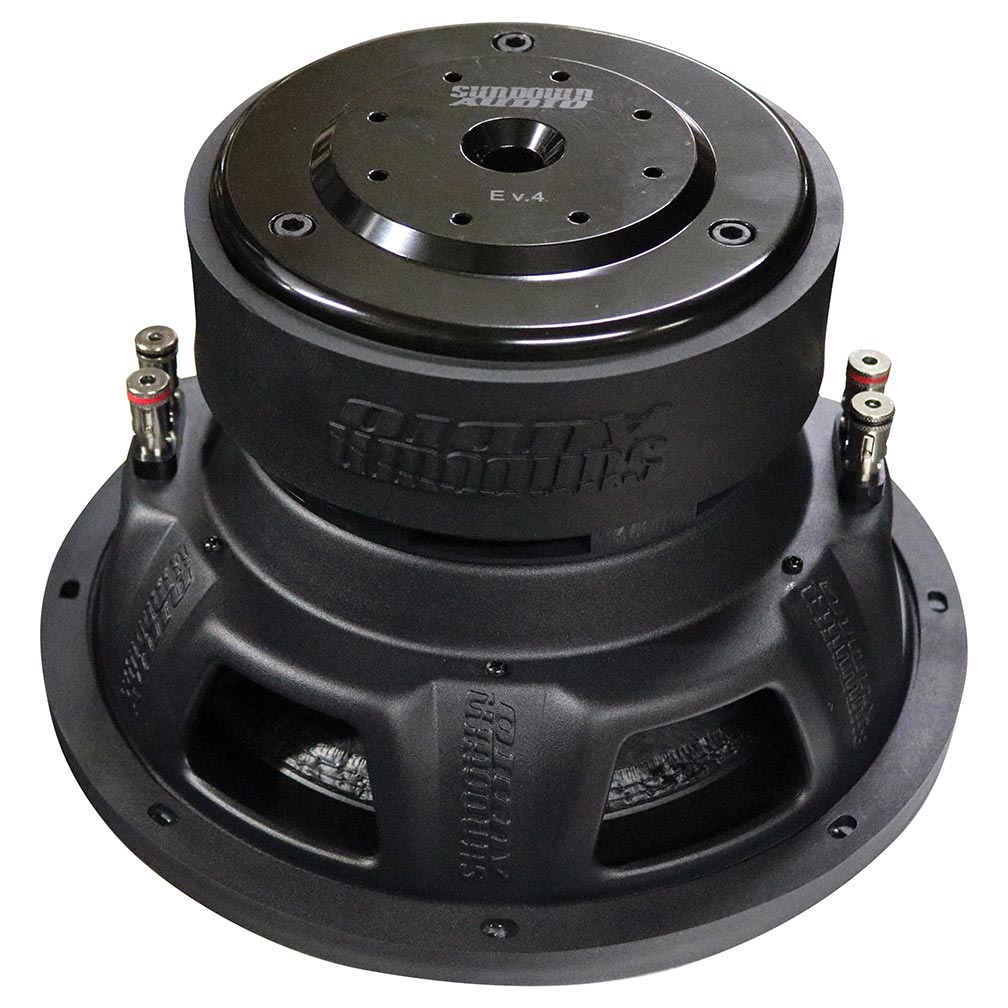

Double-stacked magnet
Vented magnetic gap & pole piece for superior cooling
Optimized 2.5” voice coil
High strength stamped steel frame
High temp 4-layer copper voice coil wire

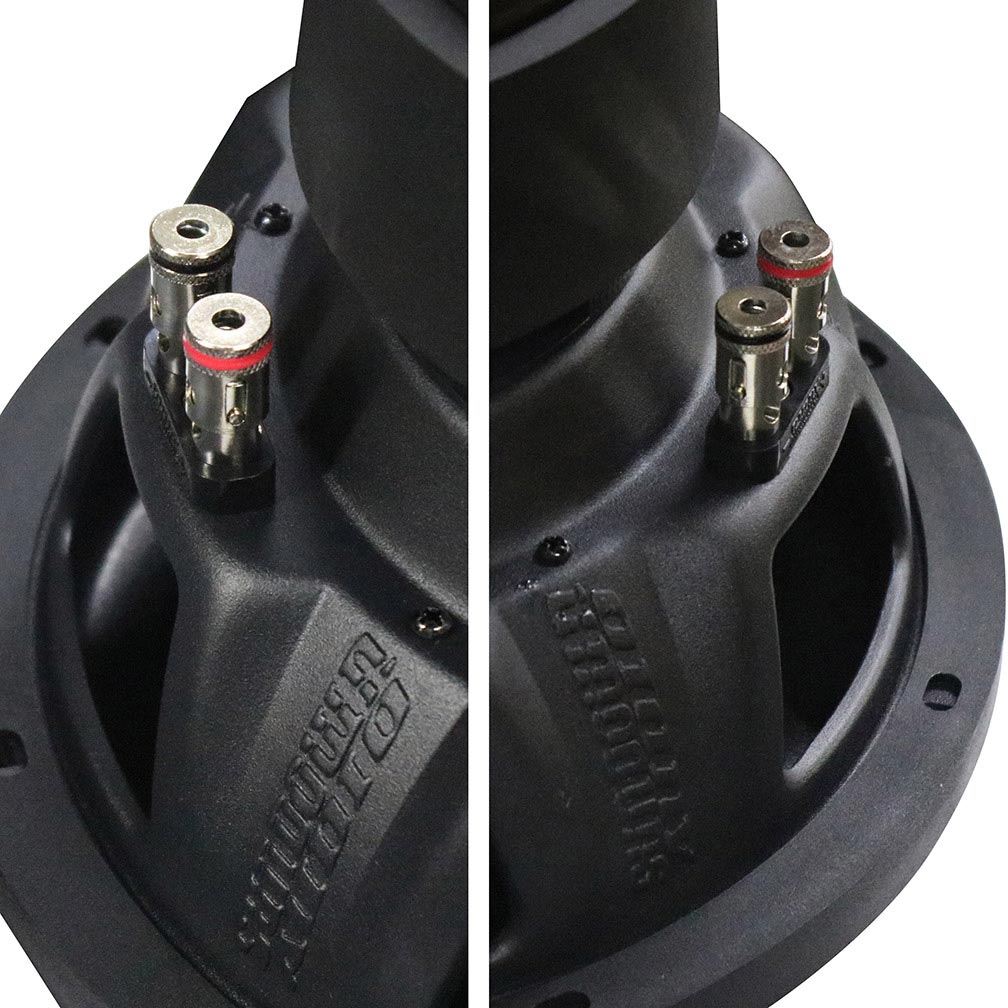

High-quality push terminals
Stitched-on Mini-XL tinsel leads
The subwoofer showcases a distinctive motor design, featuring a heavily vented magnetic gap and solid pole piece, enabling exceptional thermal power handling. The spider itself is a high strength poly-cotton blend designed to handle the full capacity of the motor. To provide an additional level of ruggedness the spider is bolted down and glued to the frame. Its motor geometry allows for a remarkable 14mm one-way linear Xmax, delivering excursion equivalent to far larger cones.
Mount Depth: 5.625″
Outside Diameter: 10.0″
Cutout: 8.875″
Displacement (Inches): .06 cu ft
Motor Diameter (Inches): 6.37
Ported Enclosure Size: 1.0 cu ft
Recommended Port Area: 15 sq in
Recommended Port Tuning: 35hz
Sealed Enclosure: Not Recommended
The boxes say 500W but Sundown has confirmed they now rate these at 750W RMS
(However they have no plans of updating the boxes for the subs.)
Sold Individually
