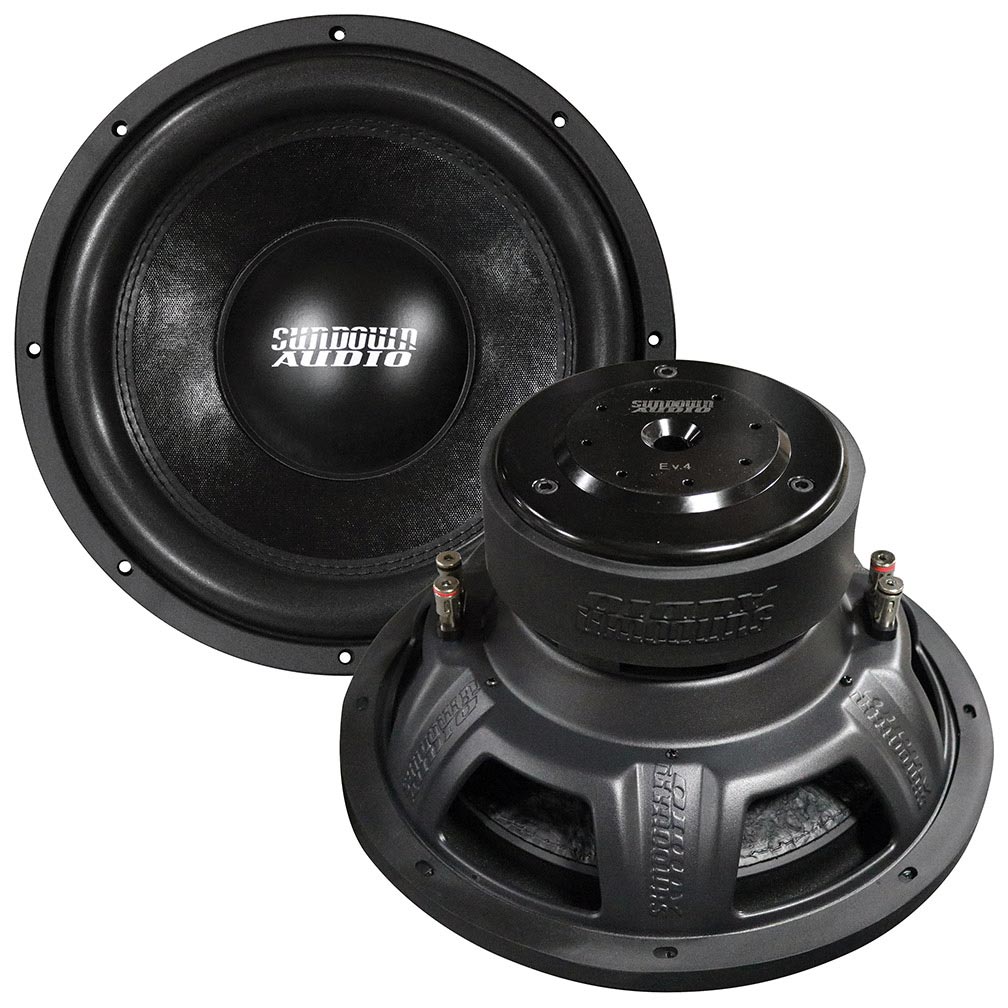

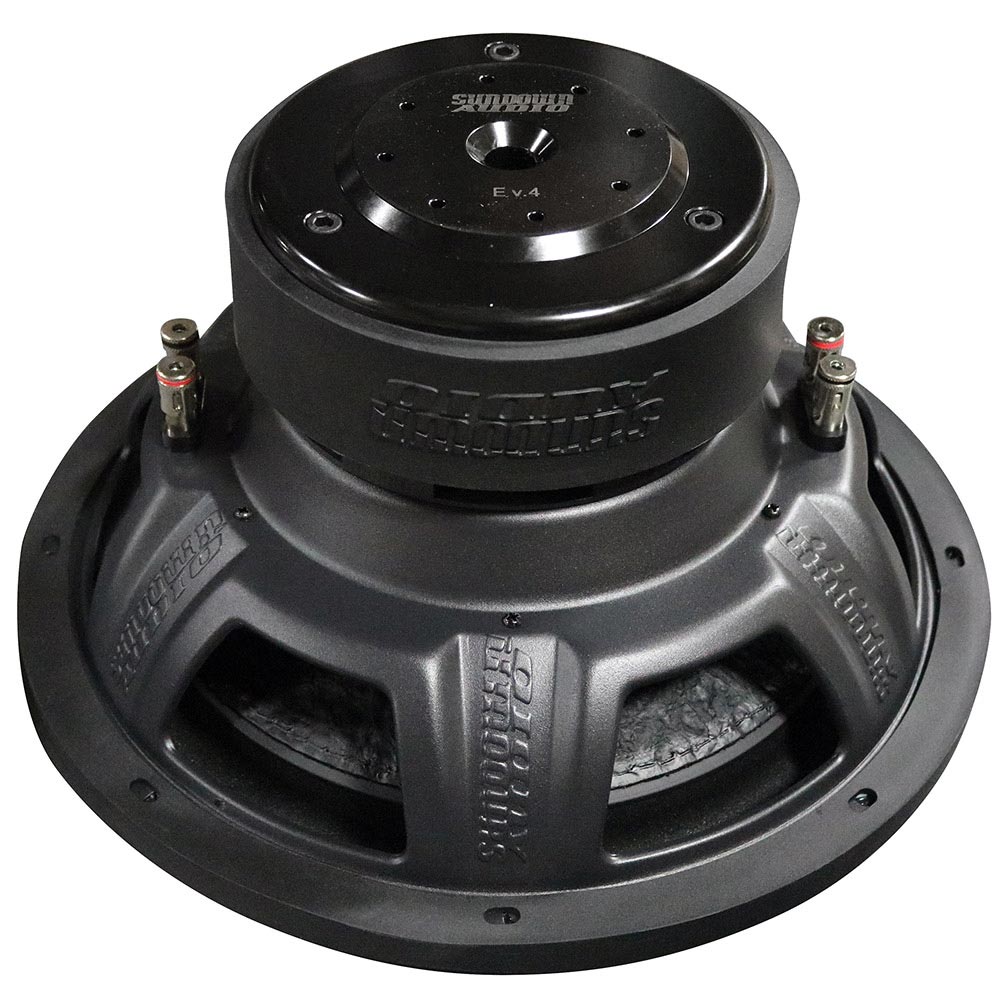

Sundown Audio 12″ Woofer, 750W RMS/1500W MAX, Dual 2 Ohm Voice Coils
1500W MAX
750W RMS
Dual 2 Ohm Voice Coils
Xmax = 14mm one-way by 70% BL
Vented magnetic gap
Vented pole piece with optimized geometry
High linear excursion
Black Aluminum 2.5” voice coil former for superior heat dissipation
High Temperature 4-Layer copper voice coil wire

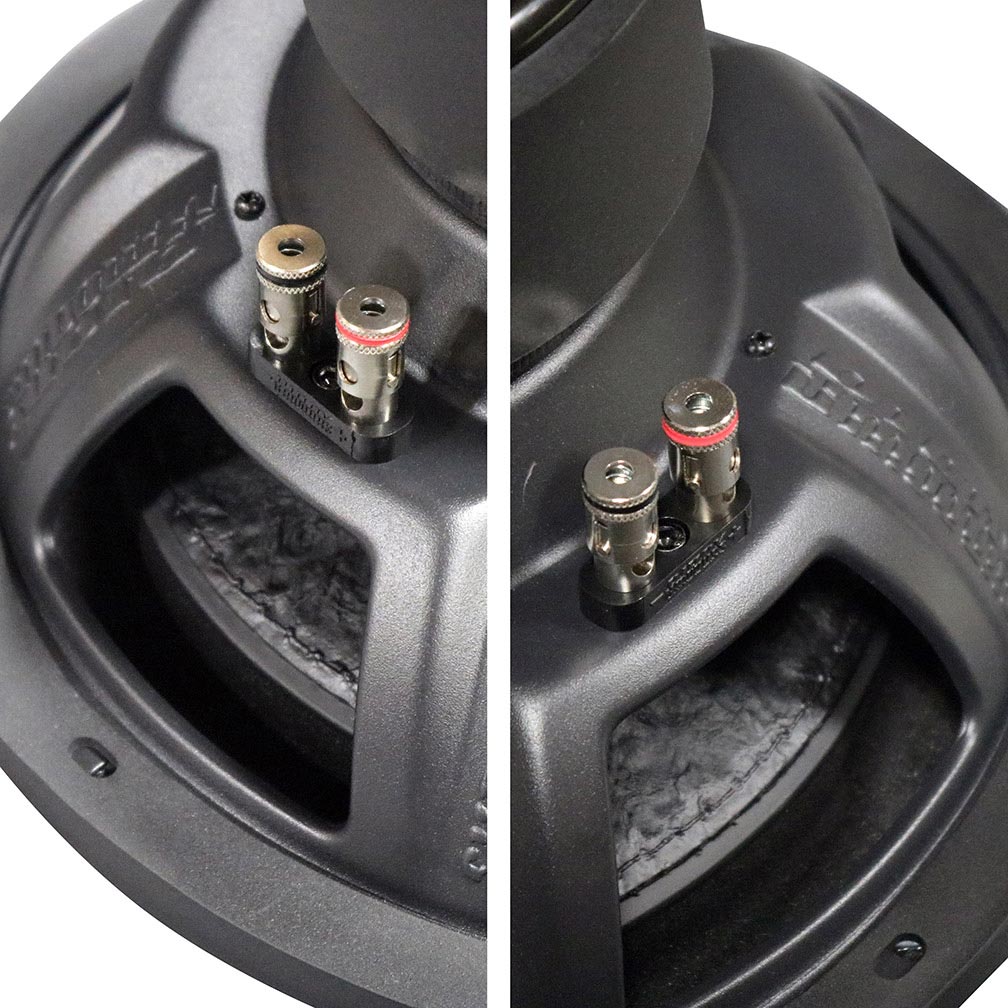

Spring Loaded Terminals
Stitched-On “Mini-XL” Tinsel Leads to prevent fatigue and failure
High strength stamped steel frame (Sundown’s strongest stamped frame ever)
Optimized for small, sealed & ported enclosures
Bolted motor structure to prevent “motor shift”
Mount Depth: 6.50″
Outside Diameter: 12.250″
Cutout: 11.125″
Sealed Enclosure: Not Recommended
The boxes say 500W but Sundown has confirmed they now rate these at 750W RMS
(However they have no plans of updating the boxes for the subs.)
Sold Individually
