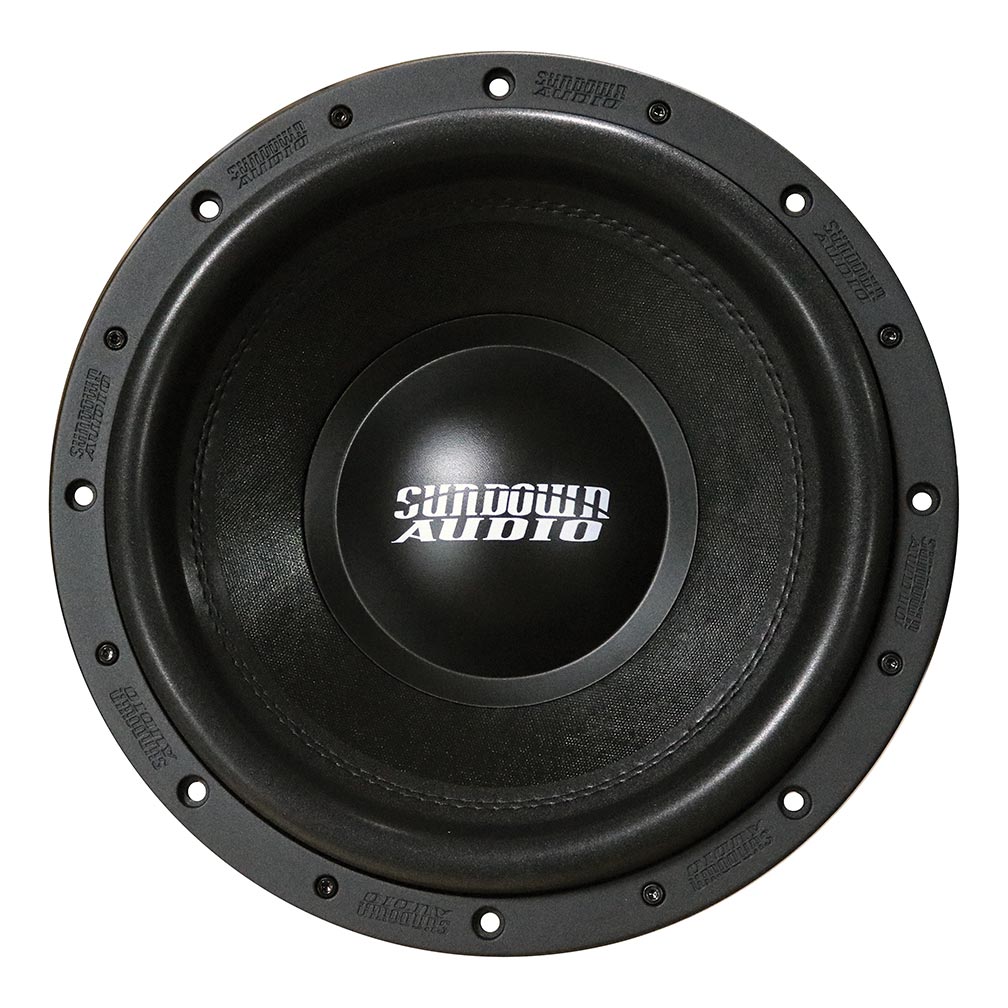

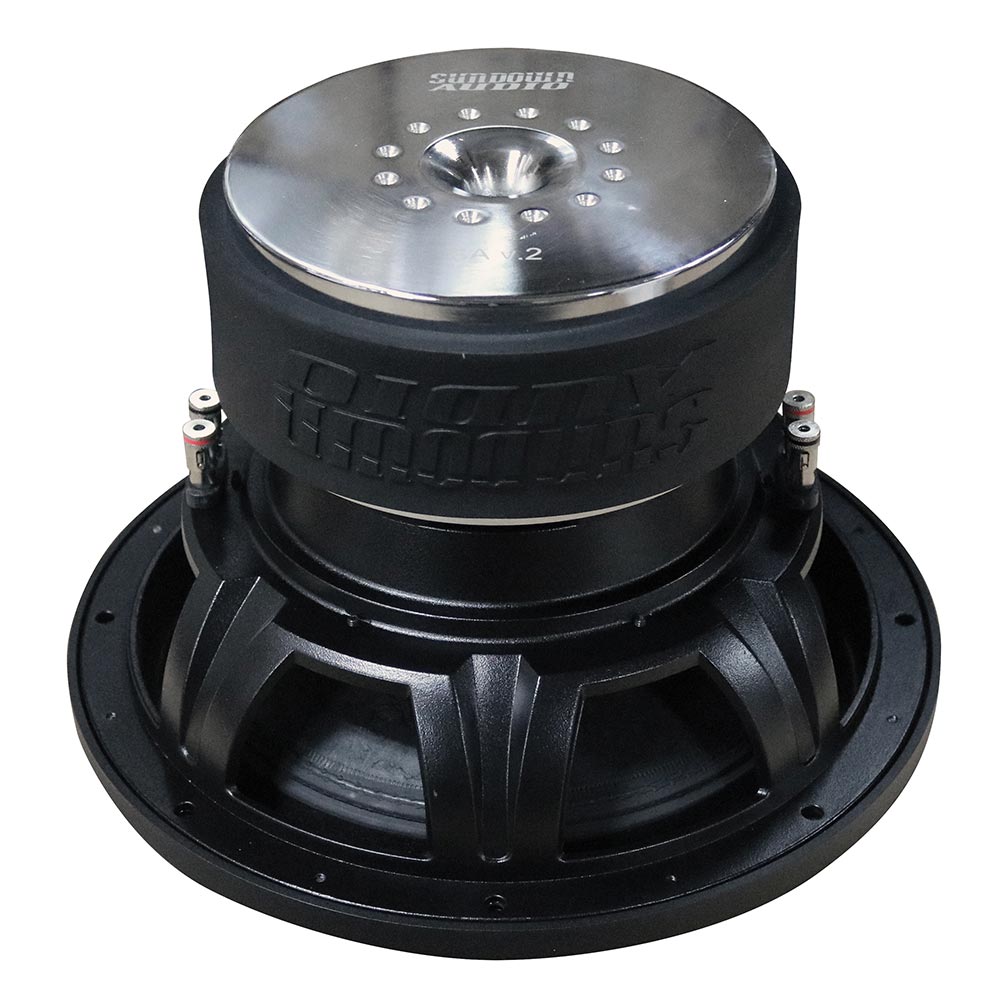

Sundown Audio 12″ Woofer, 1250W RMS/2500W MAX Dual 2 Ohm Voice Coils
2500W Max
1250W RMS
Dual 2 Ohm Voice Coils
Vented magnetic gap
Aluminum 2.75” voice coil former for superior heat dissipation
Innovative high-velocity vented frame spacer ring
Large aluminum Faraday ring for smooth acoustic response
Patented high-strength cast aluminum frame
High-temperature voice coil wire
Spring-loaded terminals
Stitched-on double “XL” tinsel lead wires
This 12” SA v.2 is a top-down upgrade. The 2.75” coil punches way above its weight, outperforming most 3” coils without adding weight. The motor also features a large magnet shorting ring (faraday ring) to reduce distortion and deliver smoother response across the entire acoustic spectrum. The motor & coil setup is mated to an extremely robust double-layer spider with fully tied-on & doubled-up “XL” tinsel leads. A competition-grade paper cone and a strong foam surround were used to complete this masterpiece.
Mount Depth: 7.35″
Sealed Enclosure: 1.0 cu ft
Ported Enclosure: 1.75 cu ft
Recommended Tuning: 35Hz
Recommended Port Area: 26 sq in
Outside Diameter: 12.83″
Cut-Out: 11.01″
The boxes say 1000W but Sundown has confirmed they now rate these at 1250W RMS
(However they have no plans of updating the boxes for the subs.)
Sold Individually
