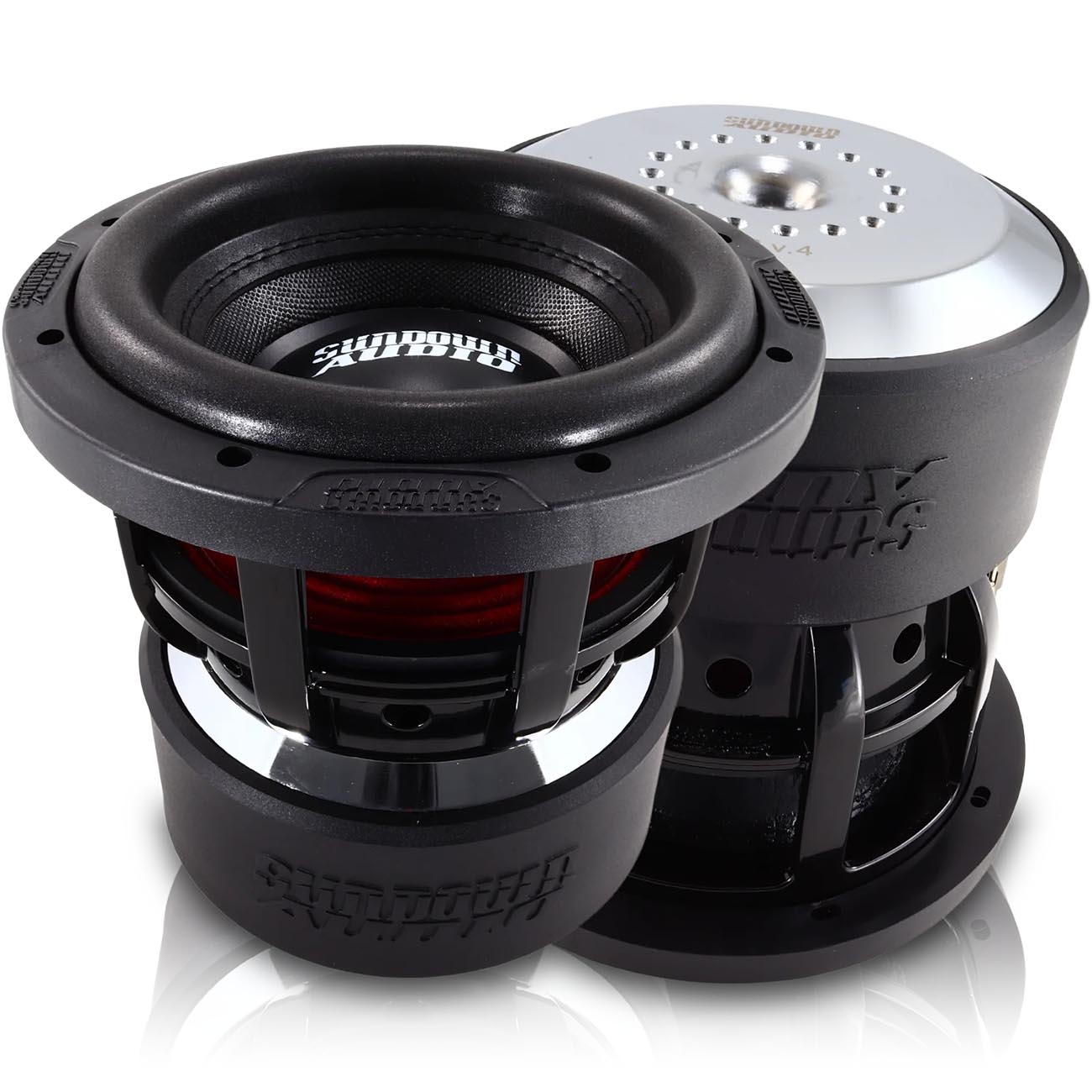

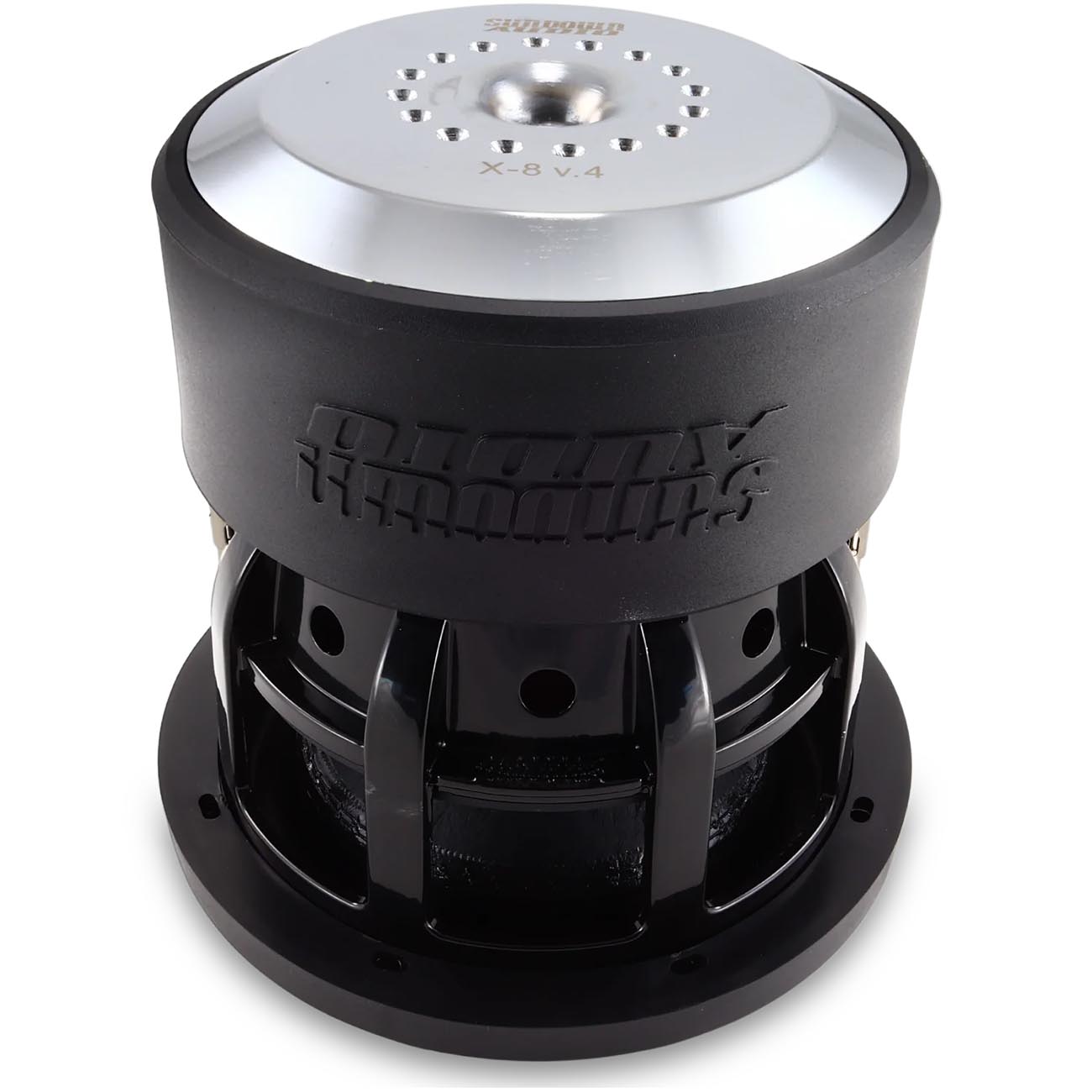

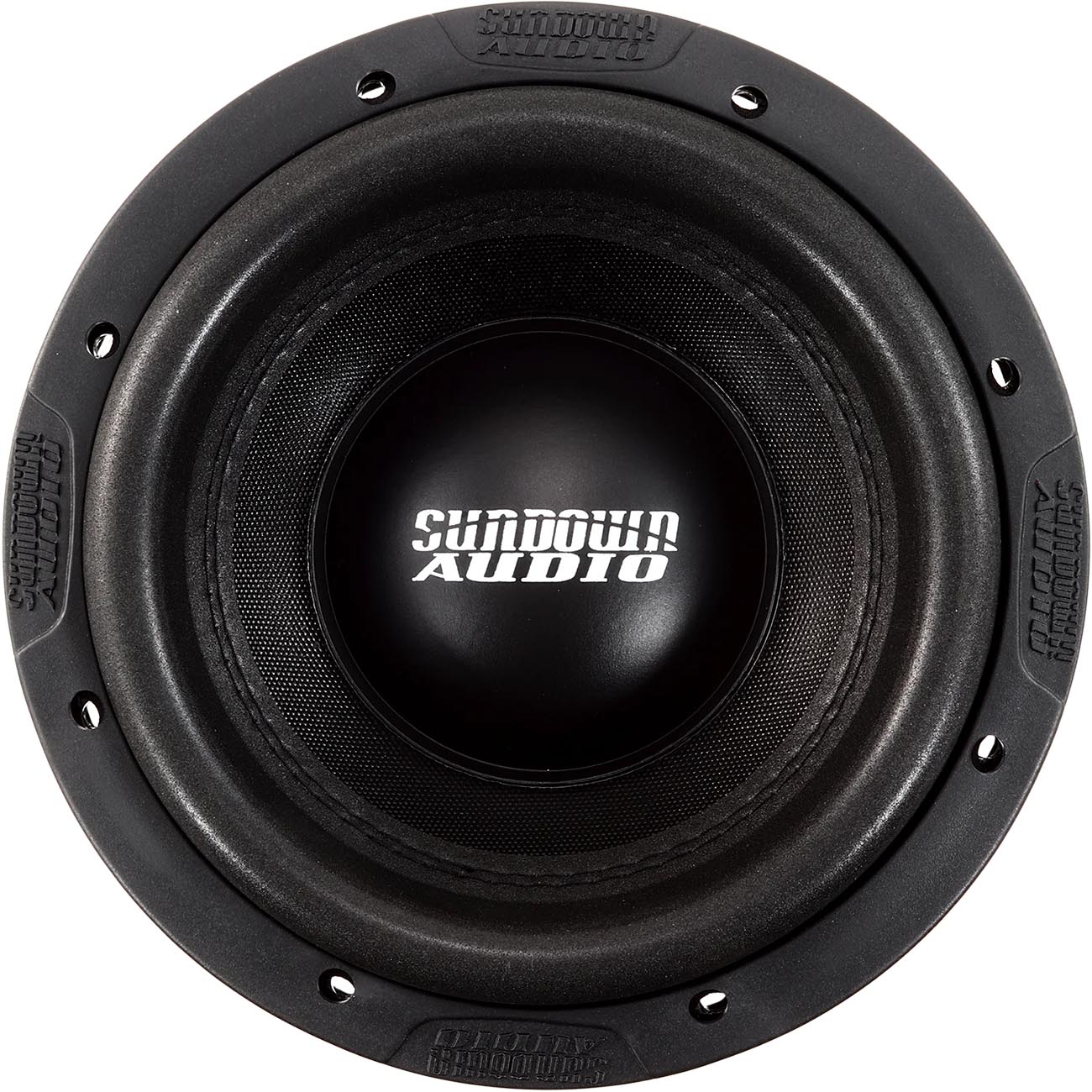

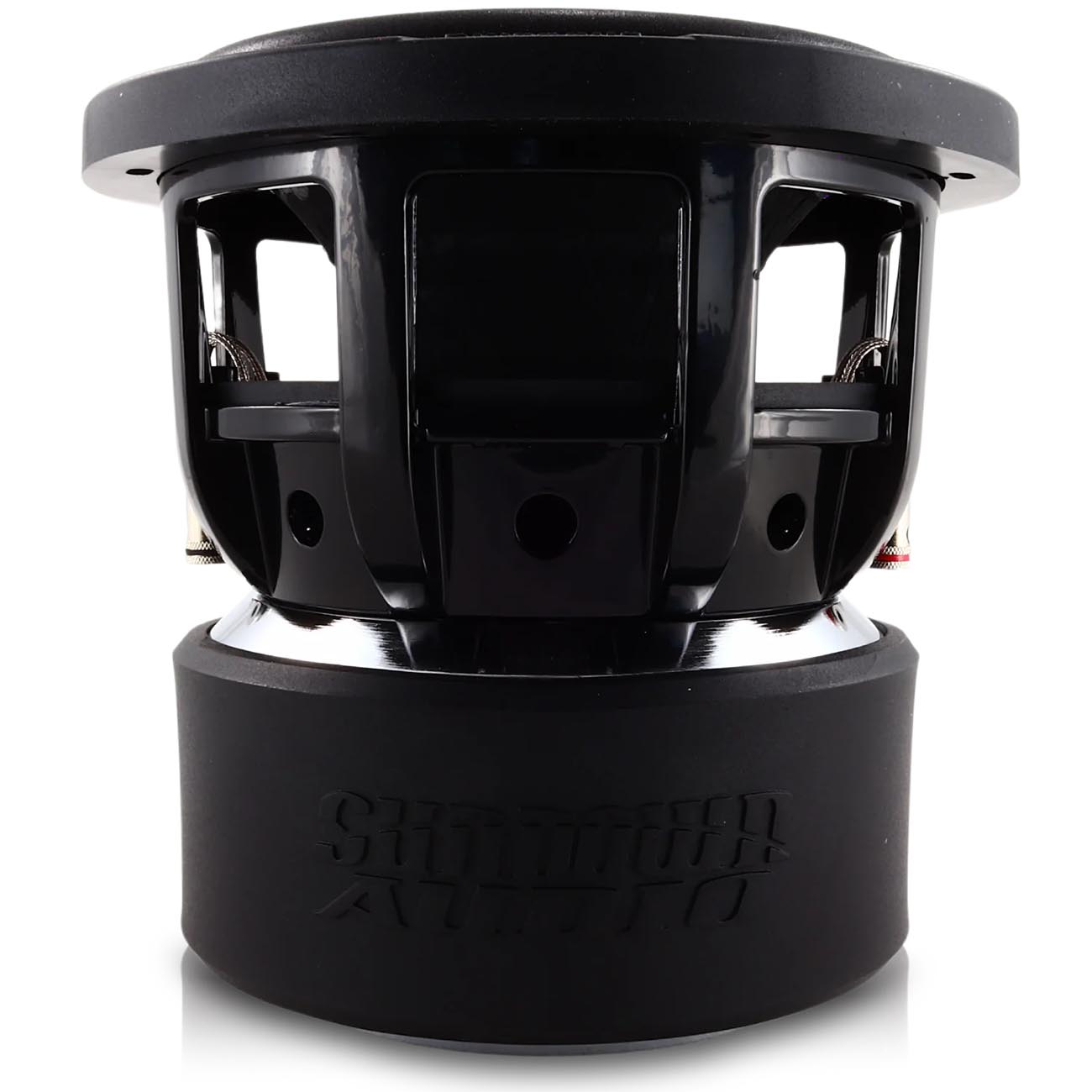

Sundown Audio 8″ Woofer, 1250W RMS/2500W MAX, Dual 4 Ohm Voice Coils
2500W MAX
1250W RMS
Dual 4 Ohm Voice Coils
Solid Pole piece with chamfered edges & machined air channels for increased voice coil cooling
High velocity under-spider frame vents
Black Aluminum 3” voice coil former for superior heat dissipation
High Temperature copper voice coil wire
Large aluminum faraday ring (Magnet ID)
Spring Loaded Terminals
Stitched-On Double High-Power Tinsel Lead Wires
High strength & patented cast aluminum frame
Optimized for small ported enclosures
Upgrades from V3
New Frame Tooling: The X8 V4 features a redesigned frame with several improvements. The frame retains the same standard cutout size as the V3, ensuring an easy and seamless upgrade for existing setups
Expanded spider design
Enhanced Surround Size
Taller Cone Design
8mm Increased Rearward X-mech
Recommended Enclosure Type:
• Ported or Sealed
Sealed Enclosure: 0.3-.04cuft
Ported Enclosure: 0.75-1.0 cu ft
Recommended Tuning: 32hz
Recommended Port Area: 12-16 sq in
Displacement: 0.13 cu ft
Outside Diam.: 8.71″
Cutout: 7.32″
Mount Depth: 7.56″
The boxes say 1000W but Sundown has confirmed they now rate these at 1250W RMS
(However they have no plans of updating the boxes for the subs.)
Sold Individually
