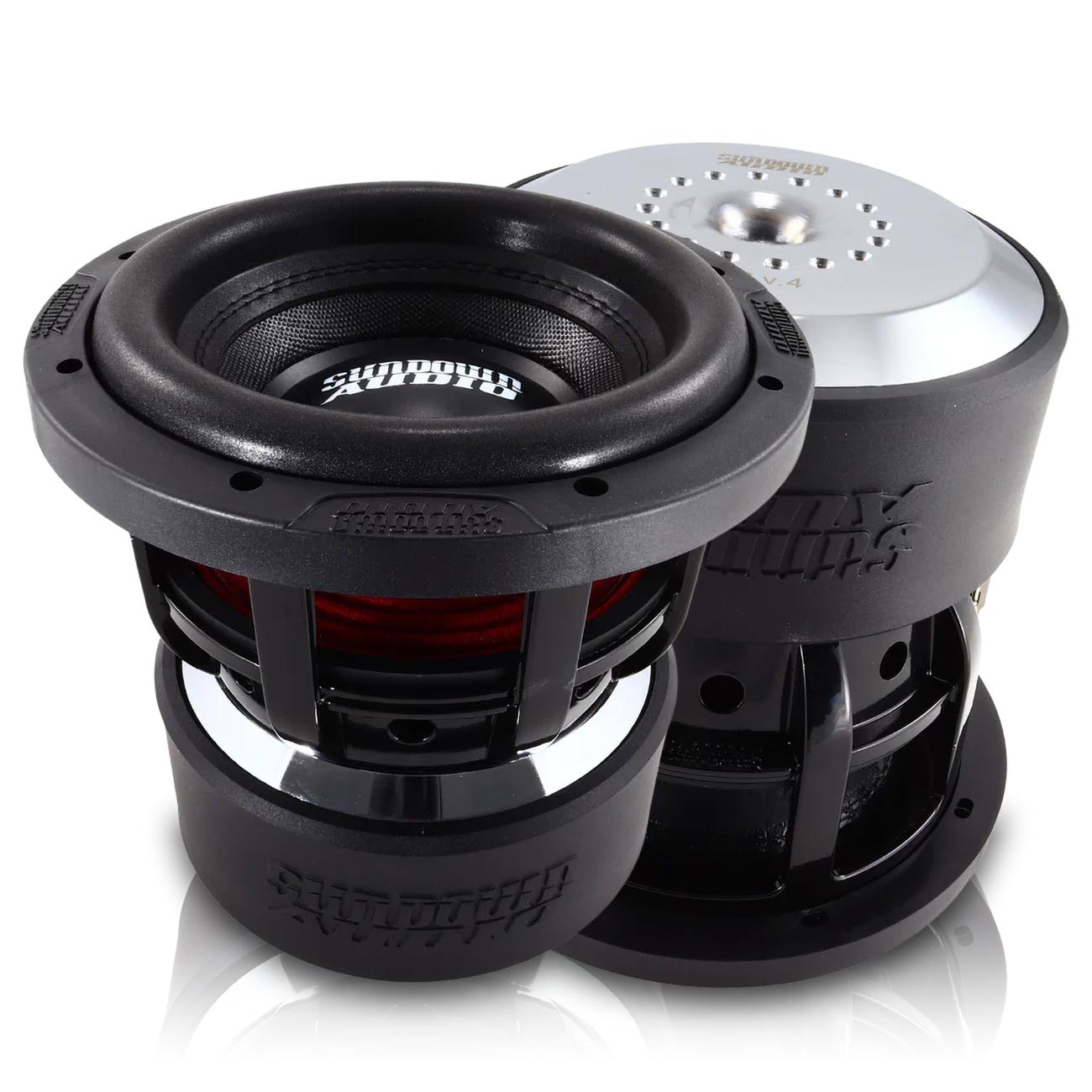

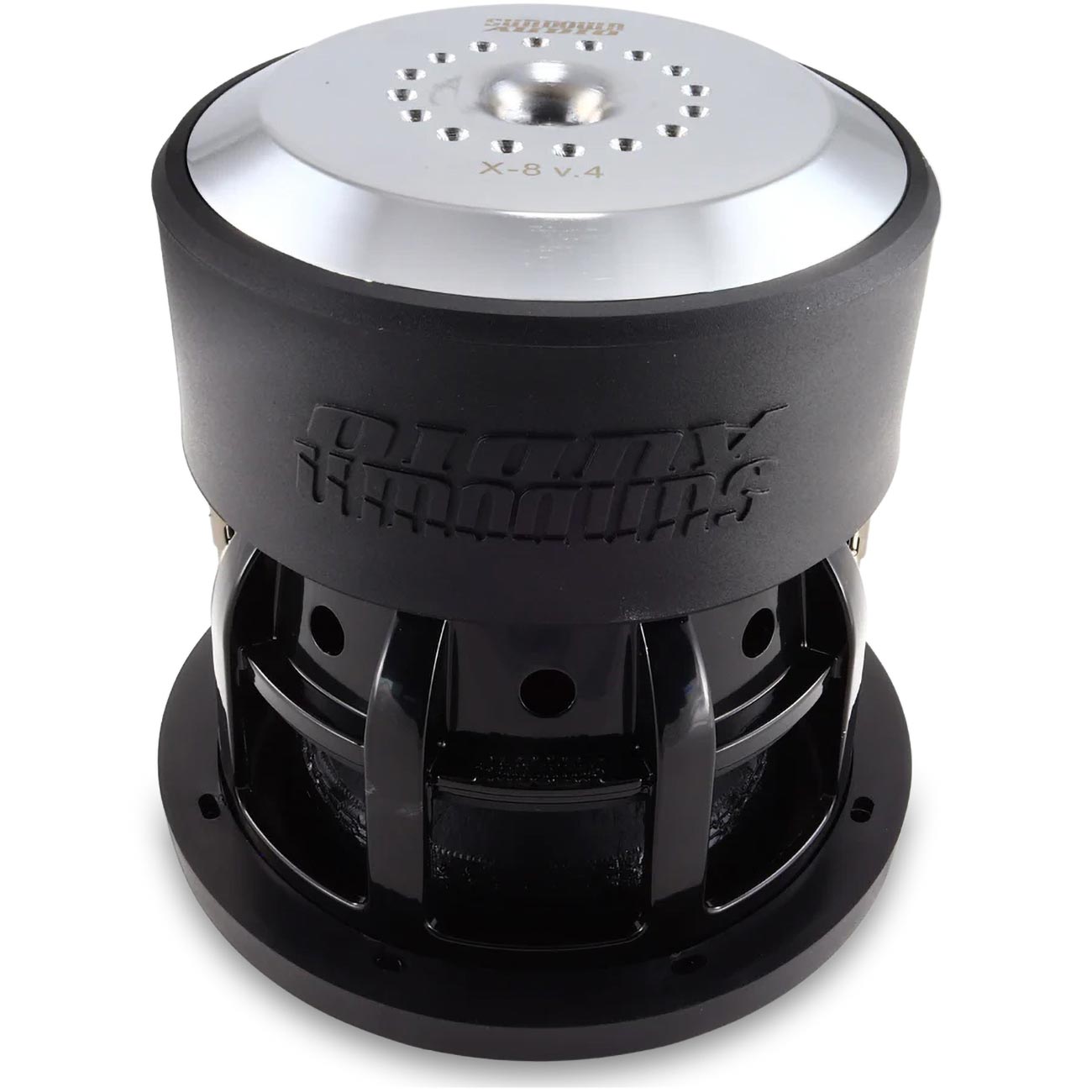

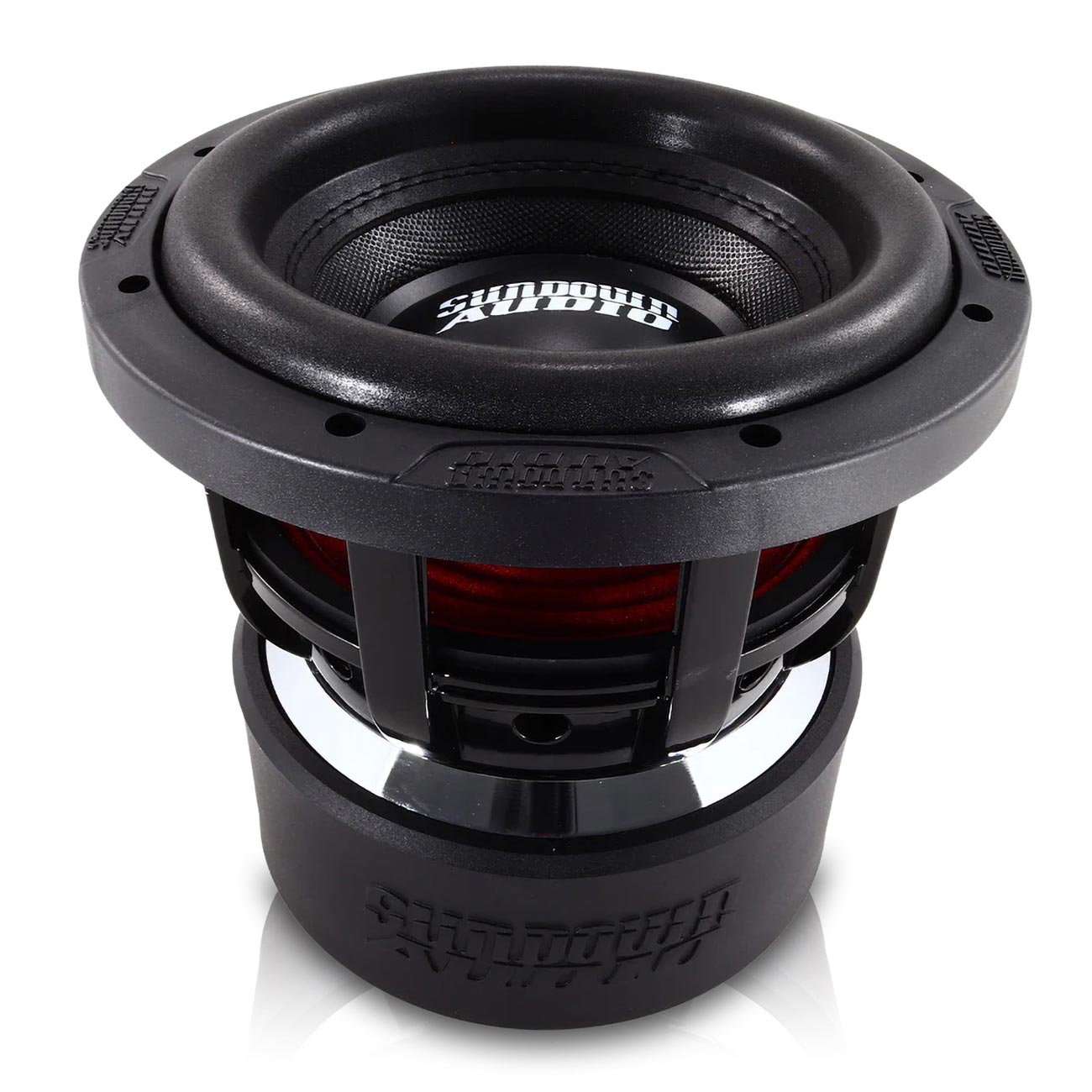

Sundown Audio 8″ Woofer, 1000W RMS, Dual 2 Ohm Voice Coil

X8V4D2 Sundown Audio

Log in to see price!

Available on backorder

Sundown Audio 8″ Woofer, 1000W RMS, Dual 2 Ohm Voice Coils

1000 Watts RMS
Dual 2 ohm voice coils

Solid Pole piece with chamfered edges & machined air channels for increased voice coil cooling
High velocity under-spider frame vents
Black Aluminum 3” voice coil former for superior heat dissipation
High Temperature copper voice coil wire
Large aluminum faraday ring (Magnet ID)
Spring Loaded Terminals
Stitched-On Double High-Power Tinsel Lead Wires
High strength & patented cast aluminum frame
Optimized for small ported enclosures

Upgrades from V3
New Frame Tooling: The X8 V4 features a redesigned frame with several improvements. The frame retains the same standard cutout size as the V3, ensuring an easy and seamless upgrade for existing setups
Expanded spider design
Enhanced Surround Size
Taller Cone Design
8mm Increased Rearward X-mech

Recommended Enclosure Type:
• Ported or Sealed
Sealed Enclosure: 0.3-.04cuft
Ported Enclosure: 0.75-1.0 cu ft
Recommended Tuning: 32hz
Recommended Port Area: 12-16 sq in
Displacement: 0.13 cu ftOutside Diam.: 8.71″
Cutout: 7.32″
Mount Depth: 7.56″
T/S SPECS
RE (Ohms): 3.6
FS (Hz): 41.299
VAS (L): 4.126
Qes: 0.436
Qms: 1.941
Qts: 0.356
BL (NA): 21.576
Mms (Grams): 215.153
Cms: 68.389
Sens (dB @ 1w/1m): 80.1

Sold Individually

SKU X8V4D2
Manufacturer Model # X8V4D2
UPC
Case Quantity 2
Brand:
Weight 31.50 lbs
Carton Dimensions 12 × 11.5 × 13.5 in
