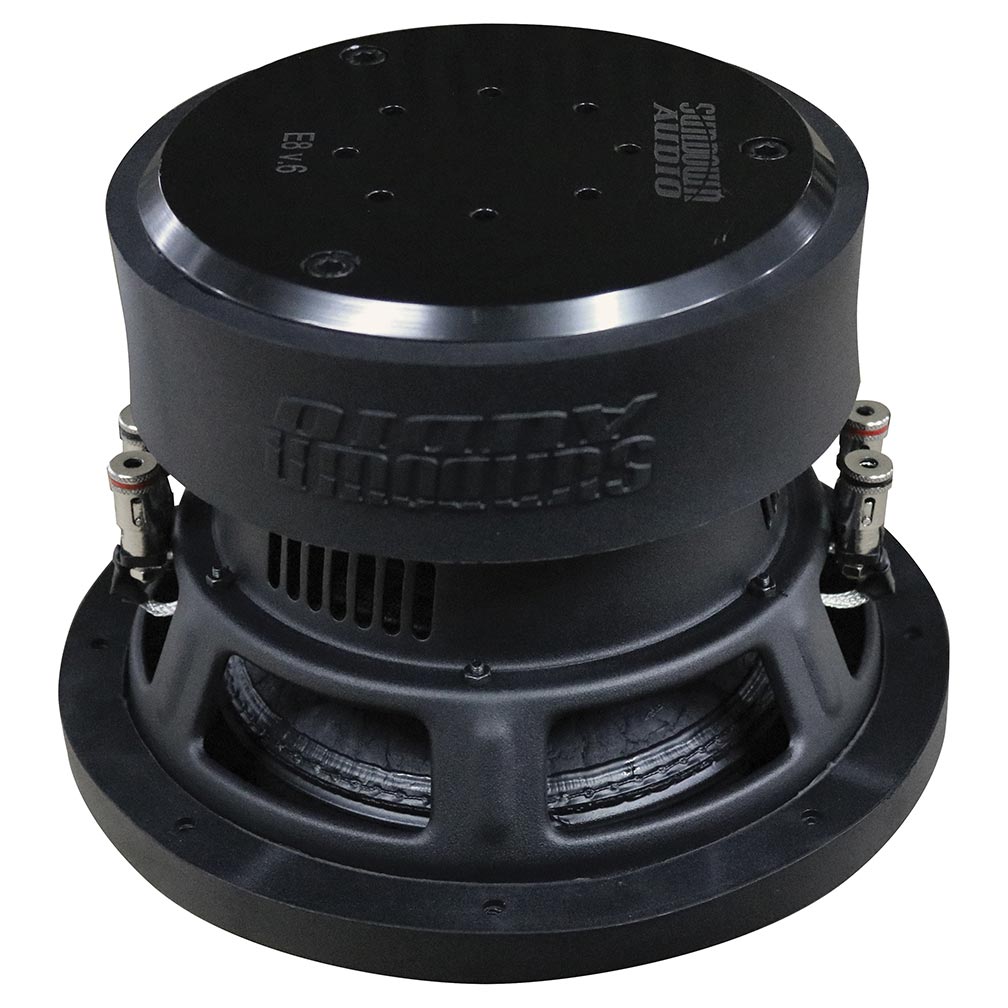

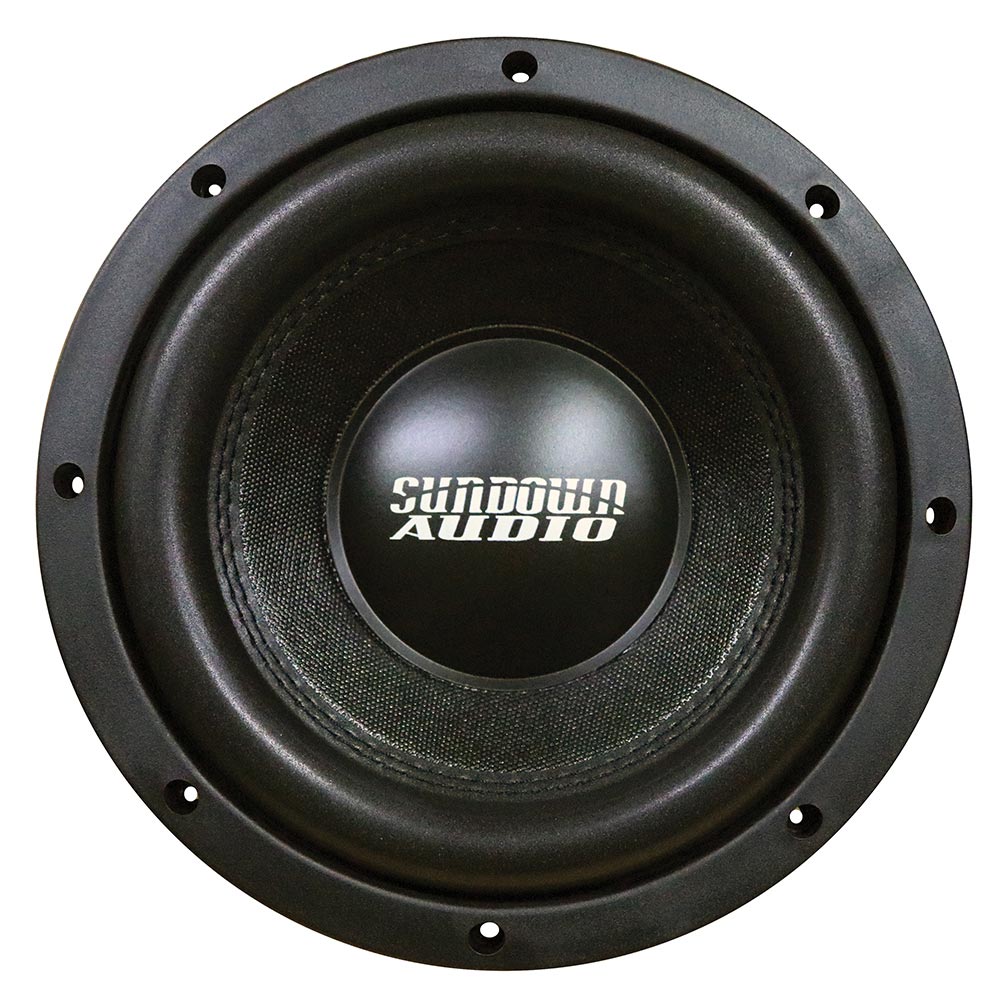

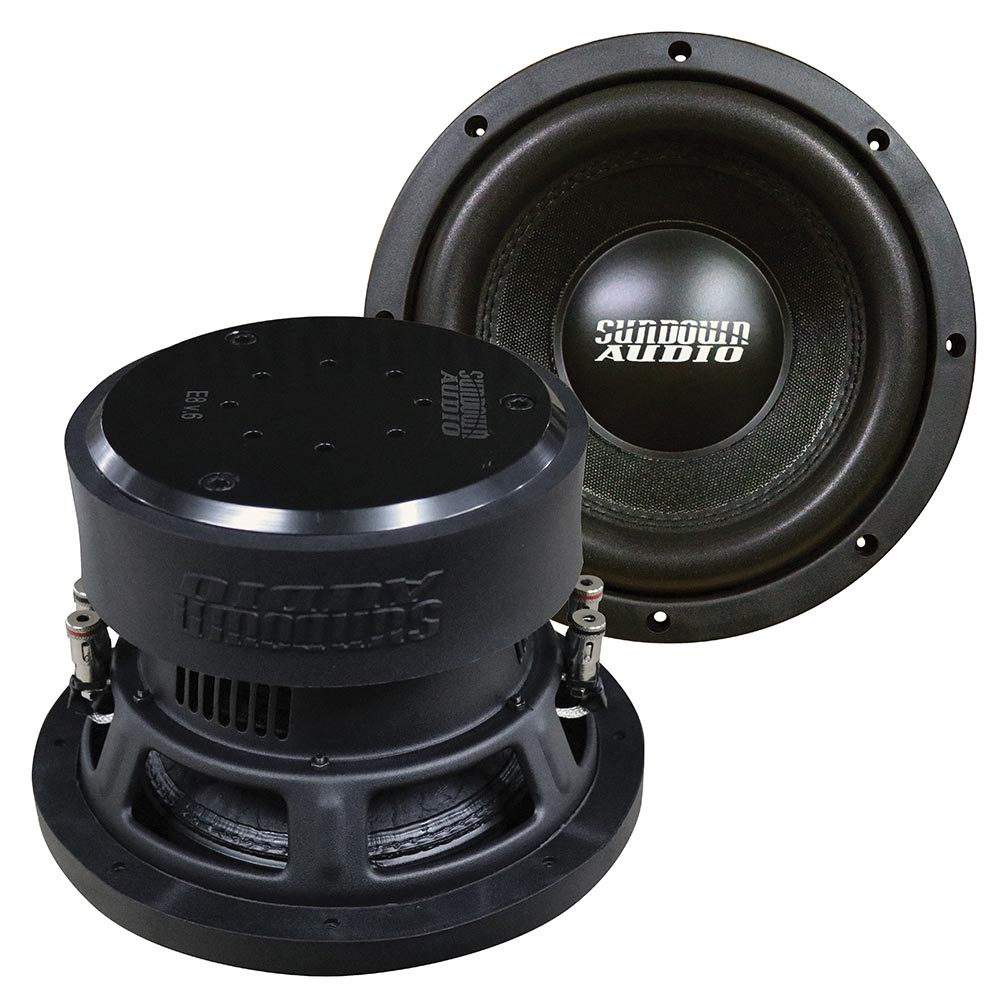

Sundown Audio 8″ Woofer, 400W RMS/800W MAX, Dual 2 Ohm Voice Coils
800W MAX
400W RMS
Dual 2 Ohm Voice Coils
Optimized 2″ voice coils
Optimized for ported enclosures
Class-leading 14mm Xmax
Double-stacked magnet
Vented magnetic gap & pole piece for superior cooling
High strength stamped steel frame
High temp 4-layer copper voice coil wire
High-quality push terminals
Stitched-on Mini-XL tinsel leads
Sundown optimized a 2” voice coil and a truly unique motor design to get the deepest possible bass response out of an 8” subwoofer.
The E-series showcases a distinctive motor design, featuring a heavily vented magnetic gap and solid pole piece, enabling exceptional thermal power handling. The spider itself is a high strength poly-cotton blend designed to handle the full capacity of the motor. To provide an additional level of ruggedness the spider is bolted down and glued to the frame. Its motor geometry allows for a remarkable 14mm one-way linear Xmax, delivering excursion equivalent to far larger cones.
Depth: 5″
Outside Diameter: 8.5″
Cutout: 7.250″
Displacement (Inches): .07 cu ft
Motor Diameter (Inches): 6.37
Ported Enclosure Size: 0.65 cu ft
Recommended Port Area: 9 sq in
Recommended Port Tuning: 35hz
Sealed Enclosure: Not Recommended
The boxes say 300W but Sundown has confirmed they now rate these at 400W RMS
(However they have no plans of updating the boxes for the subs.)
Sold Individually
