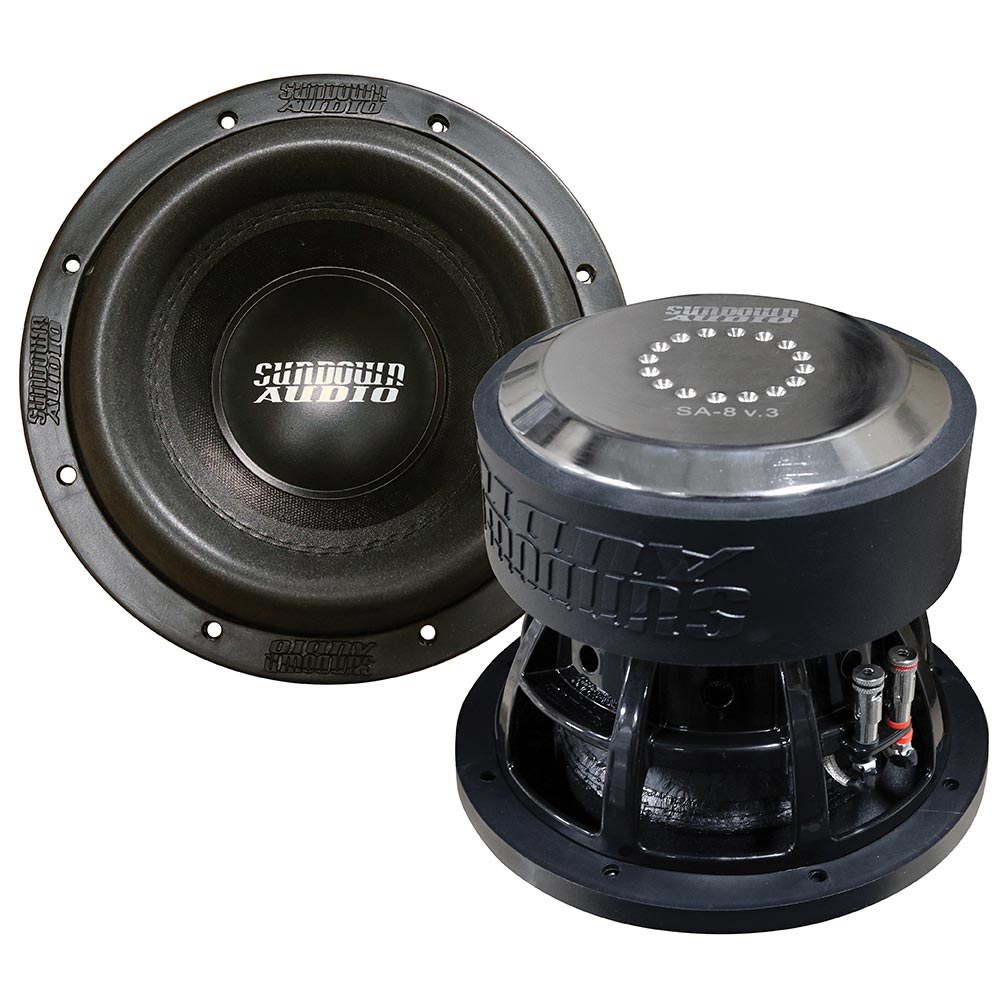

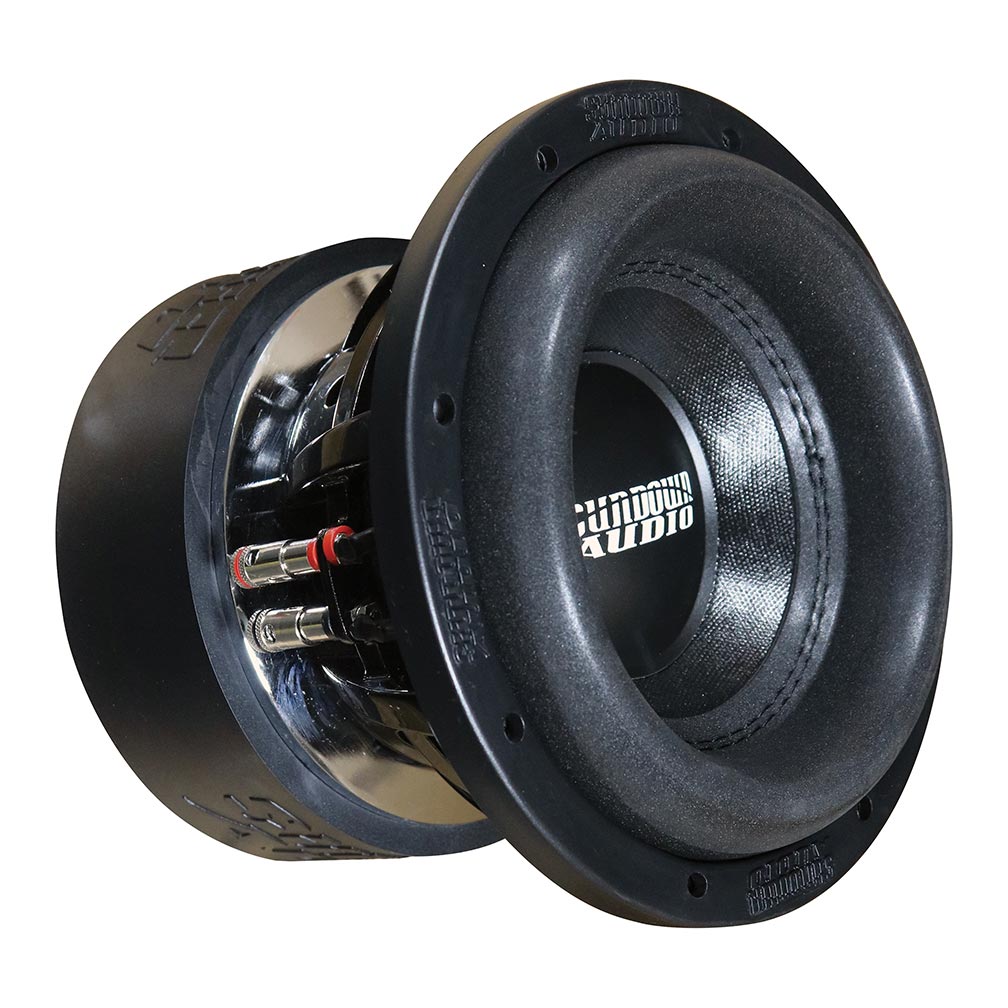

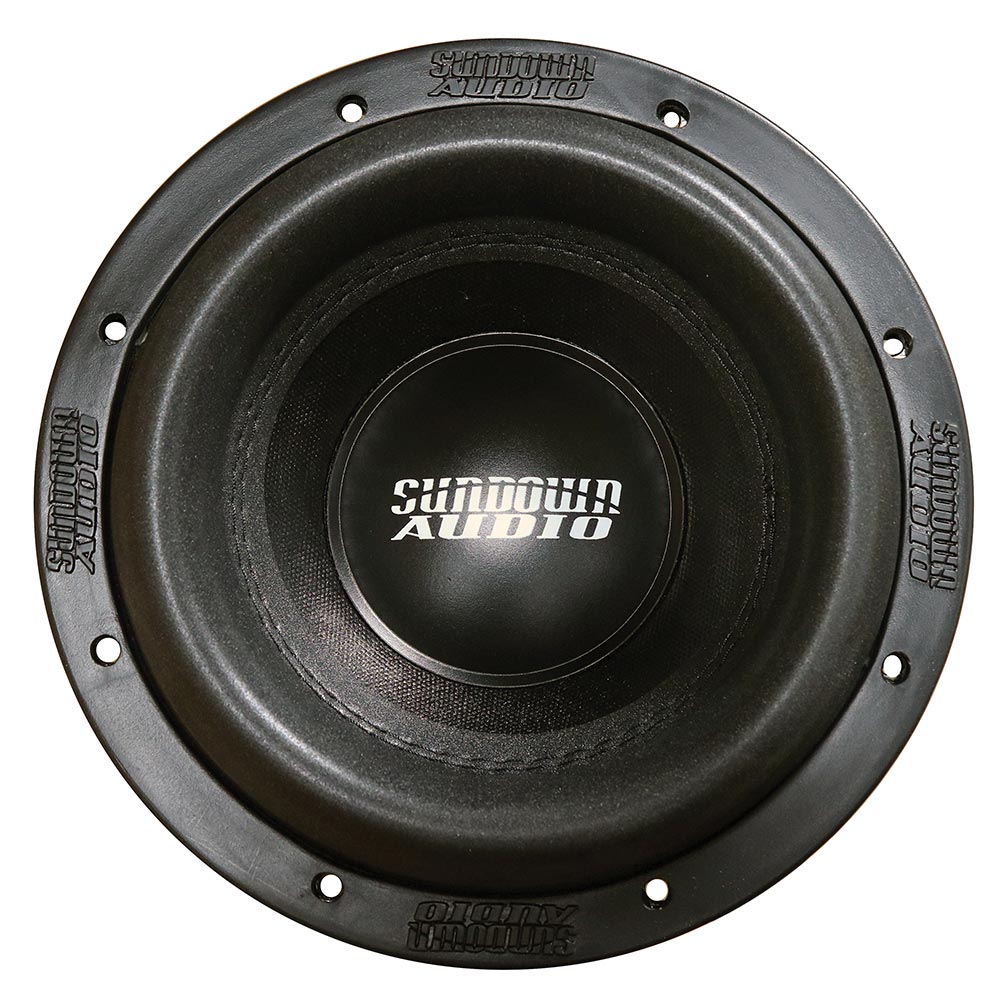

Sundown Audio 8″ SA-Series V3, 600W RMS/1200W MAX, Dual 4 Ohm Voice Coils
1200W MAX
600W RMS
Dual 4 Ohm Voice Coils
Vented magnetic gap with 16 chamfered vents
Large aluminum Faraday ring for smooth acoustic response
Patented high-strength cast aluminum frame
Low distortion motor construction
High-temperature voice coil wire
Spring-loaded terminals
Stitched-on “XL” tinsel lead wires
The pinnacle of low distortion ported box subwoofer technology, the SA 8-inch sub is completely custom tooled. It has a full 16mm of one-way linear excursion and mechanical capacity, exceeding double the linear limits, ensuring durability and low distortion. The v.3 update includes a new surround with linear geometry and improved thermal performance with the addition of 16 chamfered gap vents to keep high-velocity air flowing over the voice coil.
Mount Depth: 6.625″
Sealed Enclosure: 0.3 cu ft
Ported Enclosure: 0.65 cu ft
Recommended Tuning: 35Hz
Recommended Port Area: 9 sq in
Displacement: 0.08 cu ft
Outside Diameter: 8.375″
Cut-Out: 7.375″
The boxes say 500W but Sundown has confirmed they now rate these at 600W RMS
(However they have no plans of updating the boxes for the subs.)
Sold Individually
