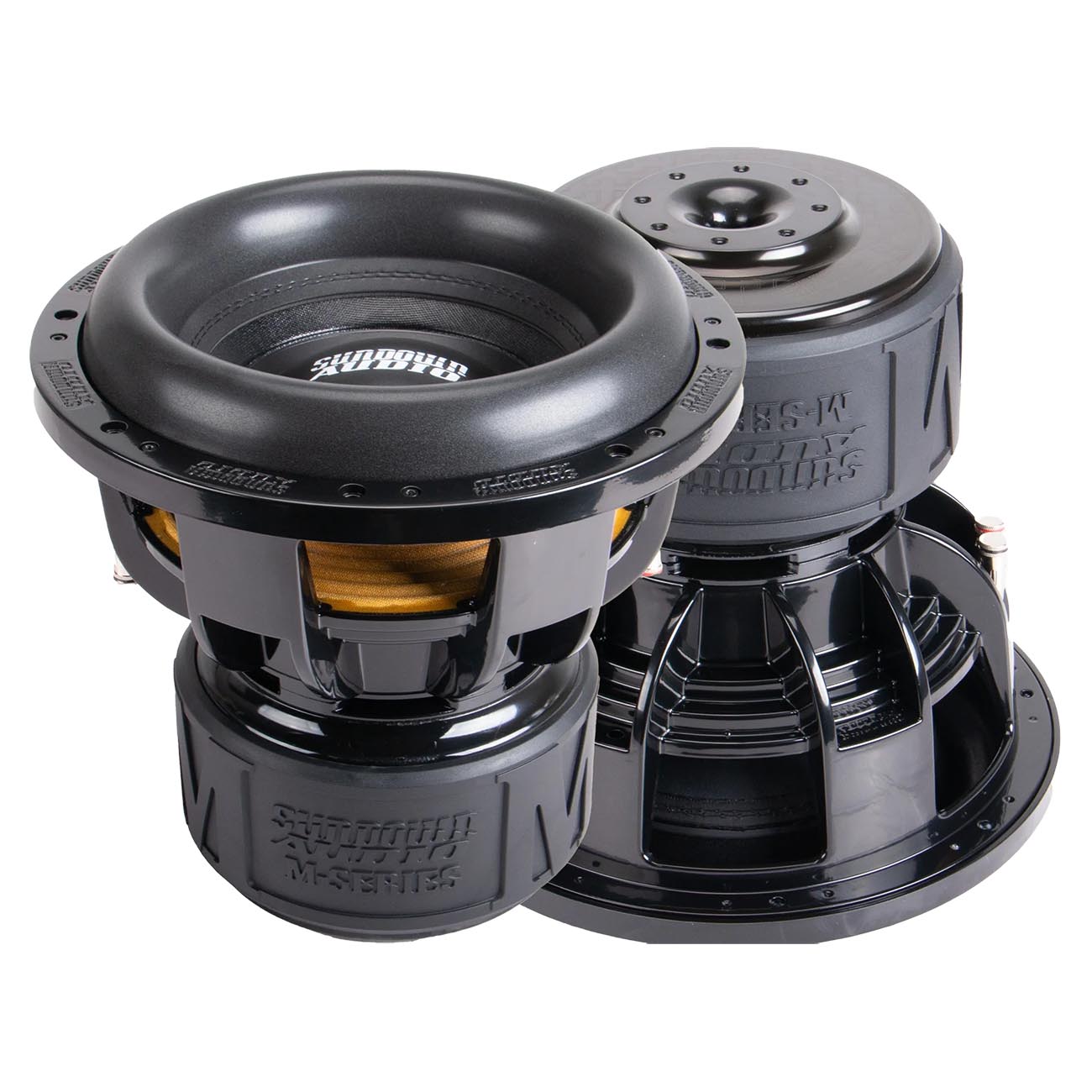

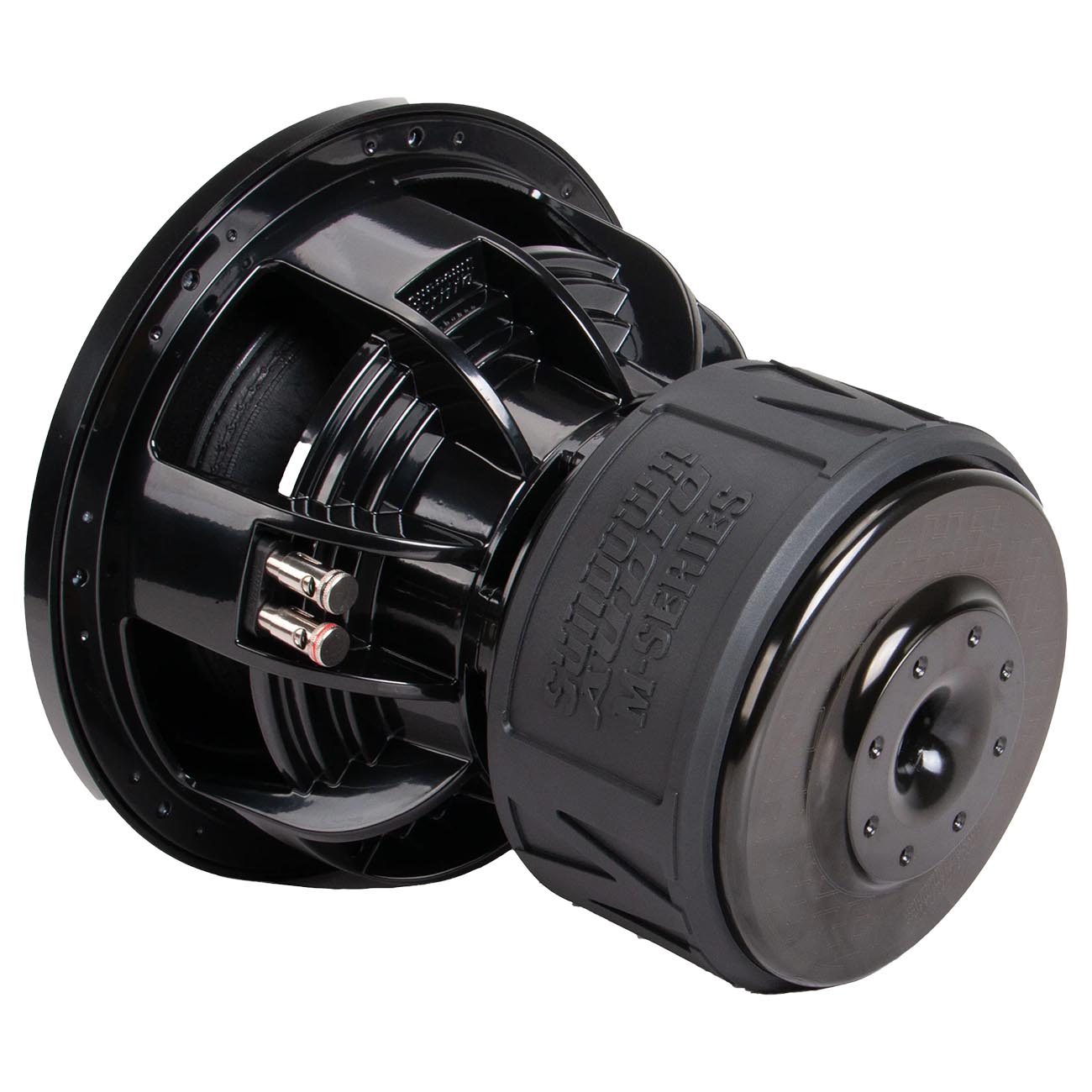

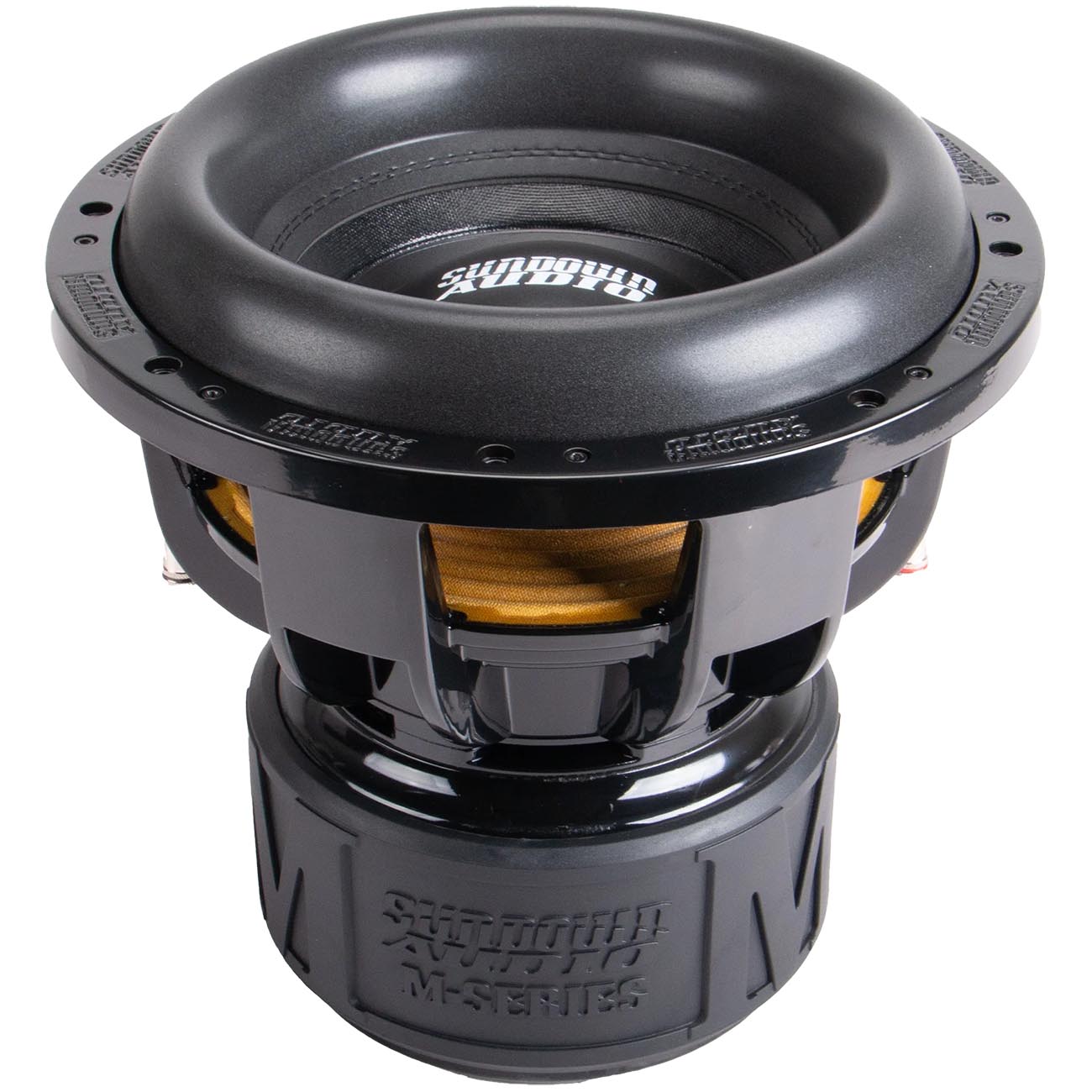

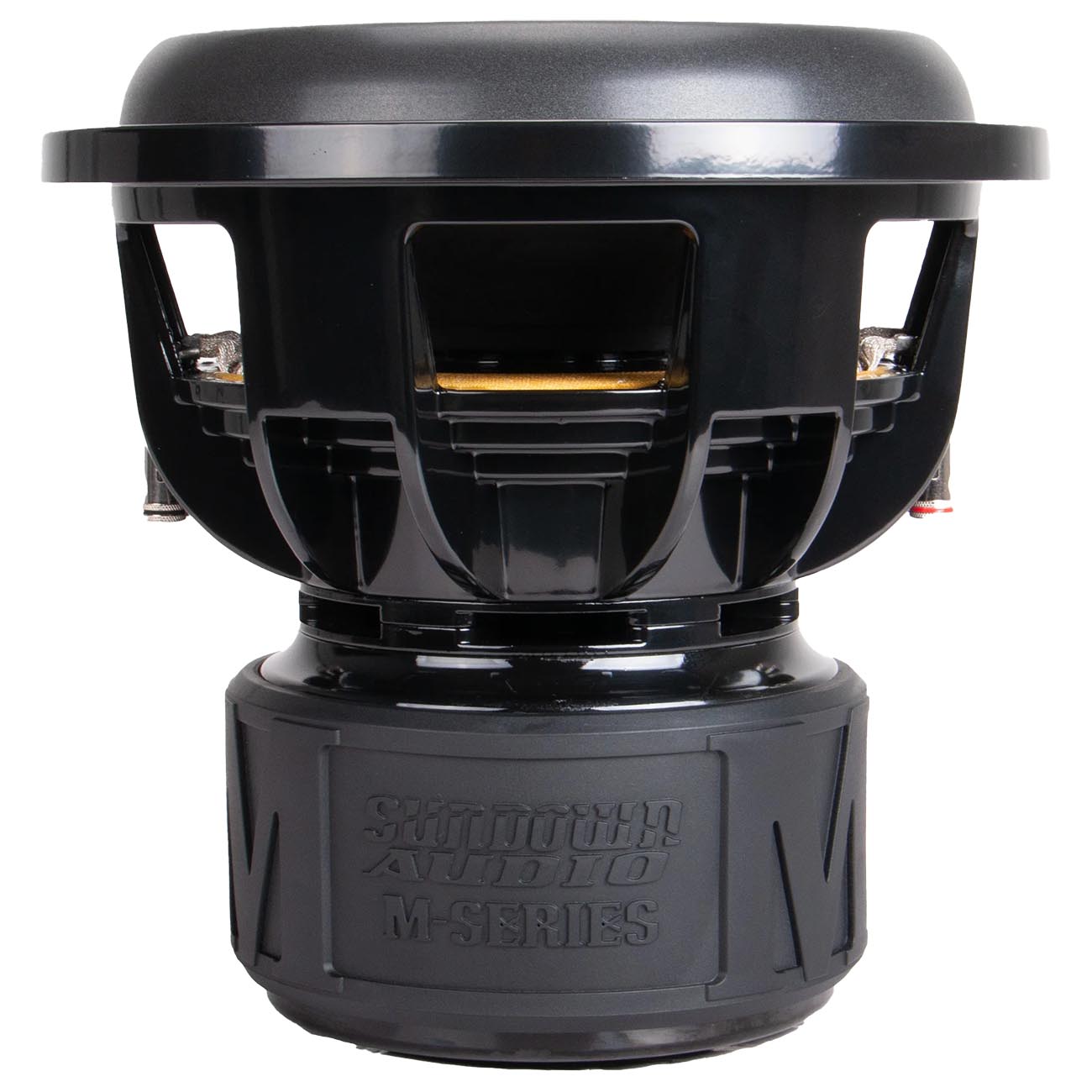

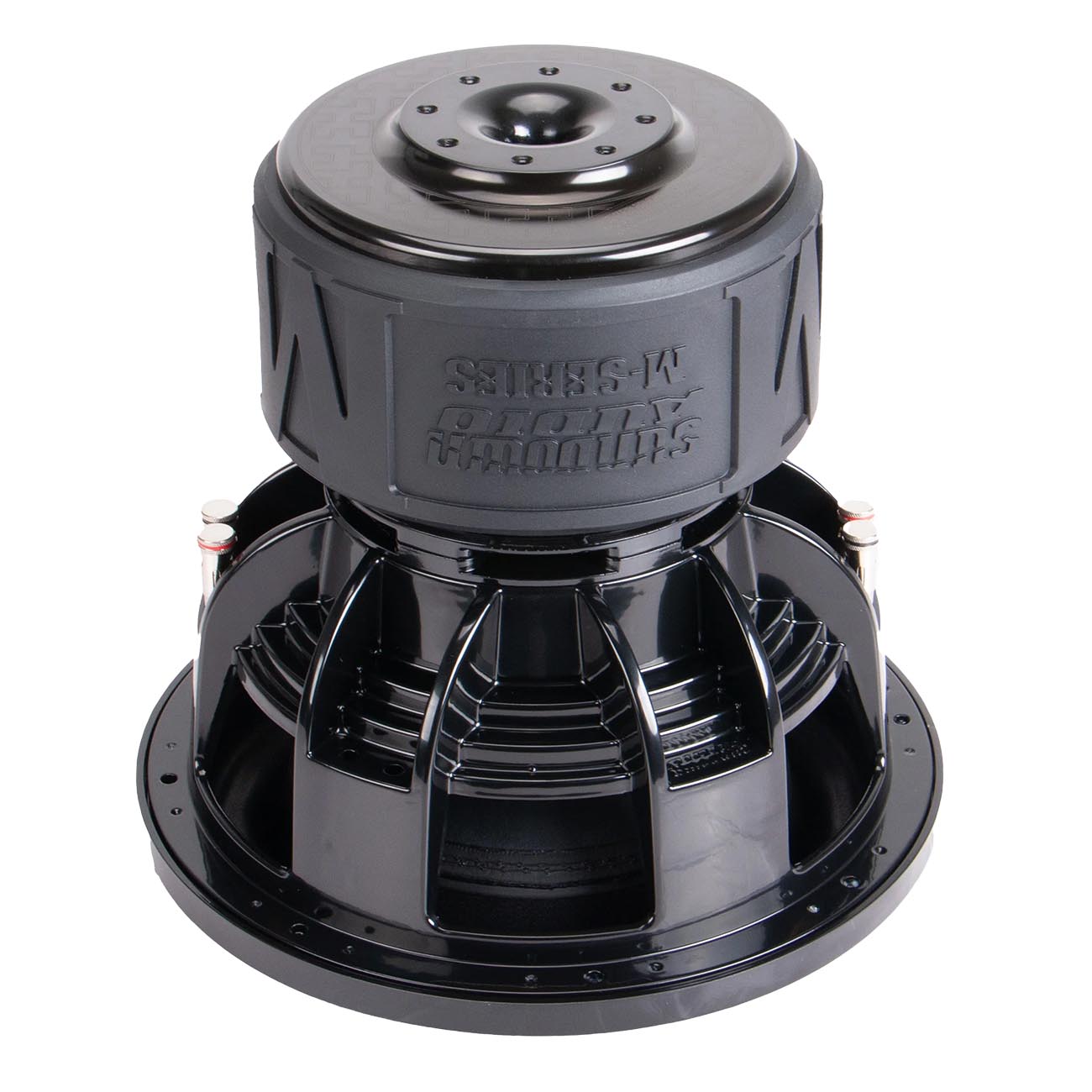

Sundown Audio 12″ Woofer, 2000W RMS/4000W MAX, Dual 2 Ohm Voice Coils
2000W RMS
4000W MAX
Dual 2 Ohm Voice Coils
Laser-Etched All Black Backplate
Quad Stack Magnet Structure
Treated Paper Cone
Mega Roll Surround
Special M-series magnet boot design
Features hyper-extended pole and extreme clearances
Includes special winding density in the gap
Highly efficient high-stroke coil ventilation system
High-velocity pole vent, a heavily vented magnetic gap
Proprietary high-velocity cast-aluminum frame-base venting system
Magnet inner-diameter aluminum shorting ring
3″ High Temperature Aluminum Voice coil
4-Layer voice coil wound on a thick aluminum former
Xmax: 35mm
Made with proprietary Sundown PG linear suspension (fully computer optimized)
Mount Depth: 10.88″
Not Recommended for Sealed Enclosure
Ported Enclosure: 2.5 cu ft
Recommended Tuning: 32Hz
Recommended Port Area: 40 sq in
4th Order Sealed Side: 1.0 cu ft
4th Order Ported Side: 3.0 cu ft
4th Order Port Area: 60 sq in
4th Order Port Length: 8″
Displacement: 0.21 cu ft
Outside Diameter: 12.67″
Cut-Out: 11.09″
Sold Individually
