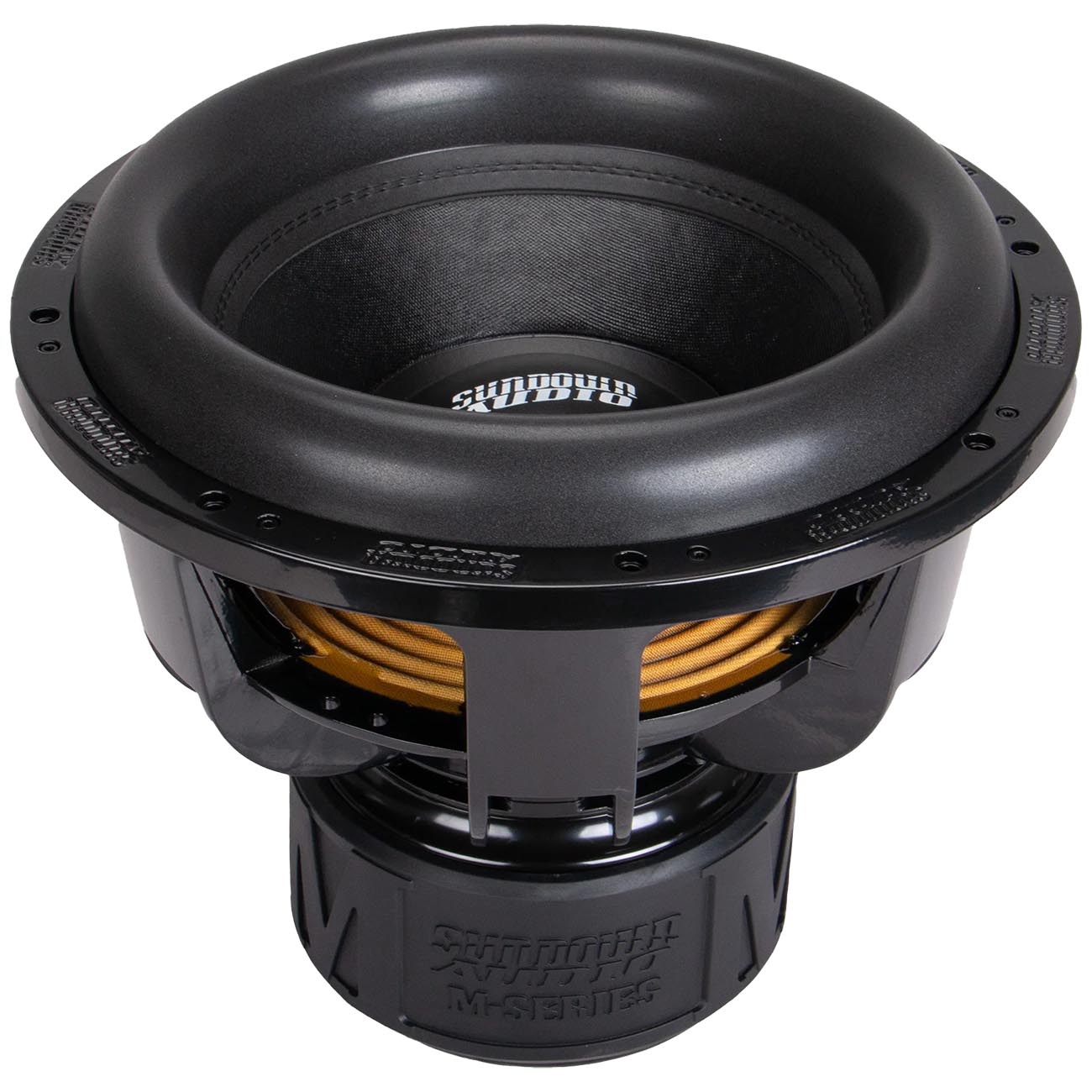

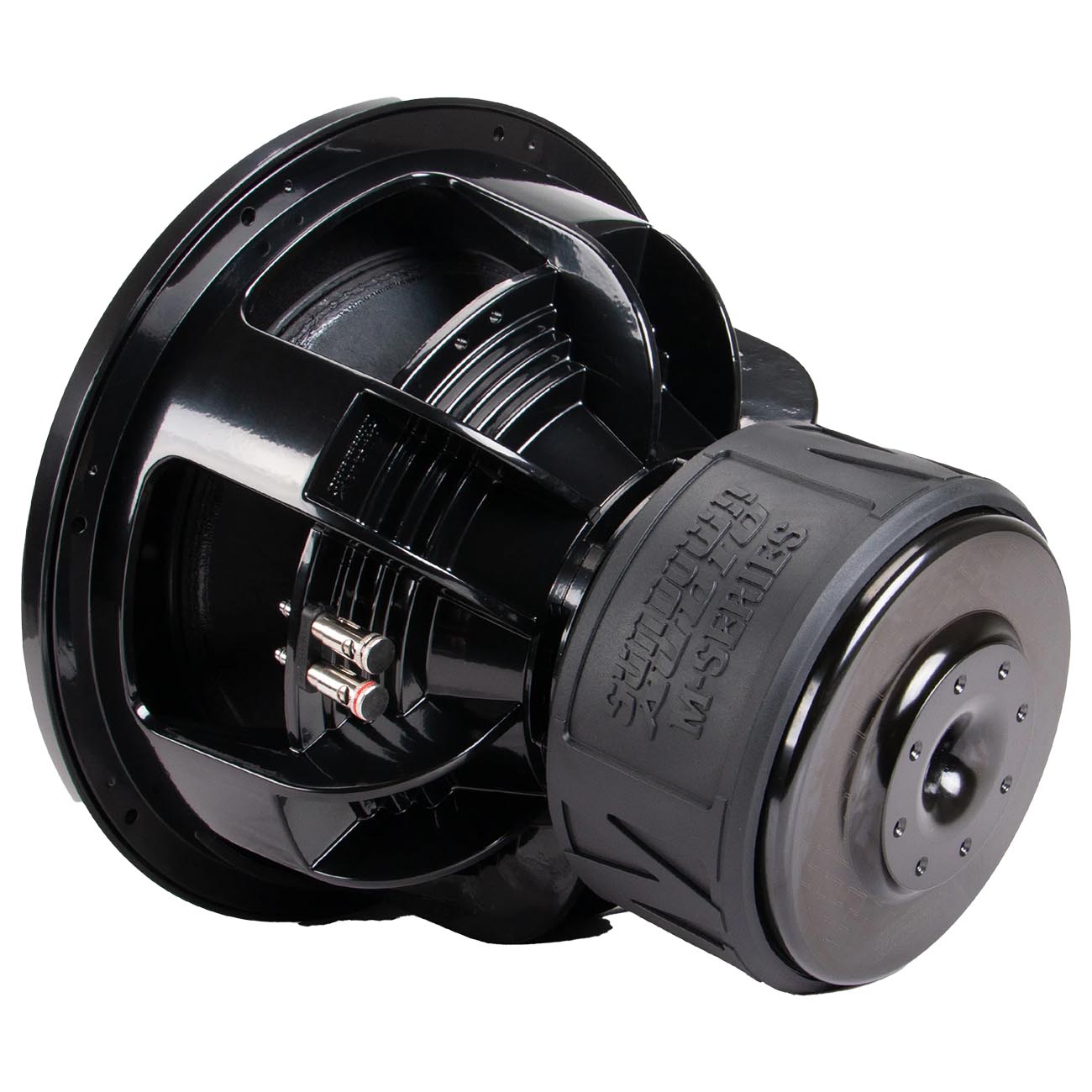

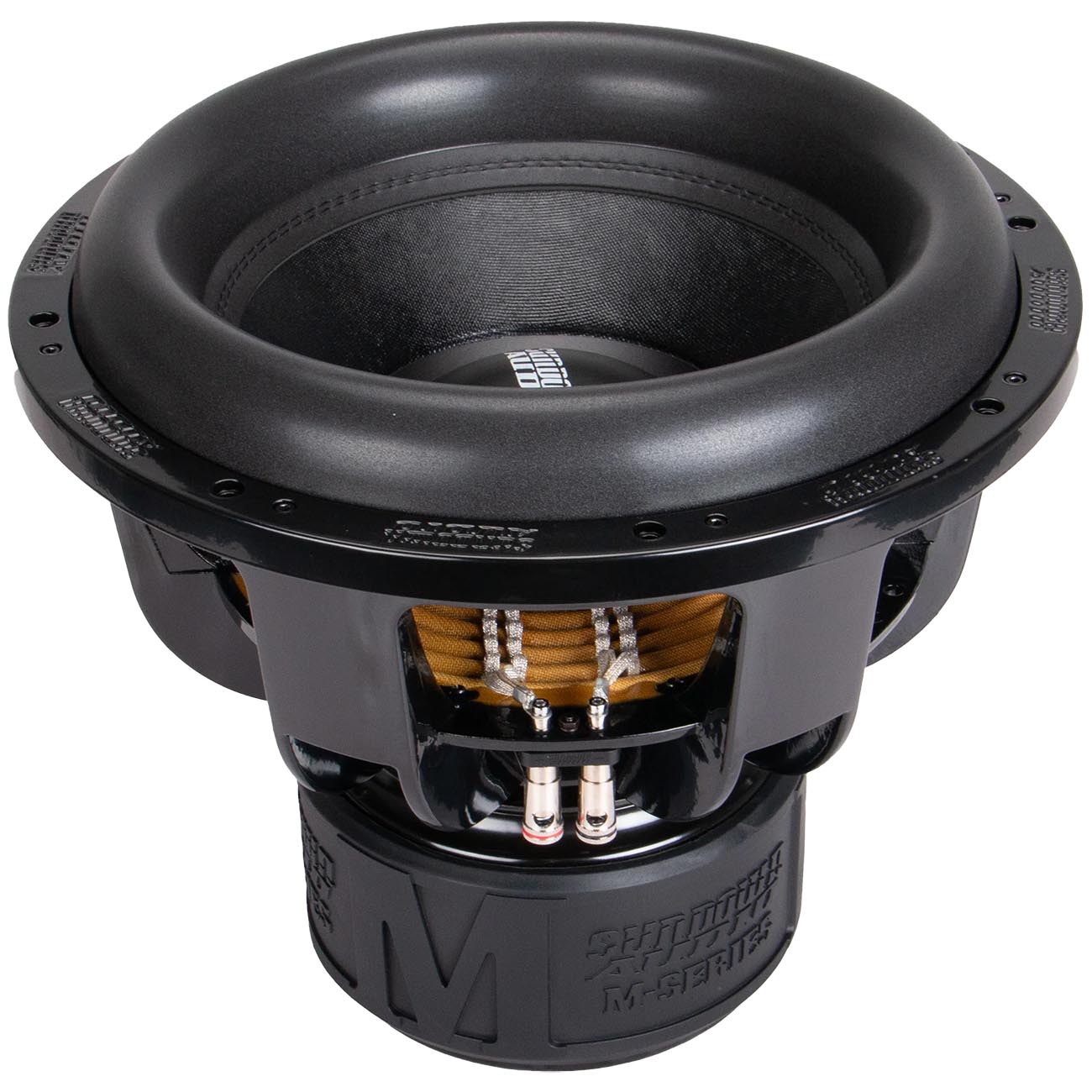

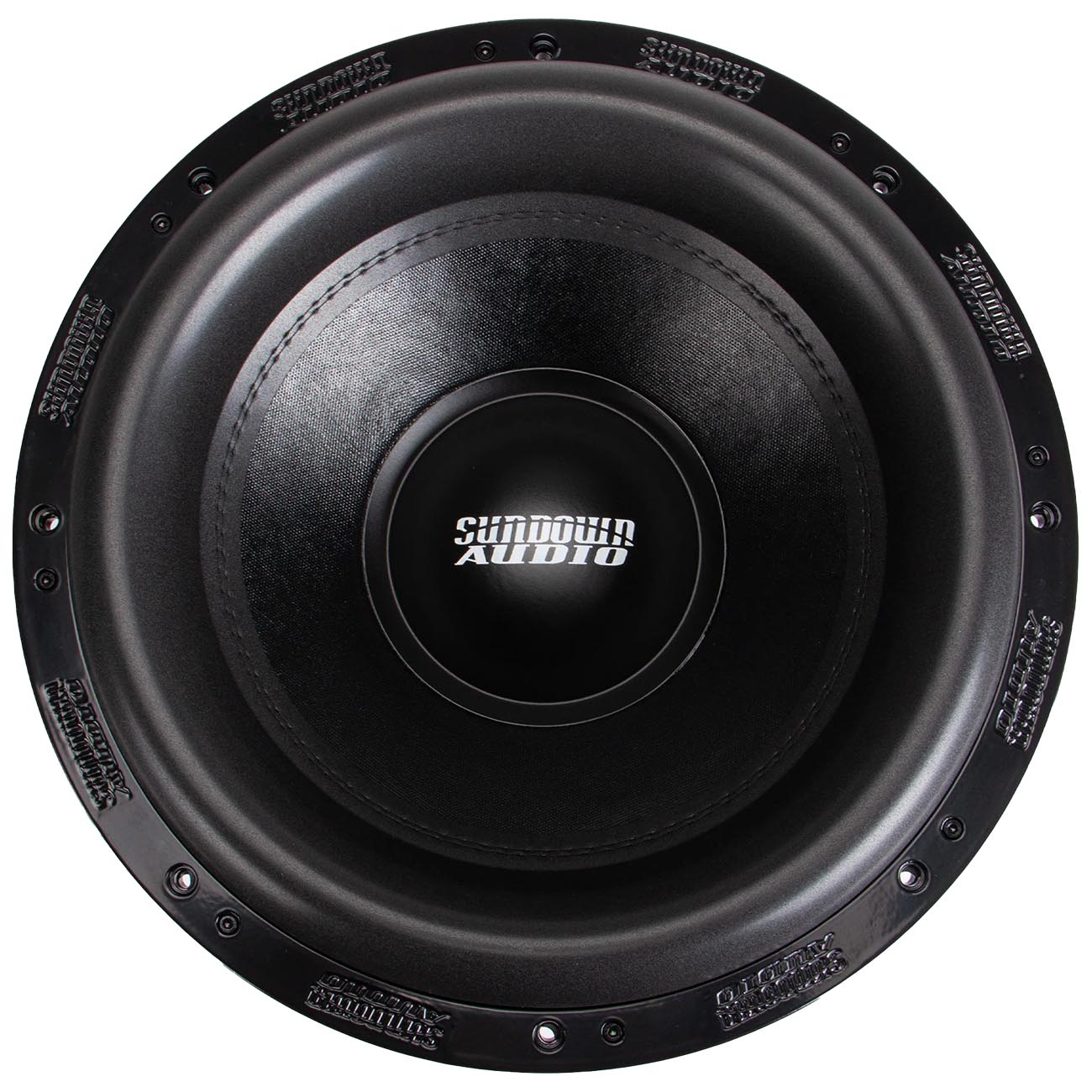

Sundown Audio 15″ Woofer, 2000W RMS/4000W MAX, Dual 1 Ohm Voice Coils
2000W RMS
4000W MAX
Dual 1 Ohm Voice Coils
Laser-Etched All Black Backplate
Quad Stack Magnet Structure
Treated Paper Cone
Mega Roll Surround
Special M-series magnet boot design
Features hyper-extended pole and extreme clearances
Includes special winding density in the gap
Highly efficient high-stroke coil ventilation system
High-velocity pole vent, a heavily vented magnetic gap
Proprietary high-velocity cast-aluminum frame-base venting system
Magnet inner-diameter aluminum shorting ring
3″ High Temperature Aluminum Voice coil
4-Layer voice coil wound on a thick aluminum former
Xmax: 35mm
Made with proprietary Sundown PG linear suspension (fully computer optimized)
Mount Depth: 12.06″
Not Recommended for Sealed Enclosure
Ported Enclosure: 4.25 cu ft
Recommended Tuning: 32Hz
Recommended Port Area: 68 sq in
4th Order Sealed Side: 2.0 cu ft
4th Order Ported Side: 6.0 cu ft
4th Order Port Area: 120 sq in
4th Order Port Length: 8″
Displacement: 0.23 cu ft
Outside Diameter: 15.51″
Cut-Out: 13.93″
Sold Individually
