4 x 325 Watts RMS @ 2 Ohms
4 x 200 Watts RMS @ 4 Ohms
2 x 700 Watts RMS @ 4 Ohms (Bridged)
(W x H x D) 6.85″ x 2.66″ x 11.82″
Recommended Fuse: 120 Amp (NOT Included)

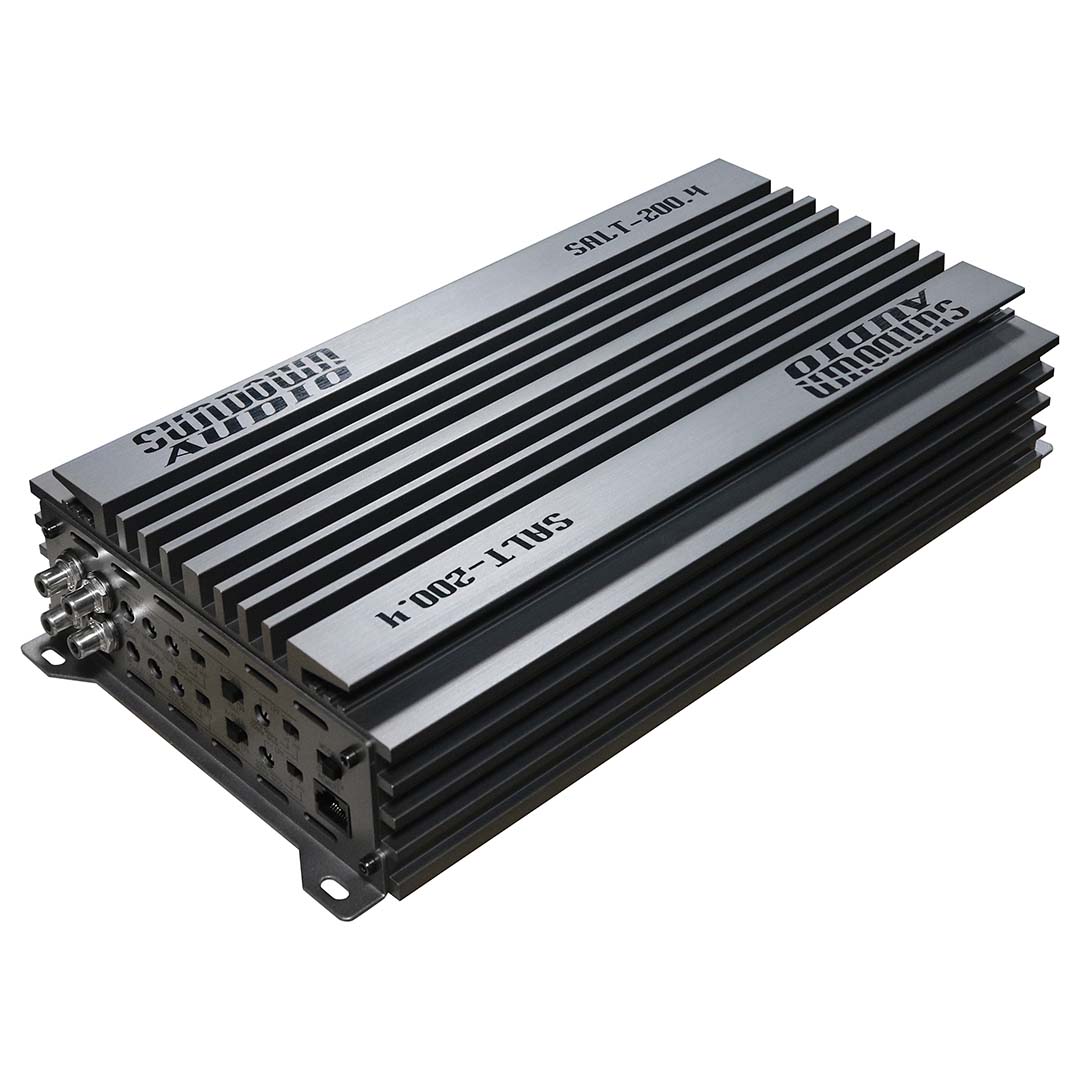

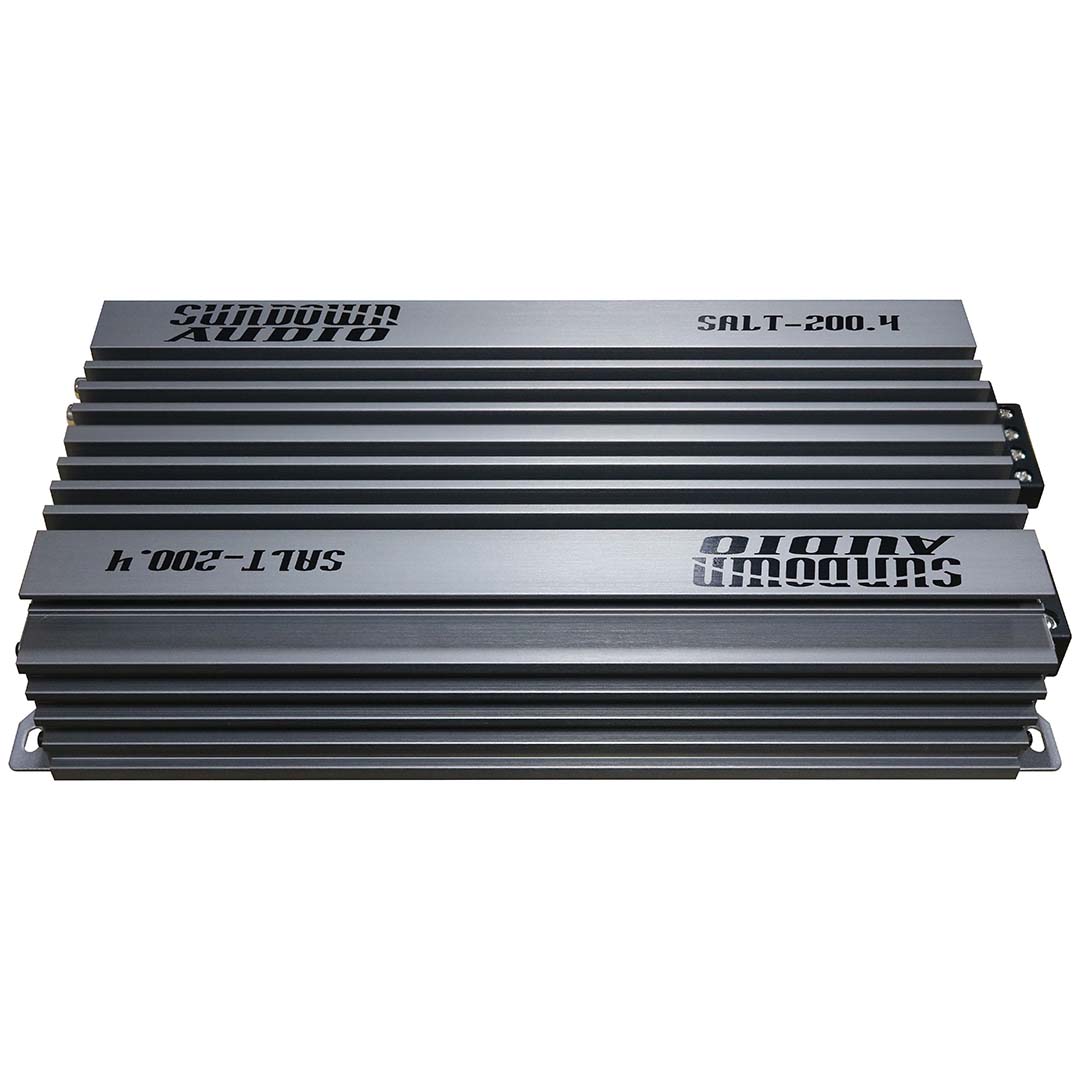

Full Range Class-D 4 Channel Amplifier
2 Ohm Stable
Subsonic Filter: 10 – 500Hz
Crossover Multiplier (x10) – 12dB/Octave
High Pass Filter: 50 – 500Hz (500 – 5kHz @ 10X)
Low Pass Filter: 50 – 500Hz (500 – 5kHz @ 10X)
Frequency Response: 10 – 25000 Hz
RCA Inputs
Efficiency: 70% (4 Ohm @ 100Hz)
S/N Ratio: < 90dB
Protection: Thermal, Voltage, Short & DC Offset
LED Indicators: Power, Protect, Clipping
