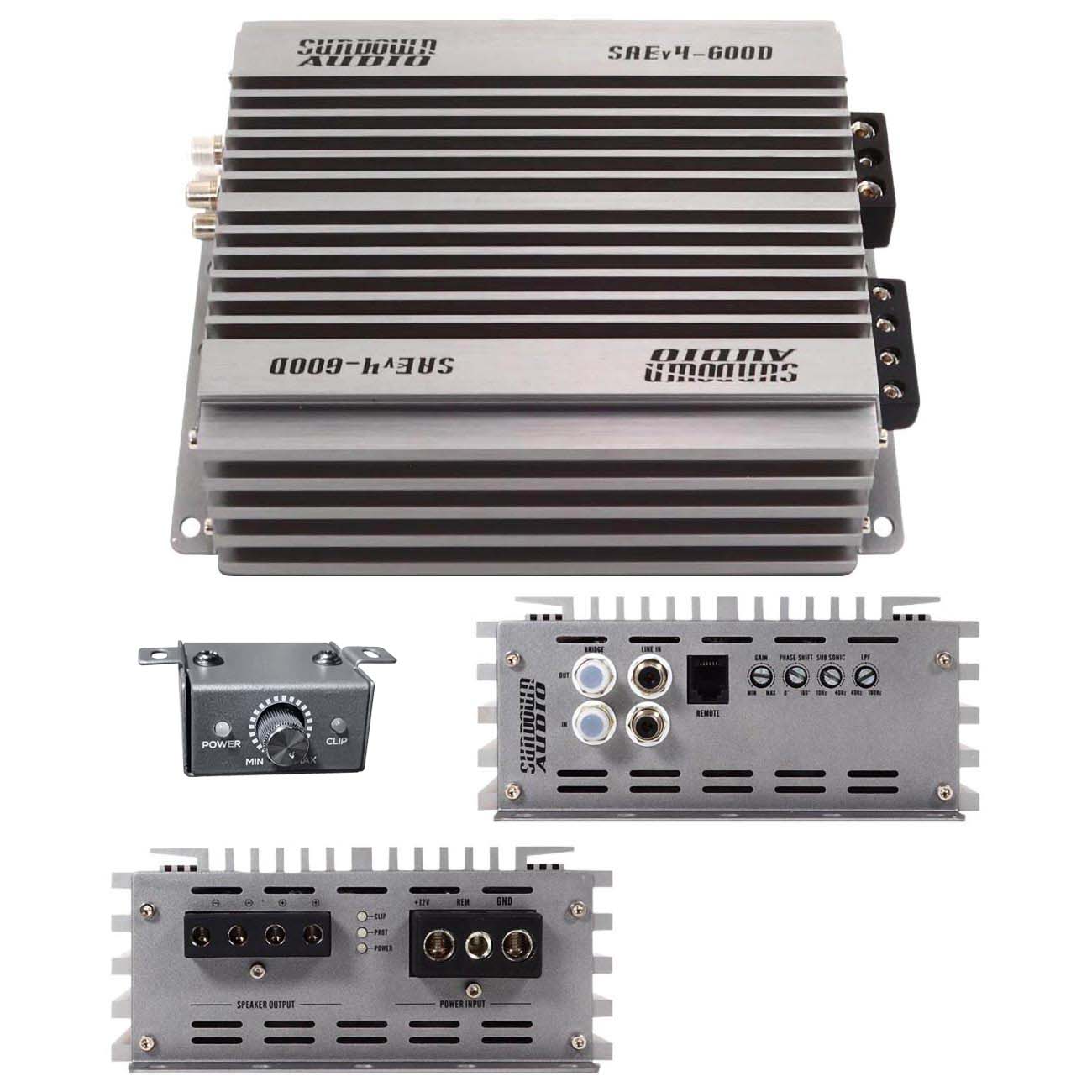

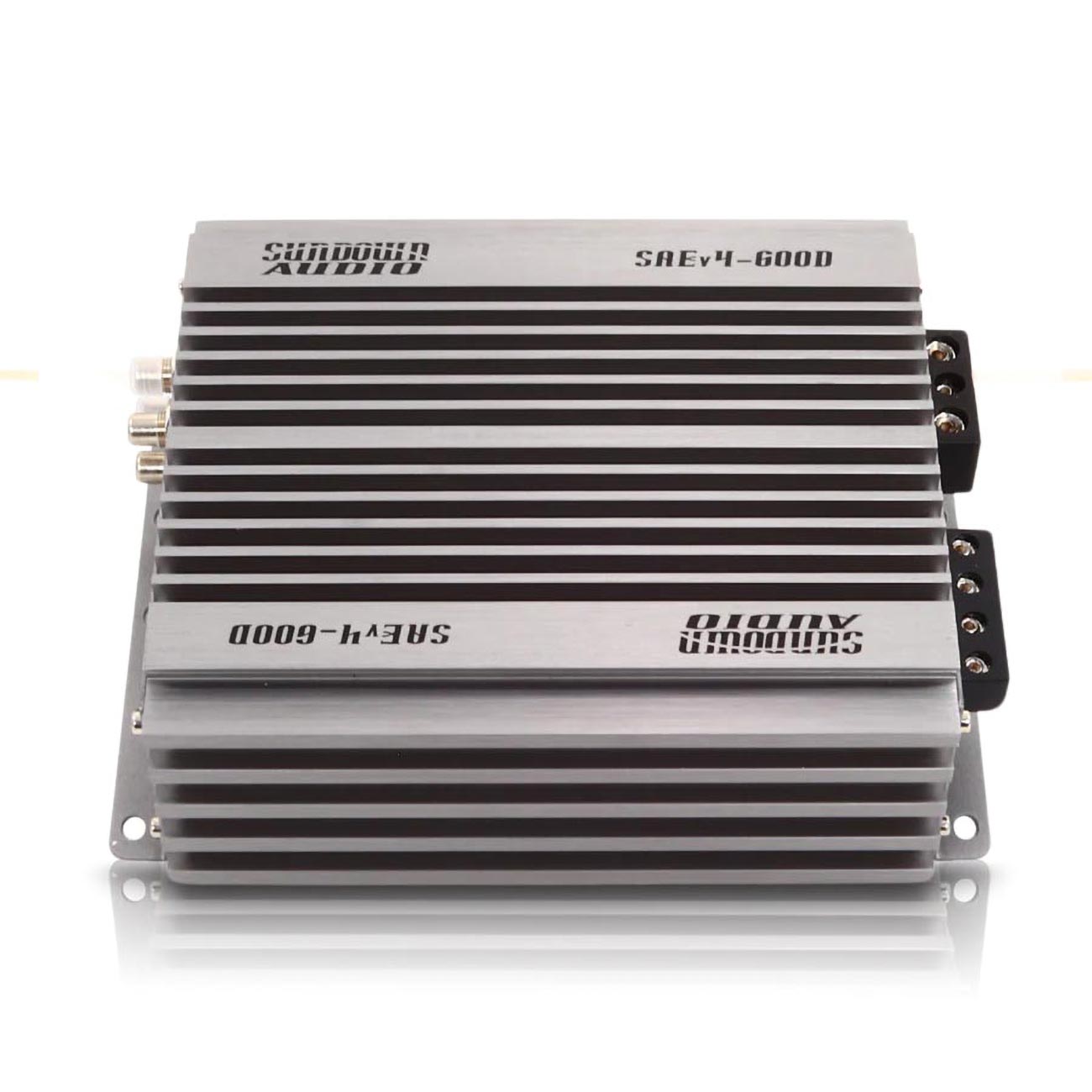

Sundown Audio SAE Version 4 – Digital Class-D Mono Block Amplifier – 600W RMS
Dual MOSFET PWM Power Supplies
1 x 600 Watts RMS @ 1 Ohm
1 x 450 Watts RMS @ 2 Ohms
1 x 250 Watts RMS @ 4 Ohms
(W x H x D) 6.3″ x 2.75″ x 10″
1-Ohm Stable
Low Pass Filter: 40 – 180 Hz (12dB/Octave)
Subsonic Filter: 10 – 40Hz (12 dB/Octave)
Phase Control
S/N Ratio: 92dB

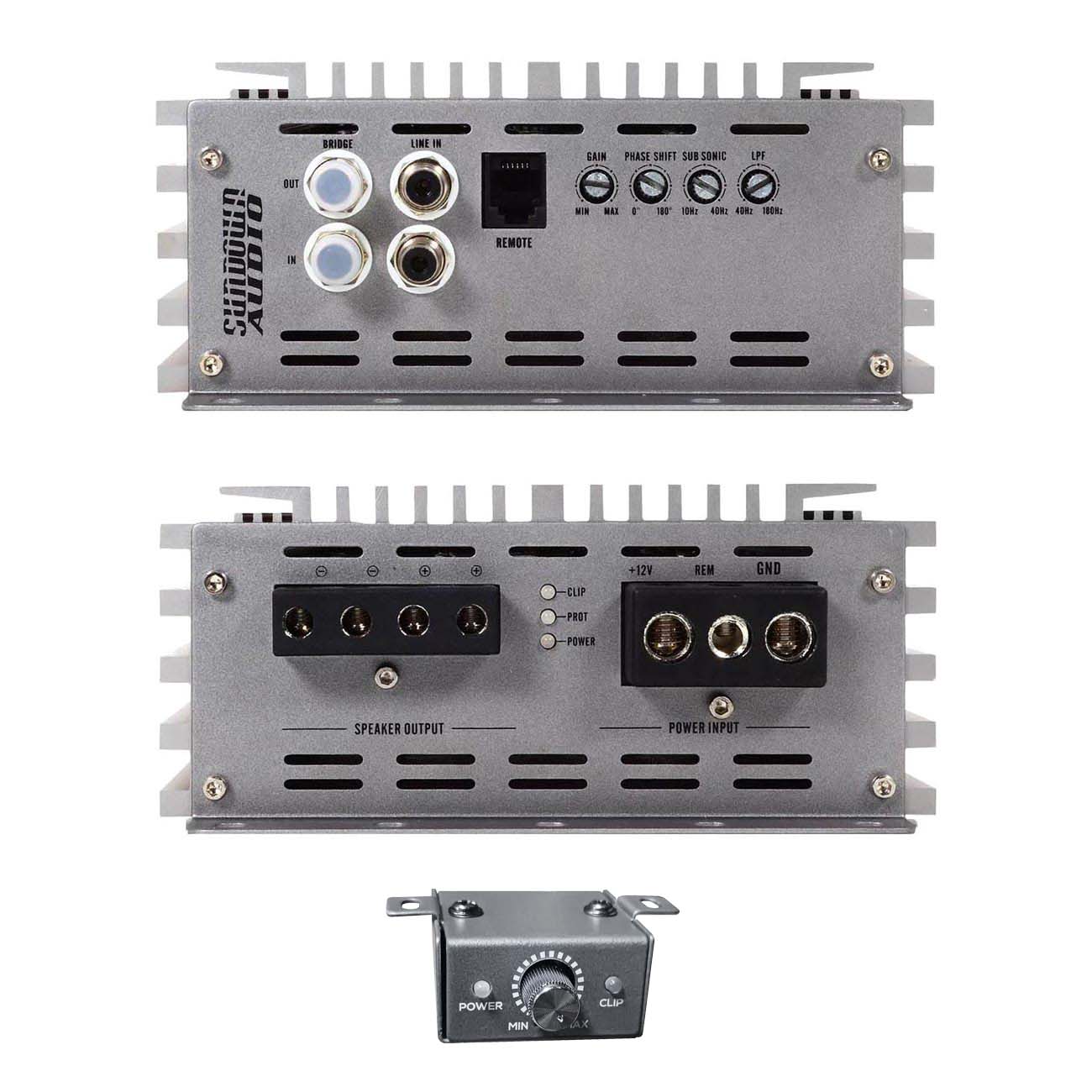

RCA Inputs
RCA Bridge In/Outputs
4-Way Protection (Thermal, Voltage, Short & DC Offset)
Clipping, Power & Protect LED Indicators
Wired Remote Control with Clipping Indicator
Soft Turn-On Circuit
Remote On/Off Circuit
Working Voltage: 10.5V – 15.5VDC
Recommended: 60A Fuse and Fuse Holder – NOT Included
The Sundown Audio SAEv4-600D is a simple, powerful upgrade for any car audio enthusiast seeking superior sound quality and reliability. This high-performance half-bridge class D amplifier ensures powerful, detailed output. The variable phase, lowpass, and subsonic filters provide the control you need – for the sound you love.

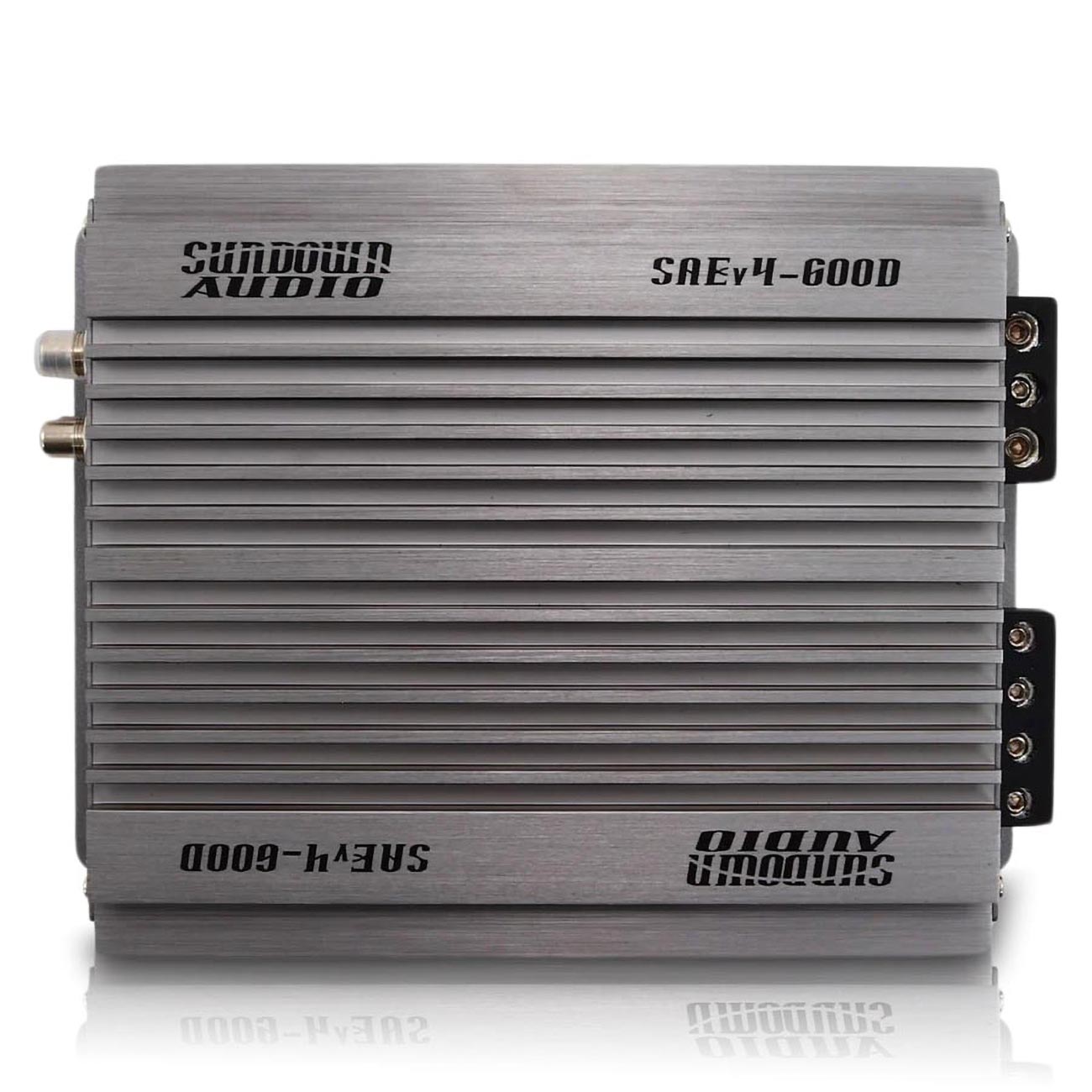

Featuring robust protection circuitry against thermal, voltage, speaker short, and DC-offset issues, along with power and protection indicators, this amplifier guarantees long-lasting durability, while the heavy aluminum heat sink enhances thermal control, preventing overheating during extended use. The included wired remote with clipping indicator provides real-time monitoring and output control!
