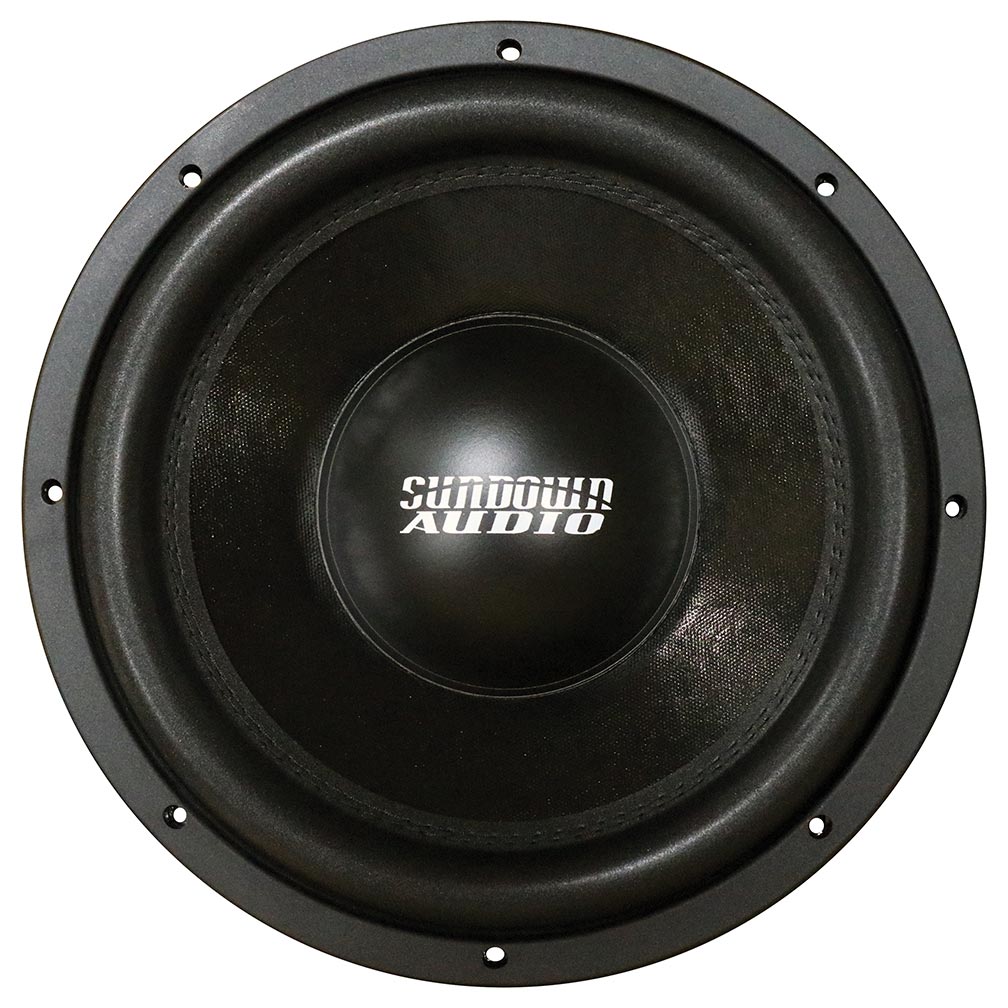

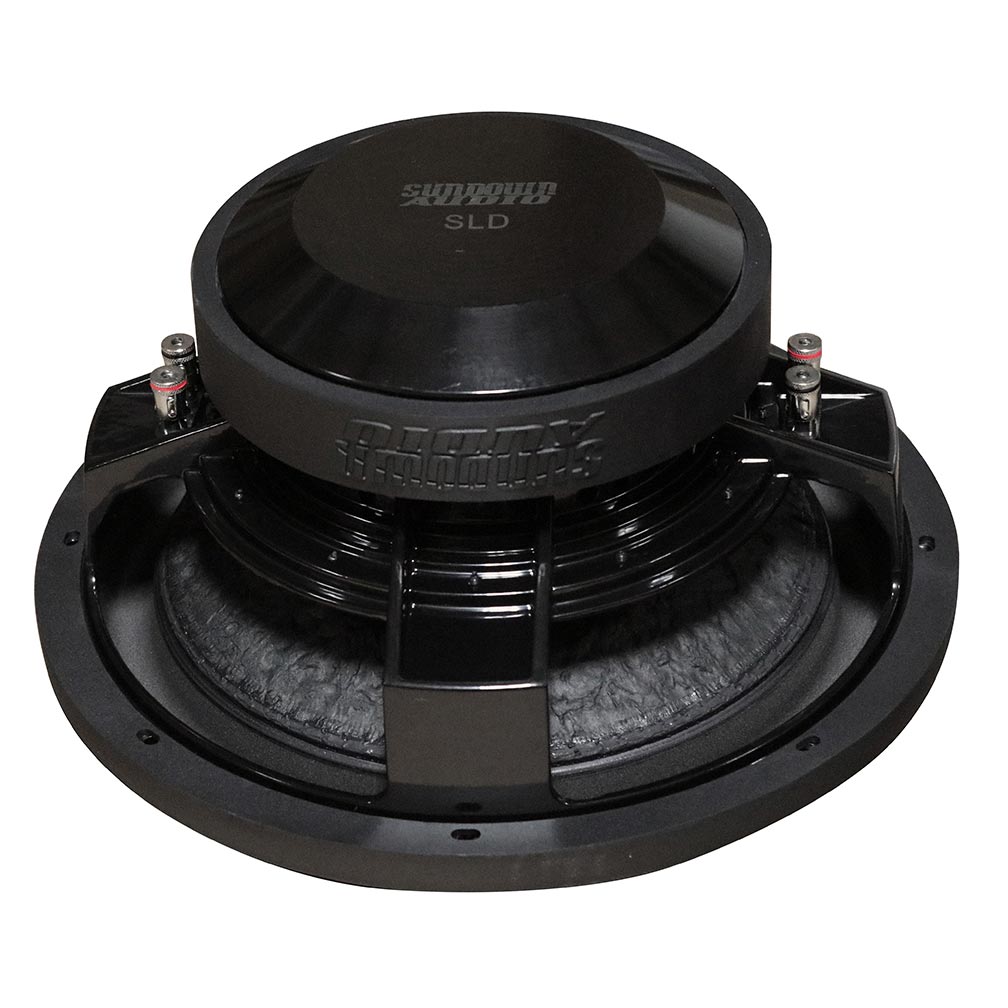

Sundown Audio 12″ Shallow Mount Woofer, 600W RMS/1200W MAX, Dual 4 Ohm Voice Coil
1200W MAX
600W RMS
Dual 4 Ohm Voice Coils
Tuning: 35 Hz
Xmax = 12mm one-way by 70% BL
Black Aluminum 2.5” voice coil former for superior heat dissipation
High Temperature 4-Layer copper voice coil wire
Stitched-On “Mini-XL” Tinsel Leads to prevent fatigue and failure
Solid Pole with vent channels around the OD
Stitched Surround
Magnet ID shorting ring
Spring Loaded Terminals
Cast Aluminum Basket
Sundown’s highest-power slim subwoofers, the SLD takes incredibly high volume by introducing numerous important upgrades: pole-piece channels for reduced air noise & increased cooling, top-plate “slits” for better cooling and less distortion, and a magnet shorting ring. Sundown also bolted down the spider, bolted the motor together, bolted on the aluminum pole cap, and added “mini-XL” lead wires for years of flawless service.
Mount Depth: 5.5″
Displacement (Inches): 1.5 cu ft
Motor Diameter (Inches): 7.4
Ported Enclosure Size: 1.5 cu ft
Recommended Port Area: 20 sq in
Recommended Port Tuning: 35 hz
Sealed Enclosure Size: 1.0 cu ft
Sold Individually
