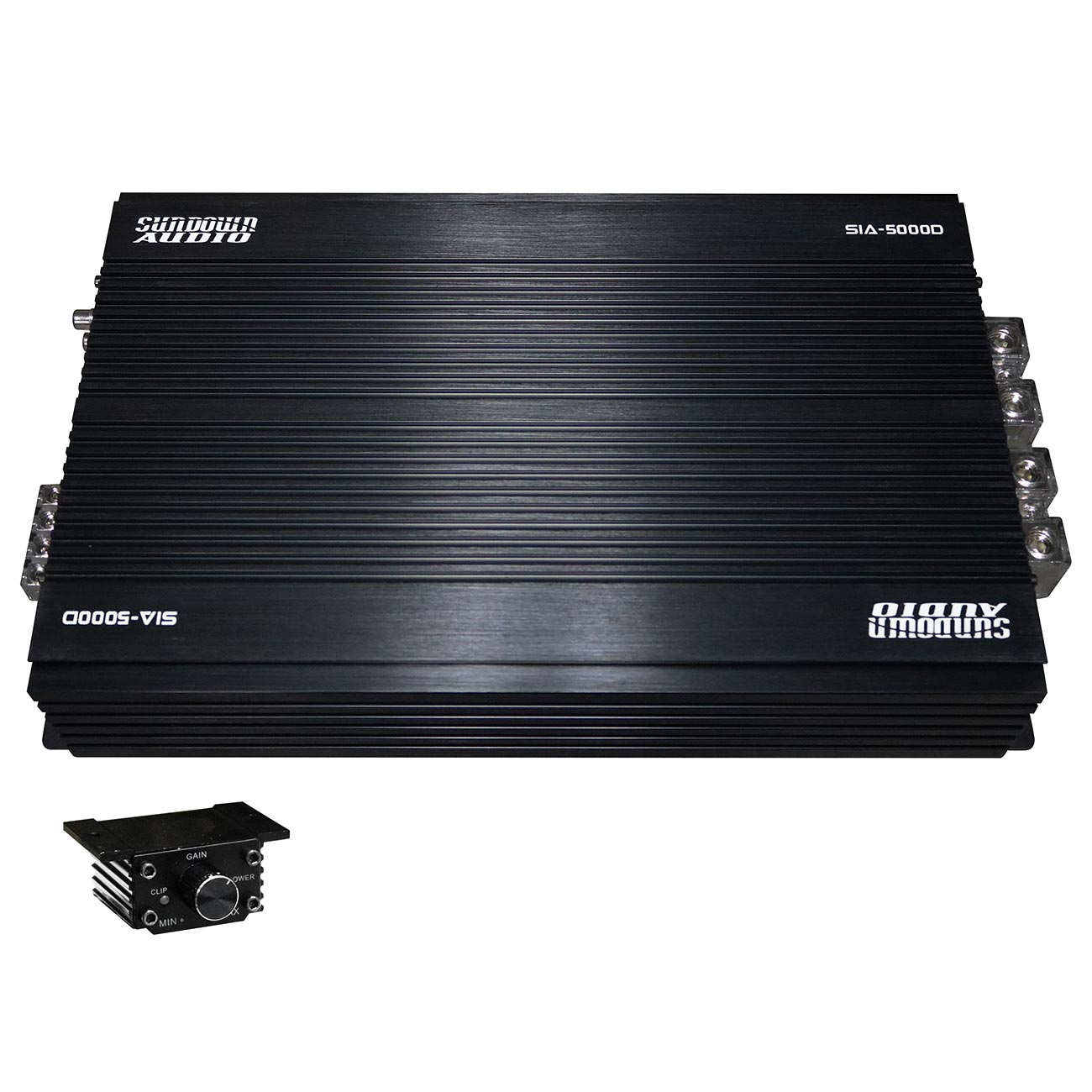

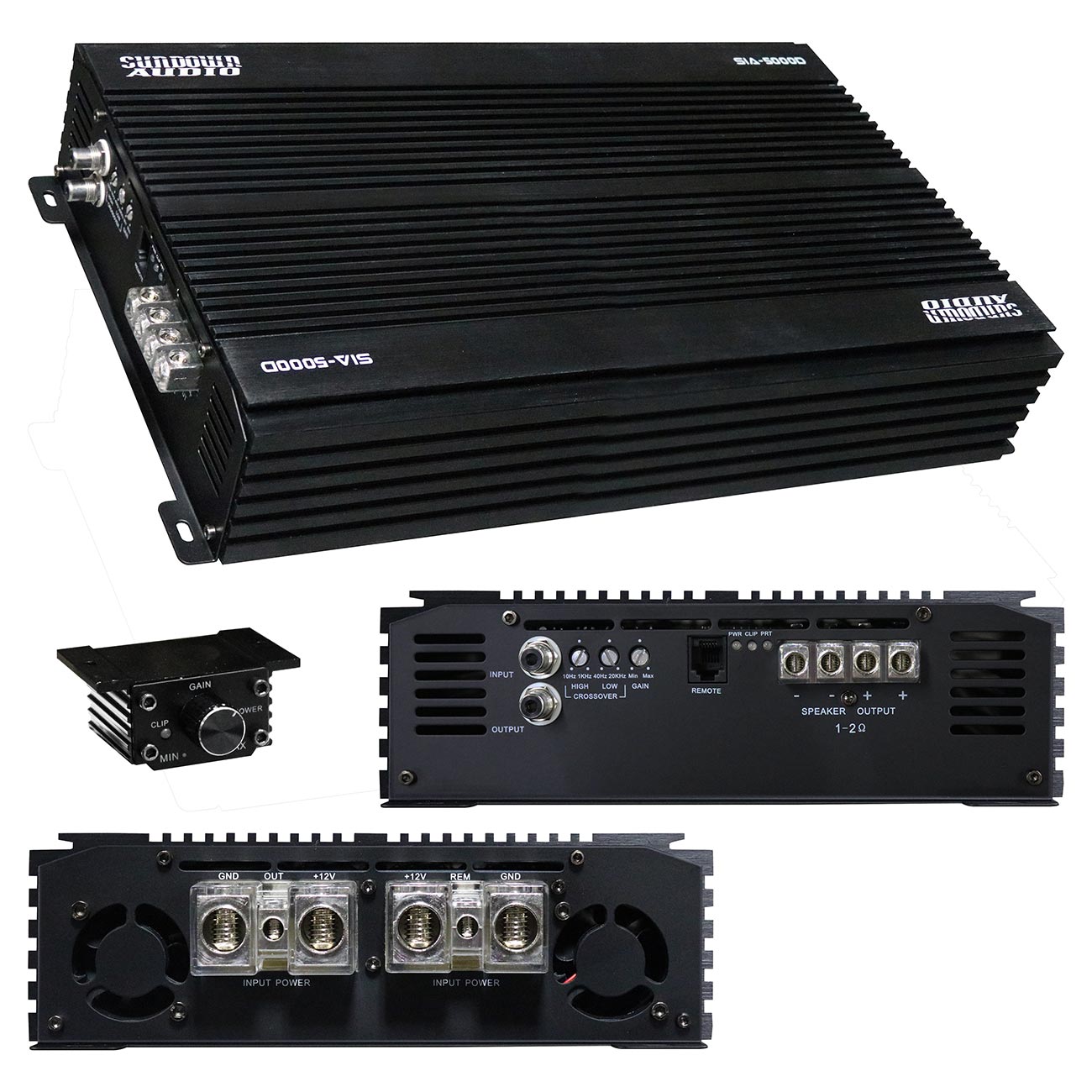

Sundown Audio Smart Full Range Monoblock Amplifier, 5000 Watts RMS
1 x 5000 Watts RMS @ 1 Ohm (14.4VDC)
1 x 4950 Watts RMS @ 2 Ohms (14.4VDC)
1 x 3400 Watts RMS @ 4 Ohms (14.4VDC)
(W x H x D) 8.9” x 2.44” x 13.9”
1 Ohm Stable
Digital Class-D Mono Block Amplifier
Dual MOSFET PWM Power Supply
Low Pass Filter: 40 – 20,000 Hz (12dB/Octave)
High Pass Filter: 10 – 1000 Hz (12dB/Octave)
Bass Boost: 0 – 12 dB @ 50 Hz
Input Sensitivity: 5V Max
Single Noise Ratio: 108dB
Working Voltage: 10.5V – 15.5V DC
RCA In/Outputs
Smart Thermal Management: 3-Speed Cool Fan (Temperature or Audio Controlled)
4-Way Protection (Thermal, Hi & Low Voltage, Short )
Intelligent low voltage technology protecting the amplifier from typical full bridge malfunction
Remote Gain Control with Clipping Indicator
Recommended Fuse (2 x 220A) and Fuses/Fuse Holders NOT Included
