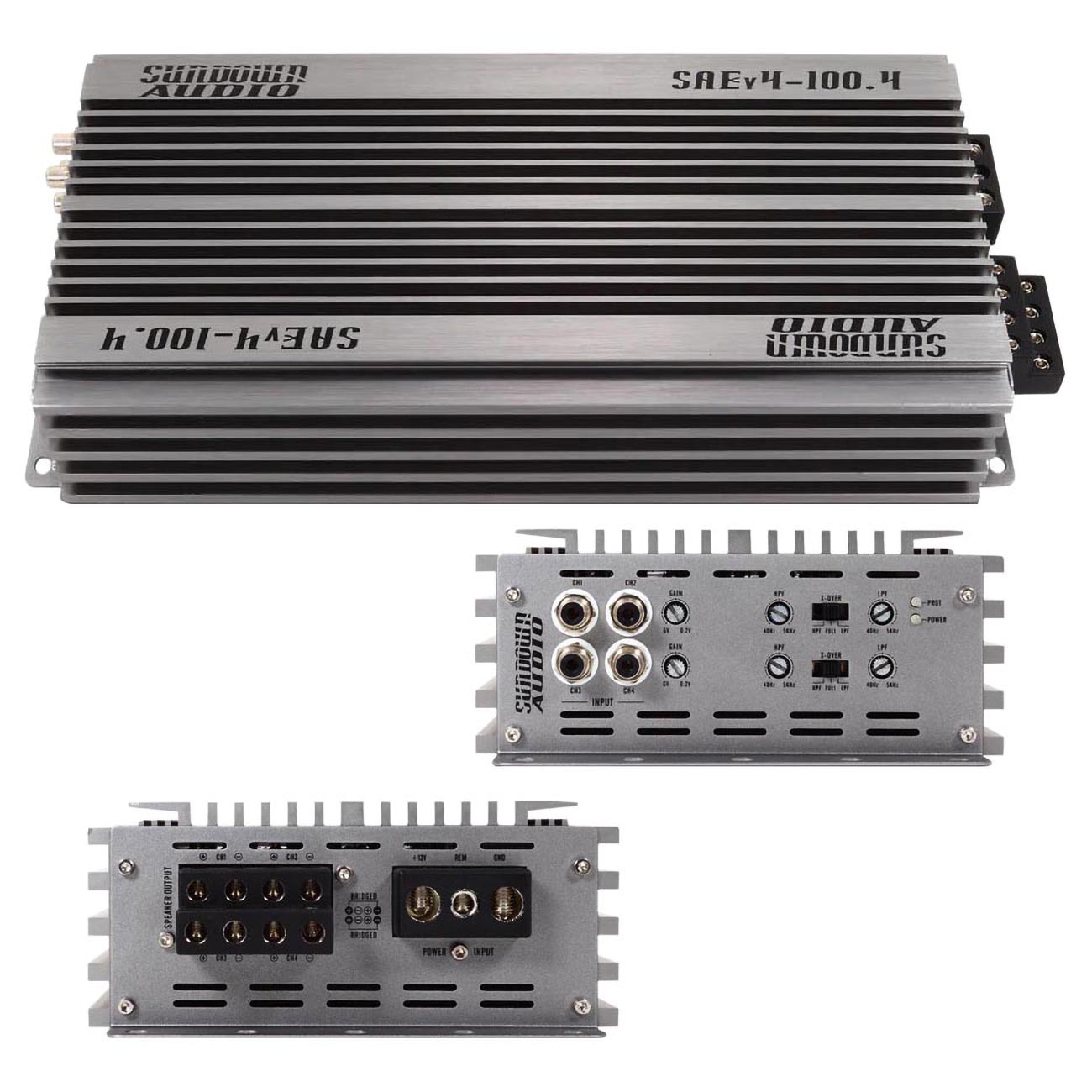

Sundown Audio SAE Version 4 – 4-Channel Class-A/B Amplifier – 500W RMS
MOSFET PWM Power Supply
4 x 125 Watts RMS @ 2 Ohms
4 x 100 Watts RMS @ 4 Ohms
(W x H x D) 6.3″ x 2.75″ x 14.9″
2-Ohm Stable
Low Pass Filter: 50 – 250 Hz (12 dB/Octave)
High Pass Filter: 50 – 3000 Hz (12 dB/Octave)
Gain Control: 0.2V – 6.0V
S/N Ratio: 92dB
RCA Inputs
Clipping, Power & Protect LED Indicators
4-Way Protection (Thermal, Voltage, Short & DC Offset)
Soft Turn-On Circuit
Remote On/Off Circuit
Working Voltage: 10.5V – 15.5VDC
Fuse & Holder NOT Included
Optional Wired Remote with Clipping LED Indicator NOT Included
