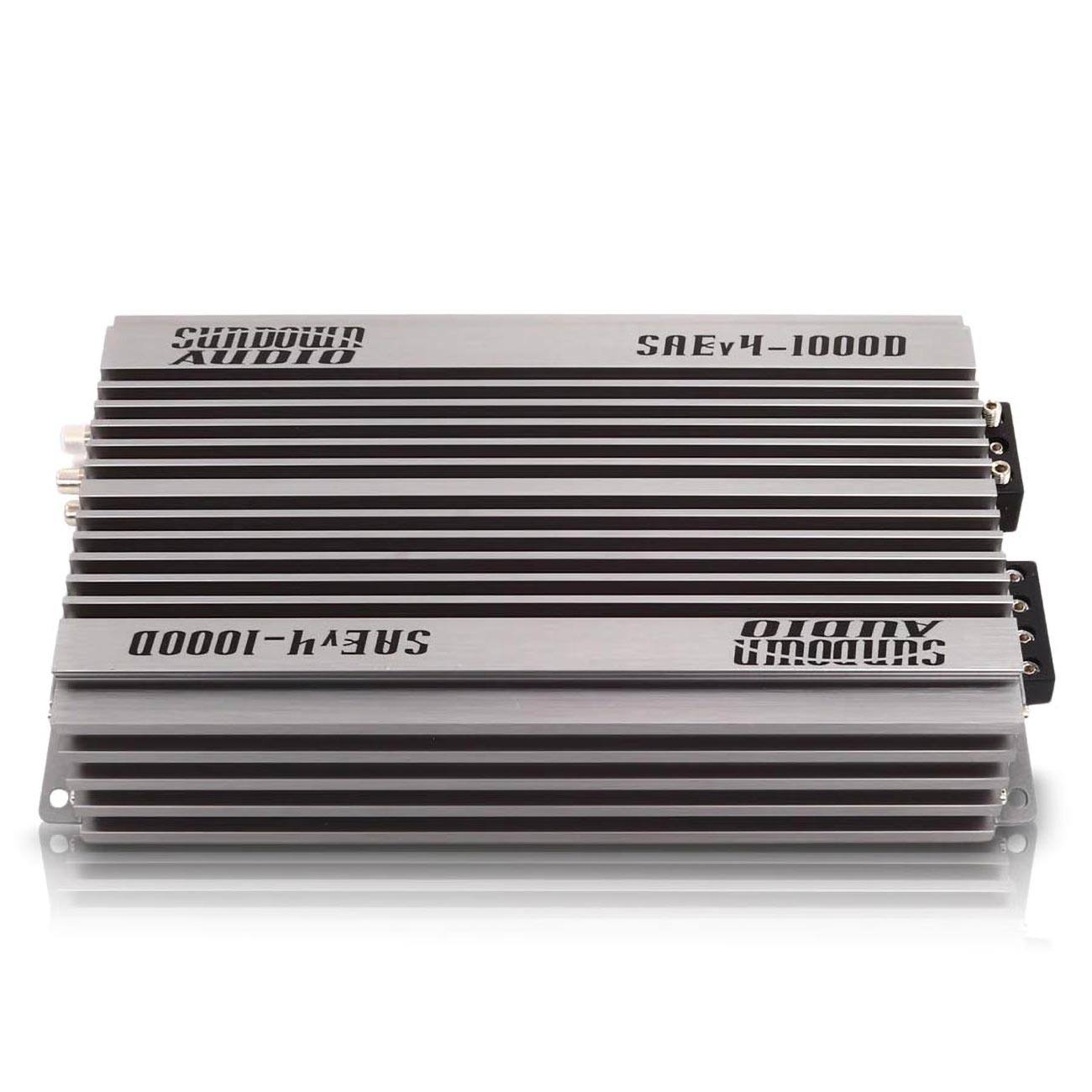

Sundown Audio SAE Version 4 – Digital Class-D Mono Block Amplifier – 1000W RMS
Dual MOSFET PWM Power Supplies
1 x 1000 Watts RMS @ 1 Ohm
1 x 650 Watts RMS @ 2 Ohms
1 x 375 Watts RMS @ 4 Ohms
(W x H x D) 6.3″ x 2.75″ x 12.5″
1-Ohm Stable
Low Pass Filter: 40 – 180 Hz (12dB/Octave)
Subsonic Filter: 10 – 40Hz (12 dB/Octave)
Phase Control
S/N Ratio: 92dB
RCA Inputs
RCA Bridge In/Outputs
4-Way Protection (Thermal, Voltage, Short & DC Offset)
Power & Protect LED Indicators
Wired Remote Control with Clipping Indicator
Soft Turn-On Circuit
Remote On/Off Circuit
Working Voltage: 10.5V – 15.5VDC
Recommended: 100A Fuse and Fuse Holder – NOT Included
